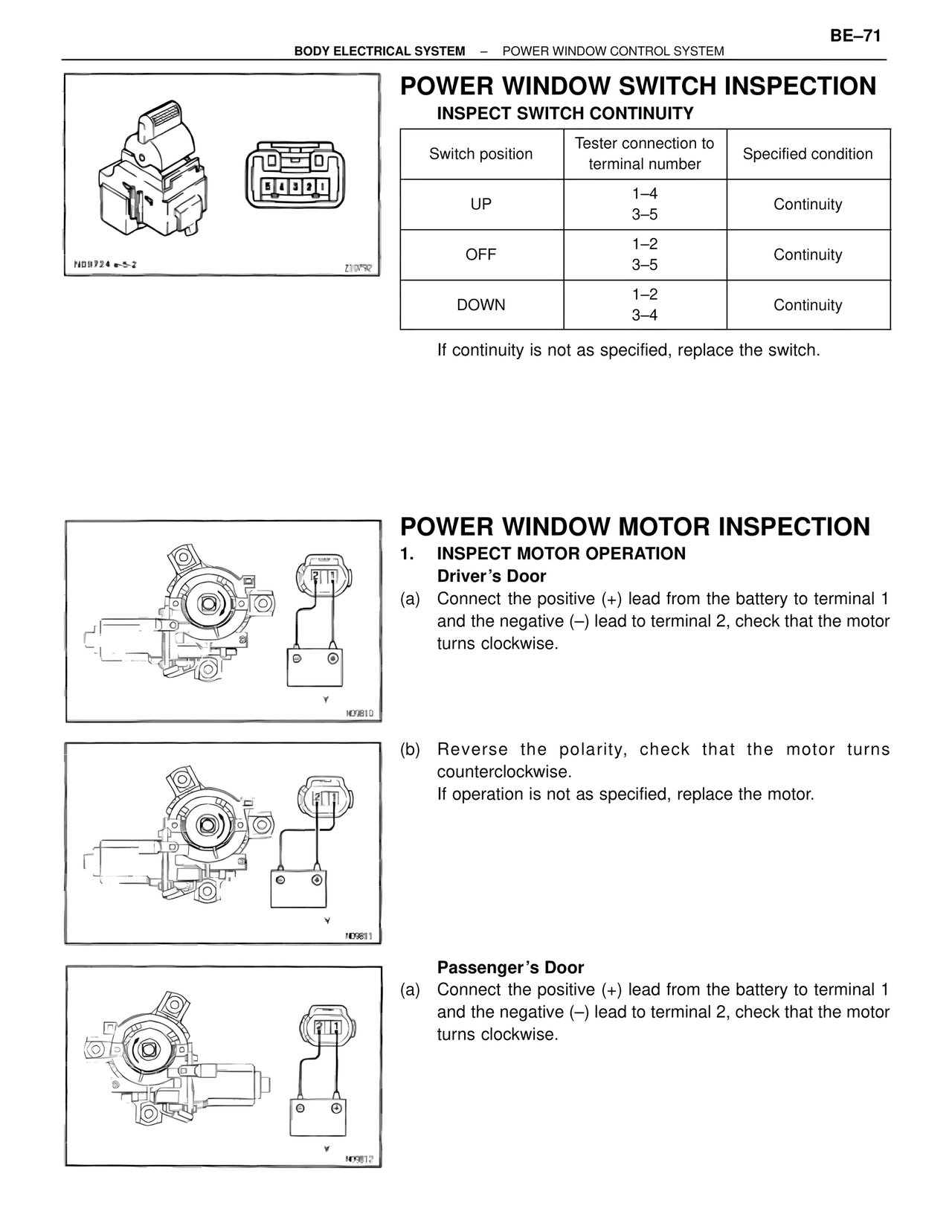

BODY ELECTRICAL SYSTEM – POWER WINDOW CONTROL SYSTEM
BE–71
POWER WINDOW SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
UP | 1–4 | Continuity
| 3–5 |
OFF | 1–2 | Continuity
| 3–5 |
DOWN | 1–2 | Continuity
| 3–4 |
If continuity is not as specified, replace the switch.
ND9724 e-5-2
Z10792
POWER WINDOW MOTOR INSPECTION
1. INSPECT MOTOR OPERATION
Driver's Door
(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (–) lead to terminal 2, check that the motor turns clockwise.
ND9810
(b) Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
ND9811
Passenger's Door
(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (–) lead to terminal 2, check that the motor turns clockwise.
ND9812
