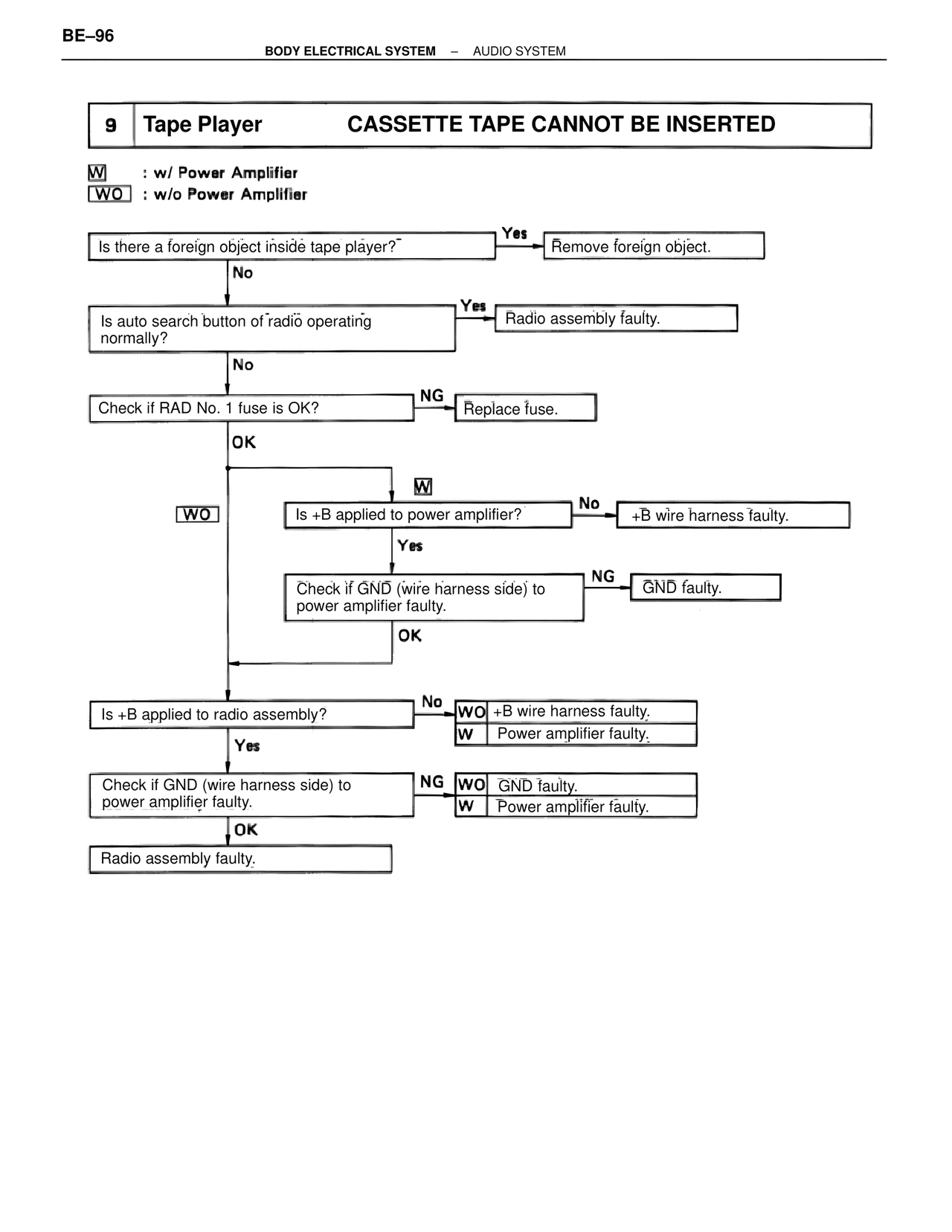

BE/Body Electrical Systems — Cassette Tape Cannot Be Inserted, page 96

BE–96
BODY ELECTRICAL SYSTEM – AUDIO SYSTEM

9    Tape Player         CASSETTE TAPE CANNOT BE INSERTED

W  : w/ Power Amplifier
WO : w/o Power Amplifier

Is there a foreign object inside tape player?
Yes → Remove foreign object.
No
↓
Is auto search button of radio operating normally?
Yes → Radio assembly faulty.
No
↓
Check if RAD No. 1 fuse is OK?
NG → Replace fuse.
OK
↓
                              W
                    Is +B applied to power amplifier?
                    No → +B wire harness faulty.
                    Yes
                    ↓
                    Check if GND (wire harness side) to power amplifier faulty.
                    NG → GND faulty.
                    OK
WO ↙
↓
Is +B applied to radio assembly?
No → WO  +B wire harness faulty.
         W   Power amplifier faulty.
Yes
↓
Check if GND (wire harness side) to power amplifier faulty.
NG → WO  GND faulty.
        W   Power amplifier faulty.
OK
↓
Radio assembly faulty.
