BO
/
Body Mechanical
20 / 64
p.021 →
−
100%
+

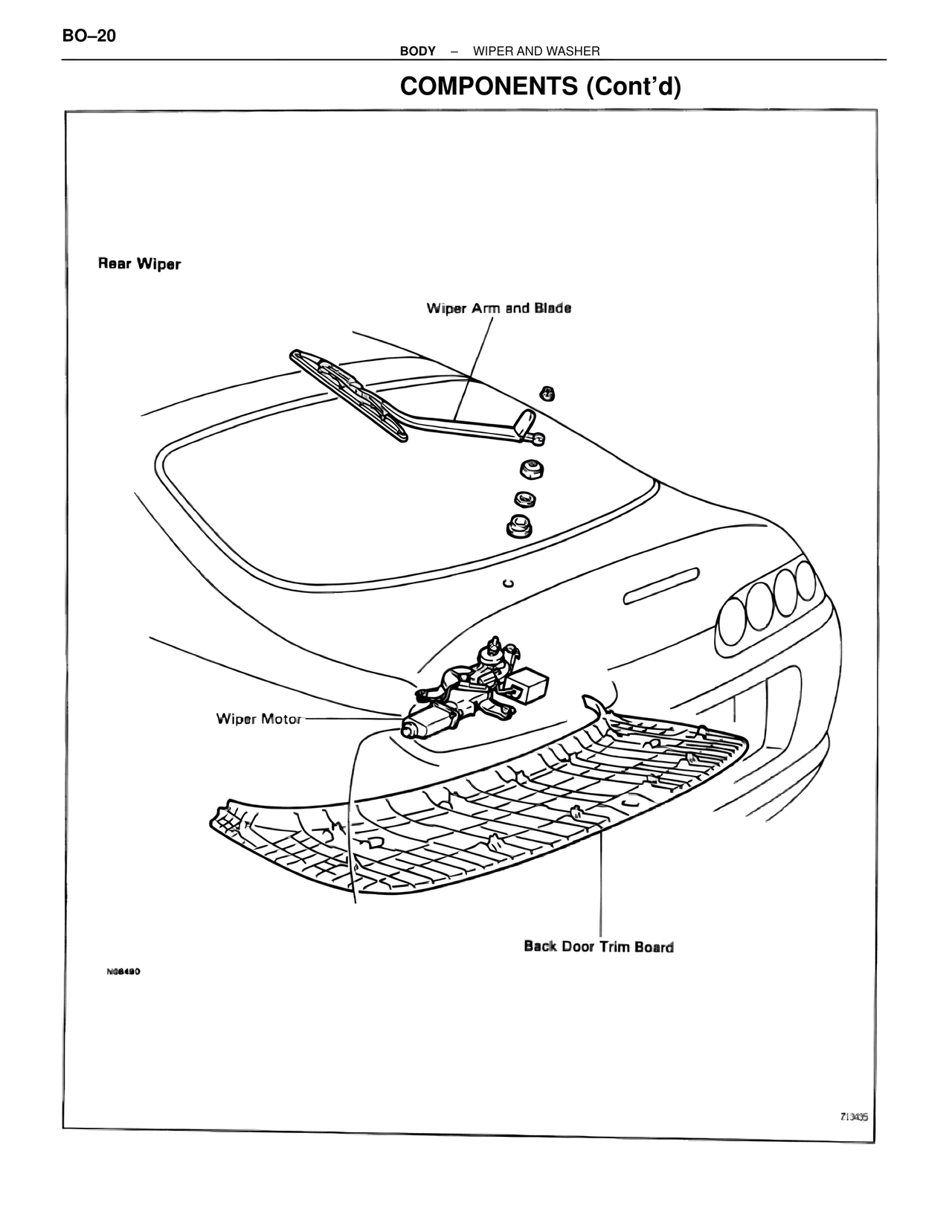

BO–20 BODY – WIPER AND WASHER COMPONENTS (Cont'd) Rear Wiper Wiper Arm and Blade Wiper Motor Back Door Trim Board N98490 Z13405
