← p.024
BO
/
Body Mechanical
25 / 64
p.026 →
−
100%
+

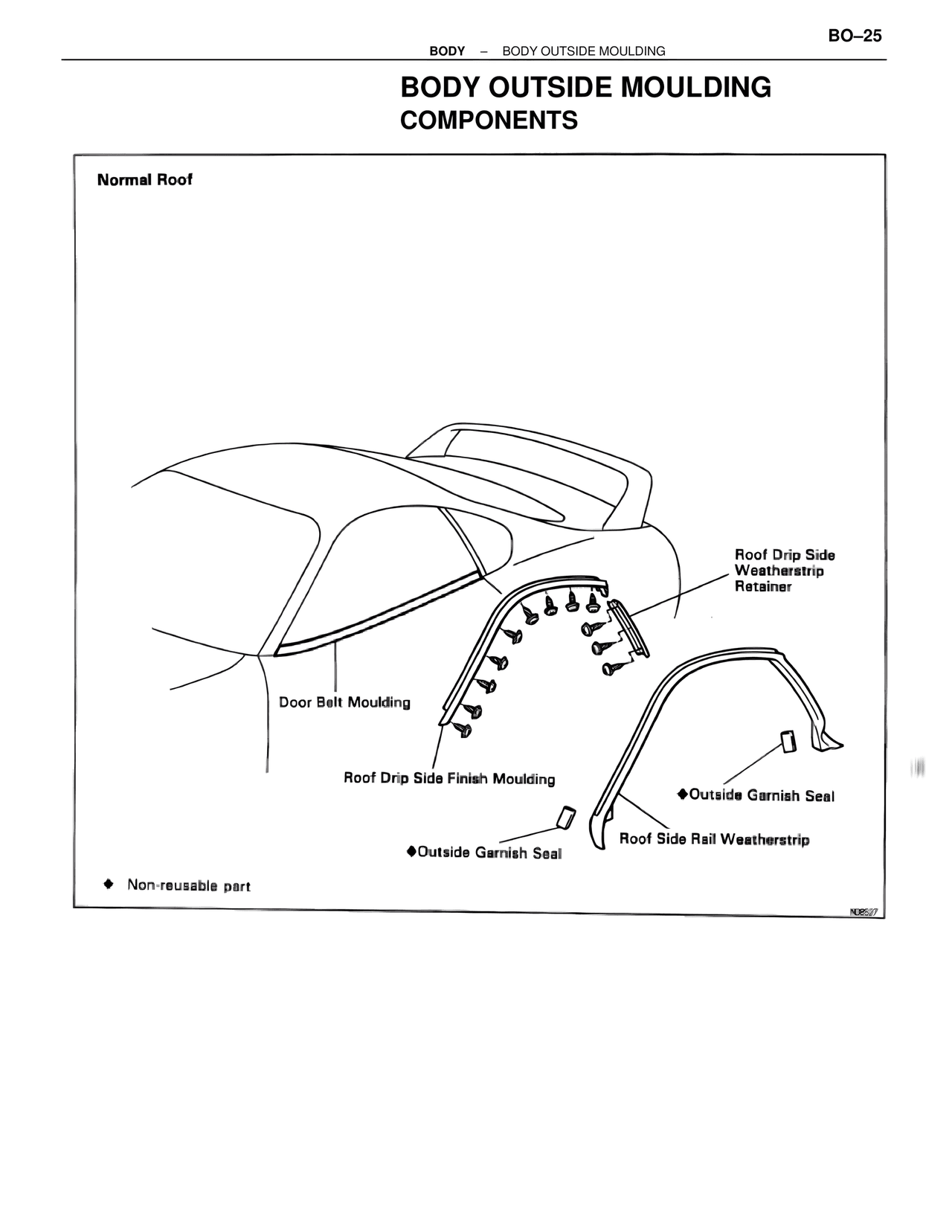

BODY OUTSIDE MOULDING COMPONENTS Normal Roof Roof Drip Side Weatherstrip Retainer Door Belt Moulding Roof Drip Side Finish Moulding ♦Outside Garnish Seal ♦Outside Garnish Seal Roof Side Rail Weatherstrip ♦ Non-reusable part N08527
