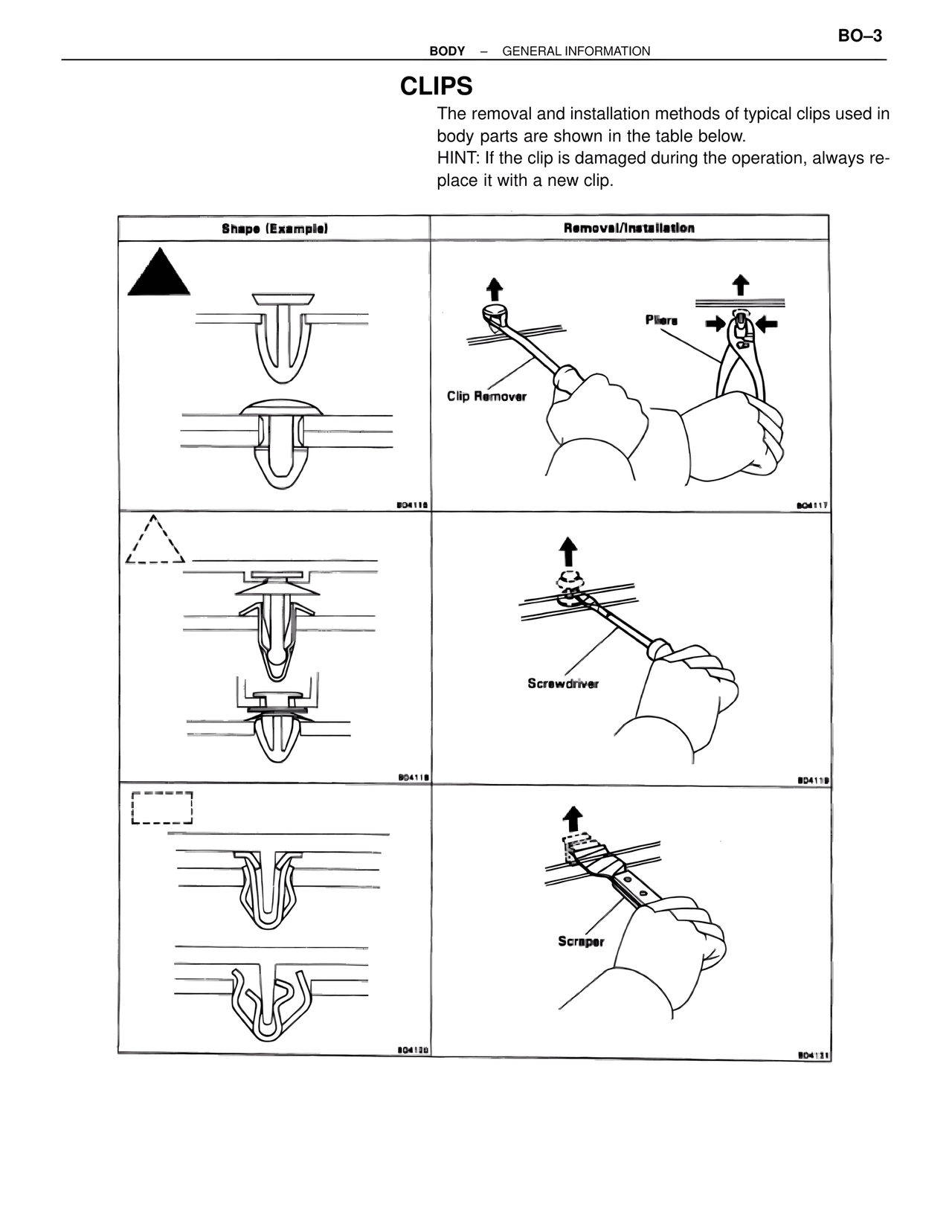

BODY – GENERAL INFORMATION BO–3 CLIPS The removal and installation methods of typical clips used in body parts are shown in the table below. HINT: If the clip is damaged during the operation, always replace it with a new clip. Shape (Example) Removal/Installation BO4118 Clip Remover Pliers BO4117 BO4118 Screwdriver BO4119 BO4120 Scraper BO4121
