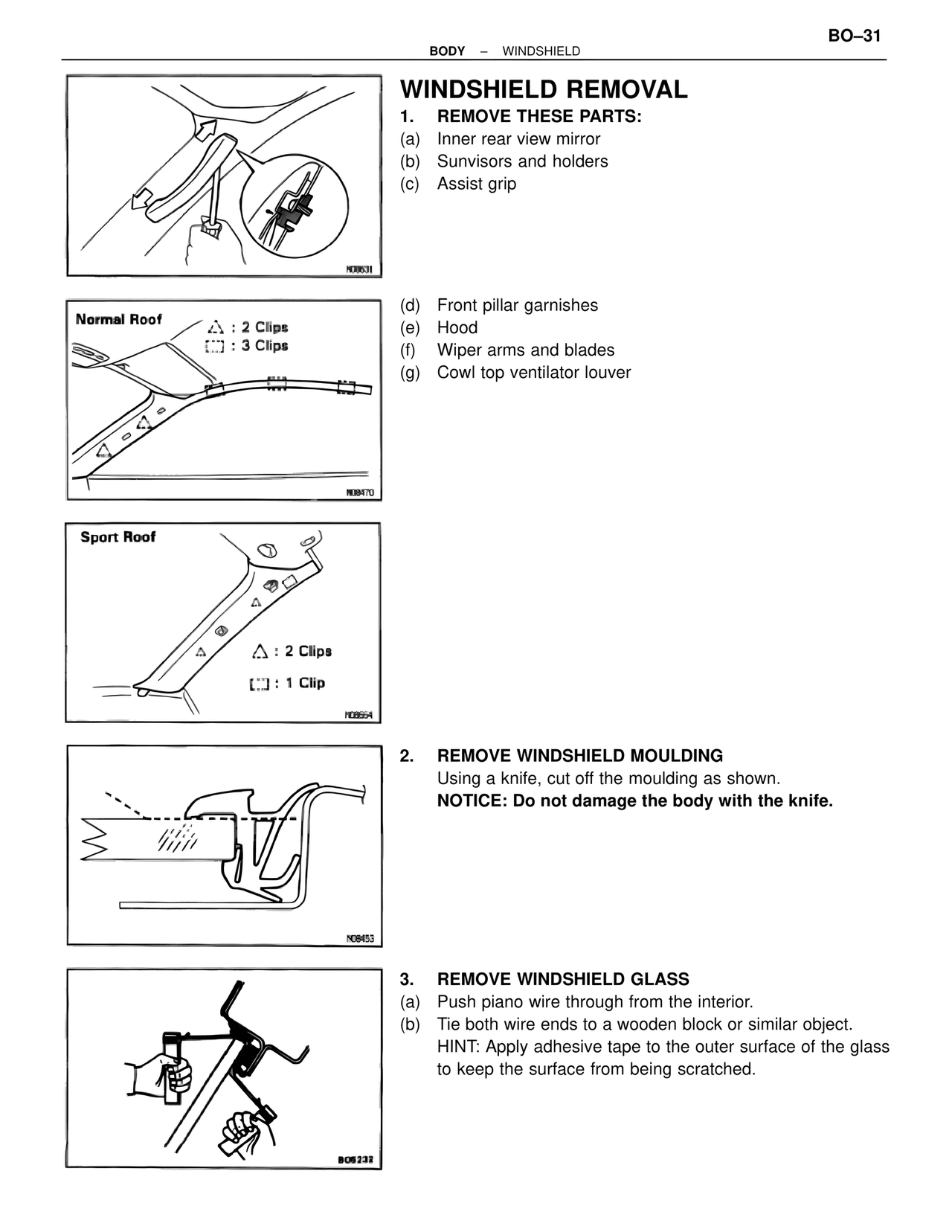

BODY – WINDSHIELD
BO–31
WINDSHIELD REMOVAL
1. REMOVE THESE PARTS:
(a) Inner rear view mirror
(b) Sunvisors and holders
(c) Assist grip
N08631
Normal Roof
△ : 2 Clips
[..] : 3 Clips
N09470
Sport Roof
△ : 2 Clips
[..] : 1 Clip
N09554
(d) Front pillar garnishes
(e) Hood
(f) Wiper arms and blades
(g) Cowl top ventilator louver
2. REMOVE WINDSHIELD MOULDING
Using a knife, cut off the moulding as shown.
NOTICE: Do not damage the body with the knife.
N08453
3. REMOVE WINDSHIELD GLASS
(a) Push piano wire through from the interior.
(b) Tie both wire ends to a wooden block or similar object.
HINT: Apply adhesive tape to the outer surface of the glass
to keep the surface from being scratched.
BO5232
