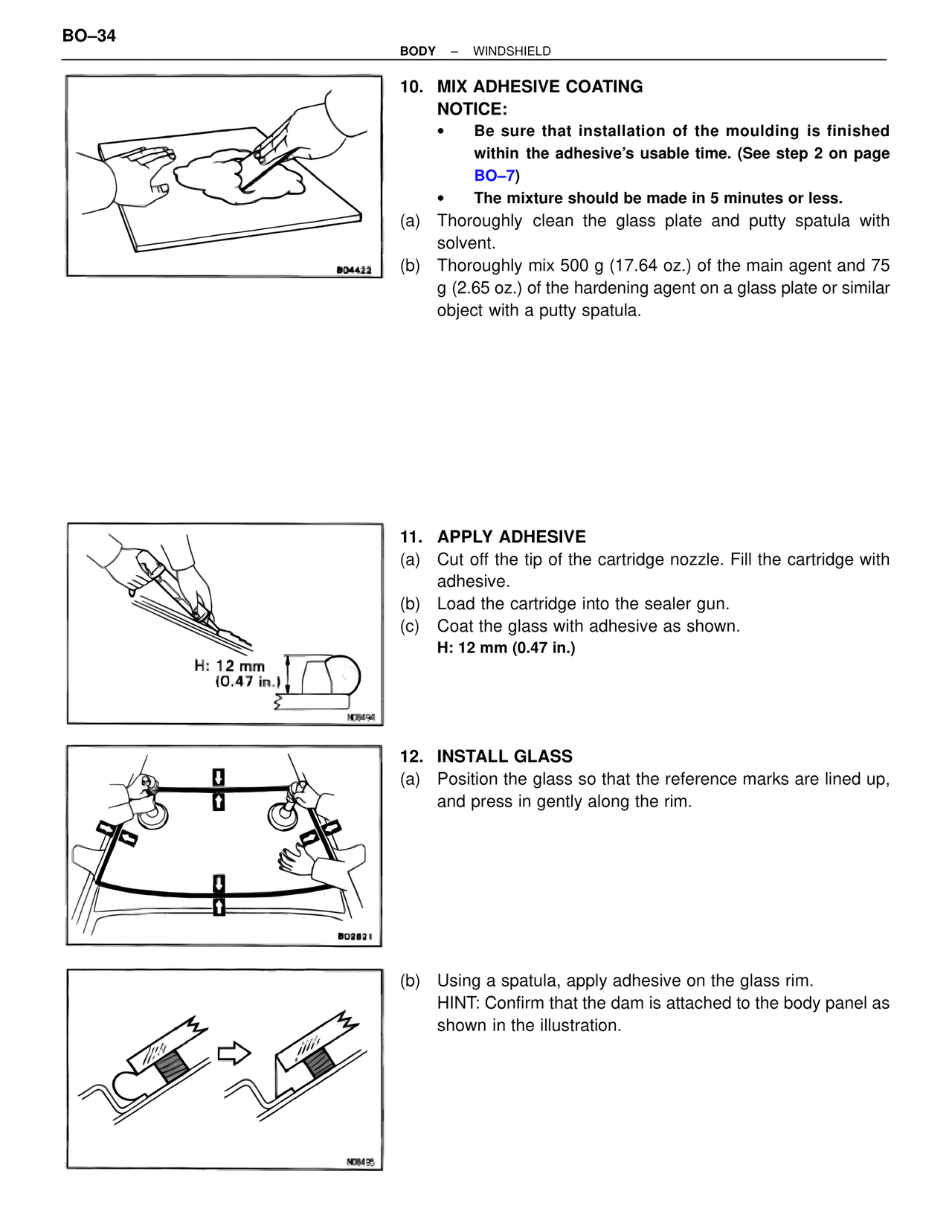

BO–34
BODY – WINDSHIELD
10. MIX ADHESIVE COATING
NOTICE:
• Be sure that installation of the moulding is finished within the adhesive's usable time. (See step 2 on page BO–7)
• The mixture should be made in 5 minutes or less.
(a) Thoroughly clean the glass plate and putty spatula with solvent.
(b) Thoroughly mix 500 g (17.64 oz.) of the main agent and 75 g (2.65 oz.) of the hardening agent on a glass plate or similar object with a putty spatula.
B04422
11. APPLY ADHESIVE
(a) Cut off the tip of the cartridge nozzle. Fill the cartridge with adhesive.
(b) Load the cartridge into the sealer gun.
(c) Coat the glass with adhesive as shown.
H: 12 mm (0.47 in.)
H: 12 mm
(0.47 in.)
ND8490
12. INSTALL GLASS
(a) Position the glass so that the reference marks are lined up, and press in gently along the rim.
B02821
(b) Using a spatula, apply adhesive on the glass rim.
HINT: Confirm that the dam is attached to the body panel as shown in the illustration.
ND8435
