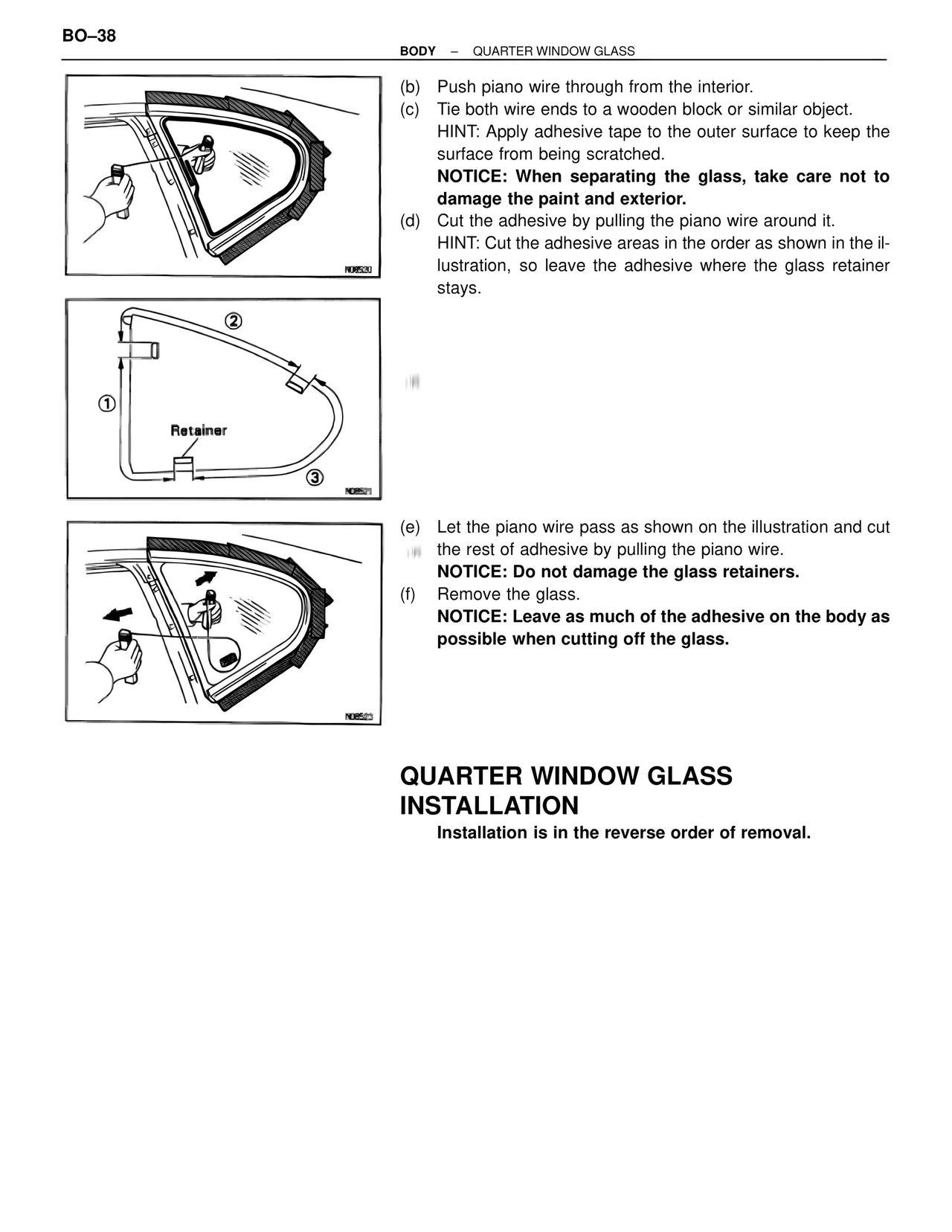

BO–38
BODY – QUARTER WINDOW GLASS
(b) Push piano wire through from the interior.
(c) Tie both wire ends to a wooden block or similar object.
HINT: Apply adhesive tape to the outer surface to keep the surface from being scratched.
NOTICE: When separating the glass, take care not to damage the paint and exterior.
(d) Cut the adhesive by pulling the piano wire around it.
HINT: Cut the adhesive areas in the order as shown in the illustration, so leave the adhesive where the glass retainer stays.
Retainer
①
②
③
(e) Let the piano wire pass as shown on the illustration and cut the rest of adhesive by pulling the piano wire.
NOTICE: Do not damage the glass retainers.
(f) Remove the glass.
NOTICE: Leave as much of the adhesive on the body as possible when cutting off the glass.
QUARTER WINDOW GLASS INSTALLATION
Installation is in the reverse order of removal.
