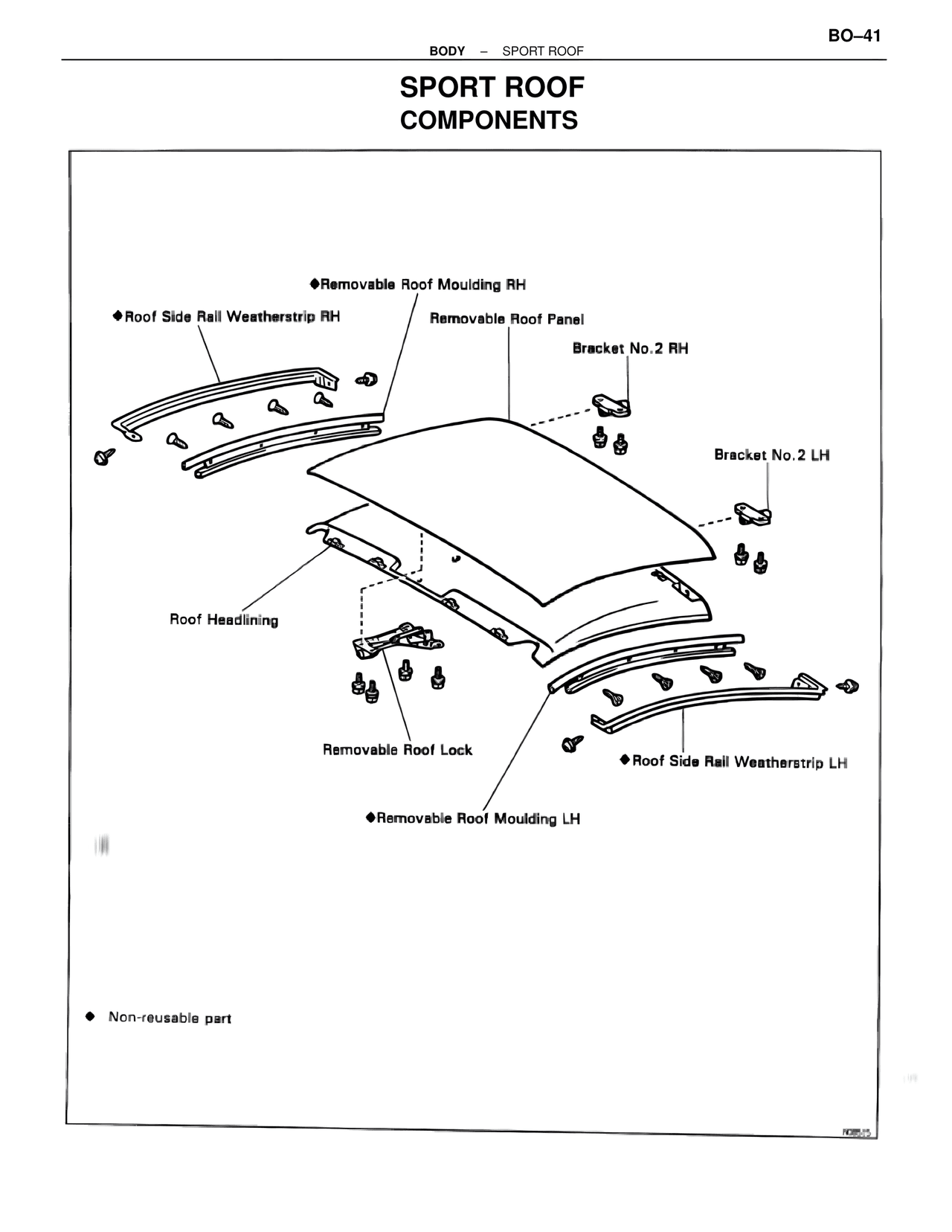

SPORT ROOF COMPONENTS — MK4 Supra Body Mechanical, page 41
100%
BODY – SPORT ROOF SPORT ROOF COMPONENTS ♦Removable Roof Moulding RH ♦Roof Side Rail Weatherstrip RH Removable Roof Panel Bracket No.2 RH Bracket No.2 LH Roof Headlining Removable Roof Lock ♦Roof Side Rail Weatherstrip LH ♦Removable Roof Moulding LH ♦ Non-reusable part BO-41
