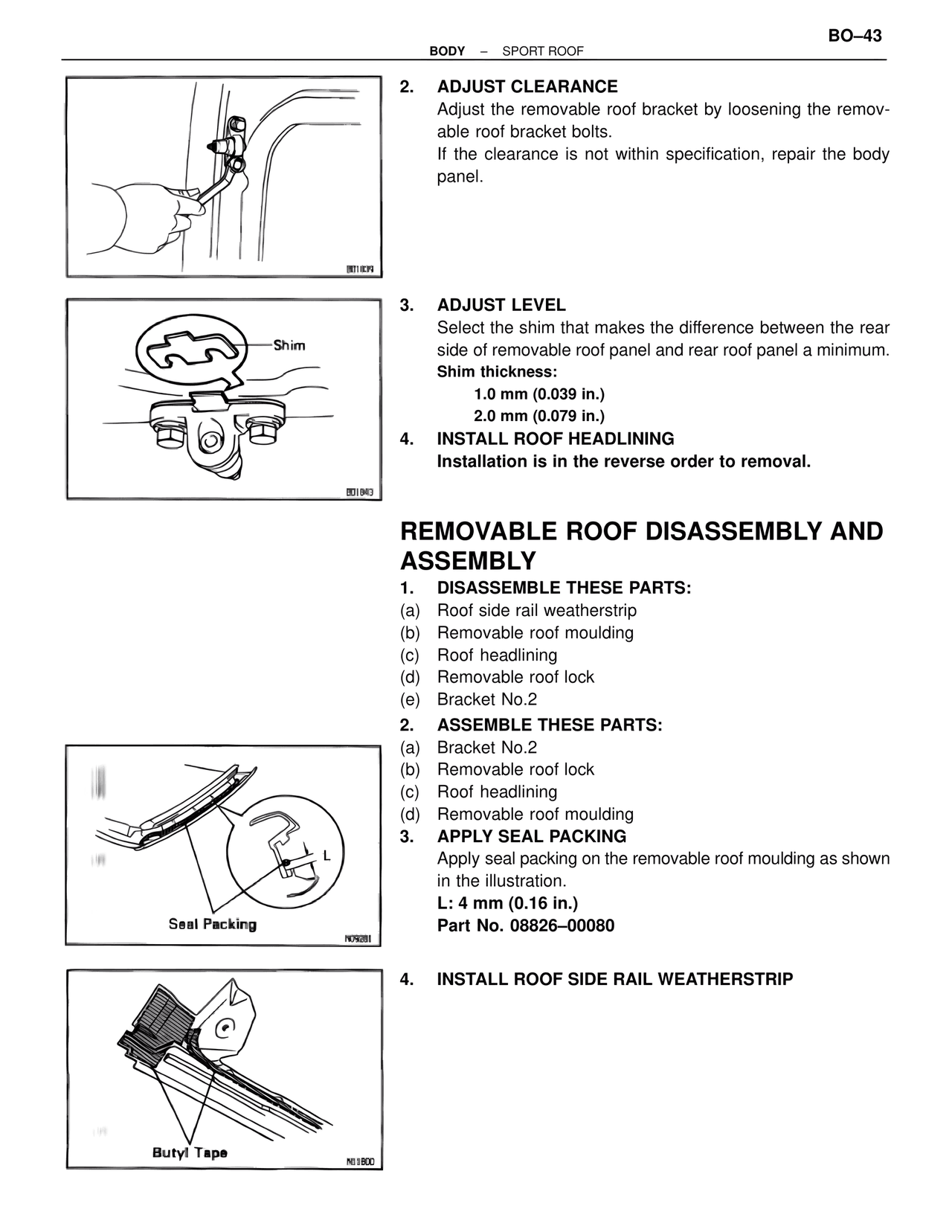

BO/Body Mechanical — Removable Roof Disassembly and Assembly, page 43

BODY – SPORT ROOF

BO–43

2. ADJUST CLEARANCE
Adjust the removable roof bracket by loosening the remov-
able roof bracket bolts.
If the clearance is not within specification, repair the body
panel.

BO11809

3. ADJUST LEVEL
Select the shim that makes the difference between the rear
side of removable roof panel and rear roof panel a minimum.
Shim thickness:
1.0 mm (0.039 in.)
2.0 mm (0.079 in.)

Shim

BO11843

4. INSTALL ROOF HEADLINING
Installation is in the reverse order to removal.

REMOVABLE ROOF DISASSEMBLY AND
ASSEMBLY

1. DISASSEMBLE THESE PARTS:
(a) Roof side rail weatherstrip
(b) Removable roof moulding
(c) Roof headlining
(d) Removable roof lock
(e) Bracket No.2

2. ASSEMBLE THESE PARTS:
(a) Bracket No.2
(b) Removable roof lock
(c) Roof headlining
(d) Removable roof moulding

3. APPLY SEAL PACKING
Apply seal packing on the removable roof moulding as shown
in the illustration.
L: 4 mm (0.16 in.)
Part No. 08826–00080

Seal Packing
L

N09281

4. INSTALL ROOF SIDE RAIL WEATHERSTRIP

Butyl Tape

N11800
