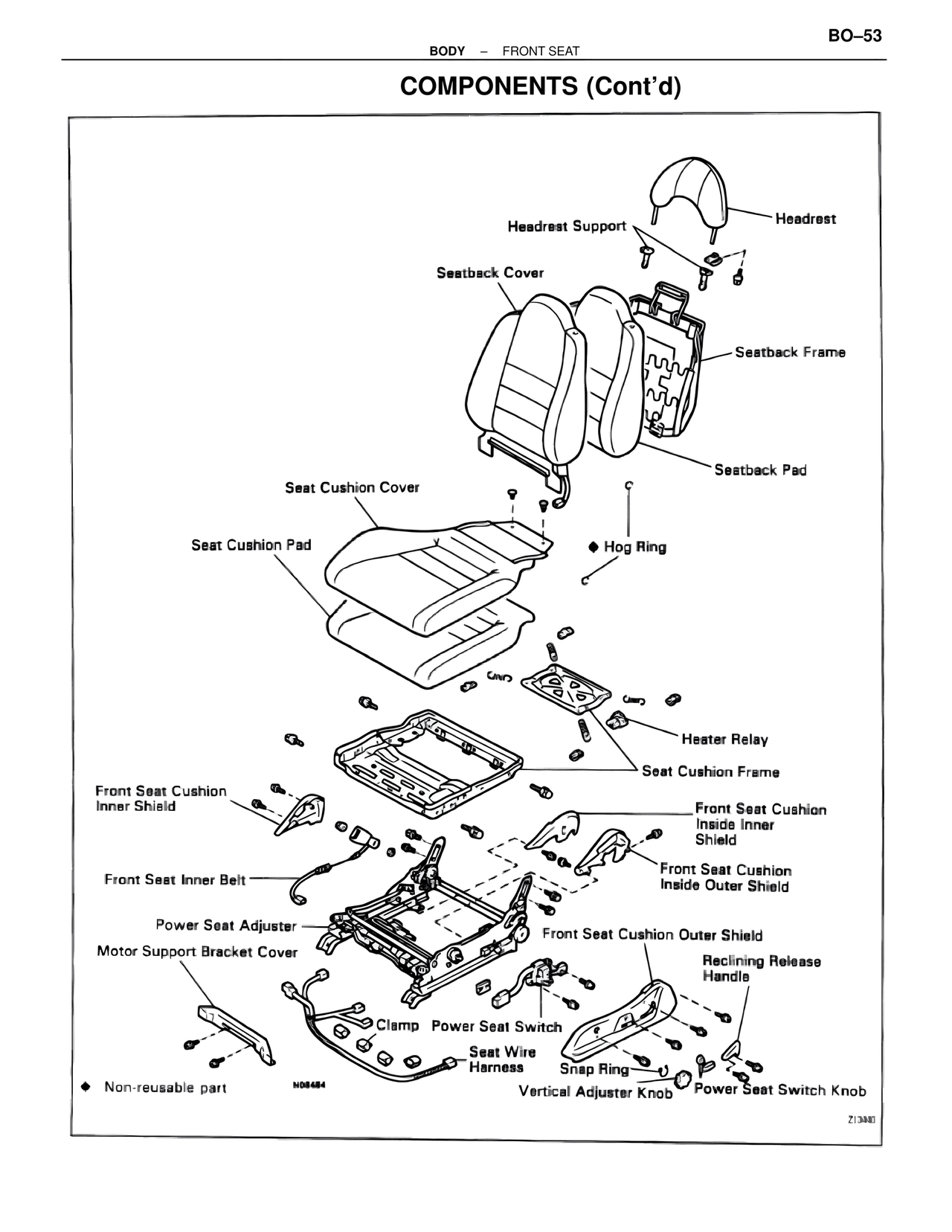

COMPONENTS (Cont'd) — MK4 Supra Body Mechanical, page 53
100%
BO-53 BODY – FRONT SEAT COMPONENTS (Cont'd) Headrest Headrest Support Seatback Cover Seatback Frame Seatback Pad Seat Cushion Cover ♦ Hog Ring Seat Cushion Pad Heater Relay Seat Cushion Frame Front Seat Cushion Inner Shield Front Seat Cushion Inside Inner Shield Front Seat Inner Belt Front Seat Cushion Inside Outer Shield Power Seat Adjuster Front Seat Cushion Outer Shield Motor Support Bracket Cover Reclining Release Handle Clamp Power Seat Switch Seat Wire Harness Snap Ring Vertical Adjuster Knob Power Seat Switch Knob ♦ Non-reusable part N08484 Z13440
