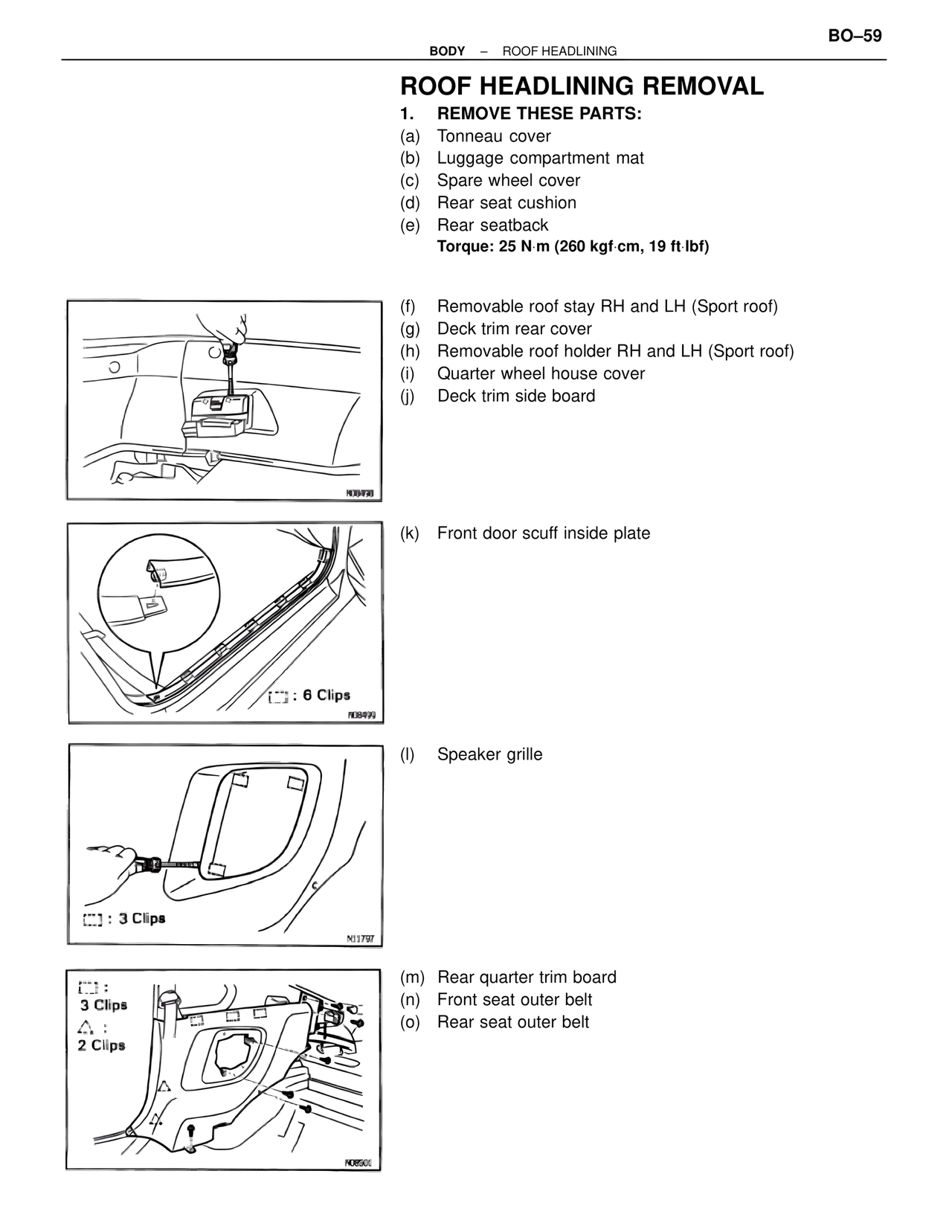

BODY – ROOF HEADLINING
BO–59
ROOF HEADLINING REMOVAL
1. REMOVE THESE PARTS:
(a) Tonneau cover
(b) Luggage compartment mat
(c) Spare wheel cover
(d) Rear seat cushion
(e) Rear seatback
Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)
(f) Removable roof stay RH and LH (Sport roof)
(g) Deck trim rear cover
(h) Removable roof holder RH and LH (Sport roof)
(i) Quarter wheel house cover
(j) Deck trim side board
N08498
(k) Front door scuff inside plate
[ ] : 6 Clips
N08499
(l) Speaker grille
[ ] : 3 Clips
N11797
[ ] :
3 Clips
△ :
2 Clips
(m) Rear quarter trim board
(n) Front seat outer belt
(o) Rear seat outer belt
N08500
