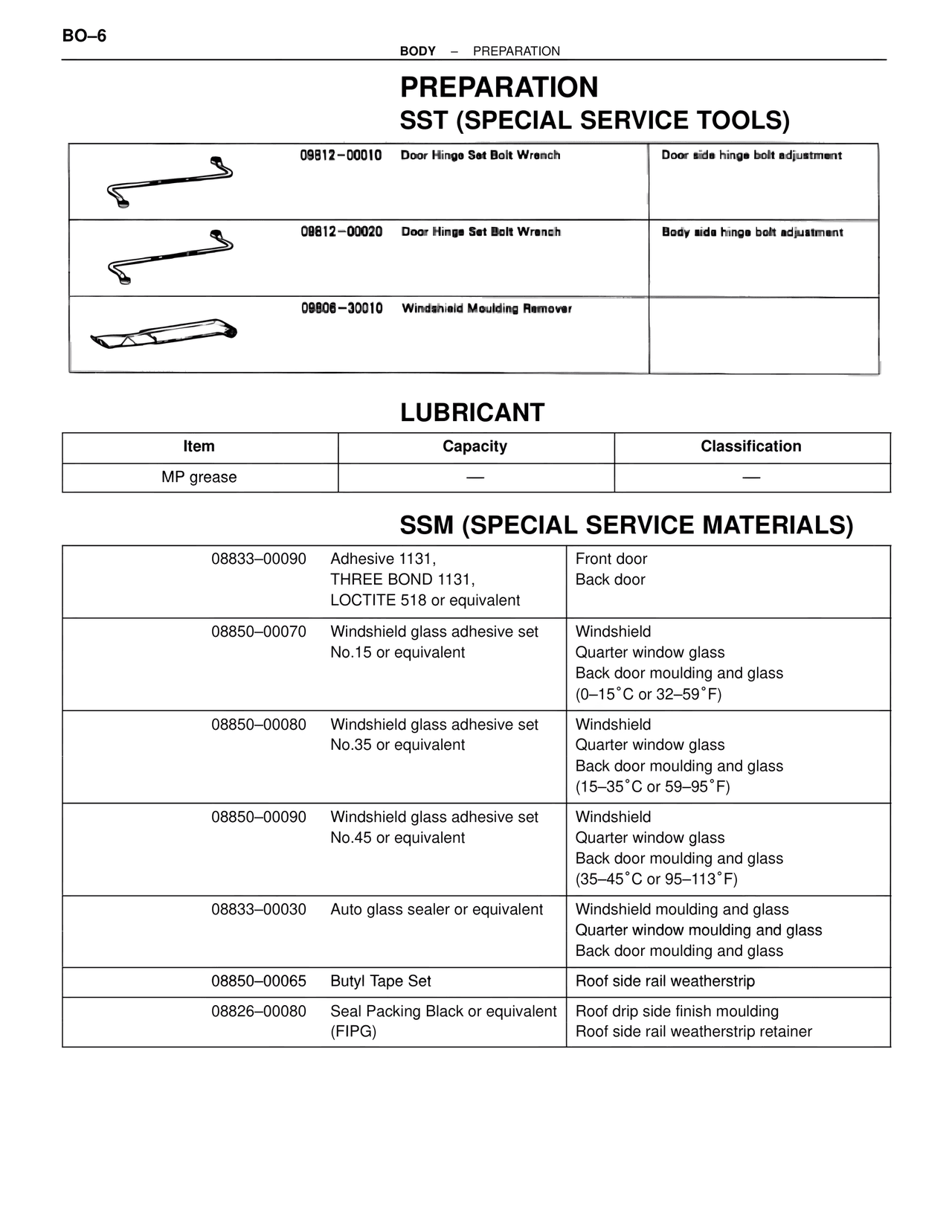

BO–6
BODY – PREPARATION
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09812–00010 Door Hinge Set Bolt Wrench Door side hinge bolt adjustment
09812–00020 Door Hinge Set Bolt Wrench Body side hinge bolt adjustment
09806–30010 Windshield Moulding Remover
LUBRICANT
Item Capacity Classification
MP grease — —
SSM (SPECIAL SERVICE MATERIALS)
08833–00090 Adhesive 1131,
THREE BOND 1131,
LOCTITE 518 or equivalent Front door
Back door
08850–00070 Windshield glass adhesive set
No.15 or equivalent Windshield
Quarter window glass
Back door moulding and glass
(0–15°C or 32–59°F)
08850–00080 Windshield glass adhesive set
No.35 or equivalent Windshield
Quarter window glass
Back door moulding and glass
(15–35°C or 59–95°F)
08850–00090 Windshield glass adhesive set
No.45 or equivalent Windshield
Quarter window glass
Back door moulding and glass
(35–45°C or 95–113°F)
08833–00030 Auto glass sealer or equivalent Windshield moulding and glass
Quarter window moulding and glass
Back door moulding and glass
08850–00065 Butyl Tape Set Roof side rail weatherstrip
08826–00080 Seal Packing Black or equivalent
(FIPG) Roof drip side finish moulding
Roof side rail weatherstrip retainer
