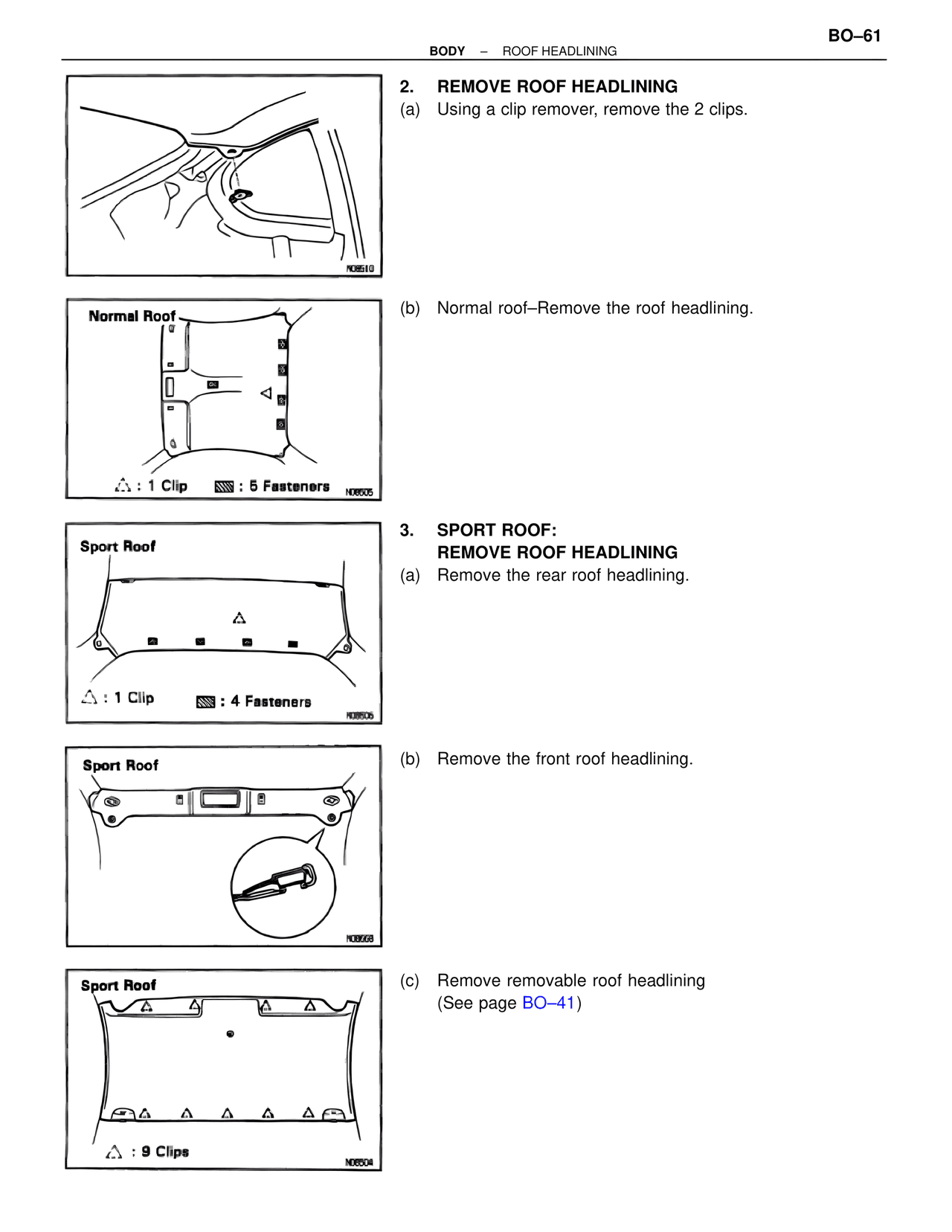

BODY – ROOF HEADLINING
BO–61
2. REMOVE ROOF HEADLINING
(a) Using a clip remover, remove the 2 clips.
N08510
Normal Roof
(b) Normal roof–Remove the roof headlining.
△ : 1 Clip ▩ : 5 Fasteners
N08505
3. SPORT ROOF:
REMOVE ROOF HEADLINING
(a) Remove the rear roof headlining.
Sport Roof
△ : 1 Clip ▩ : 4 Fasteners
N08506
Sport Roof
(b) Remove the front roof headlining.
N08568
Sport Roof
(c) Remove removable roof headlining
(See page BO–41)
△ : 9 Clips
N08504
