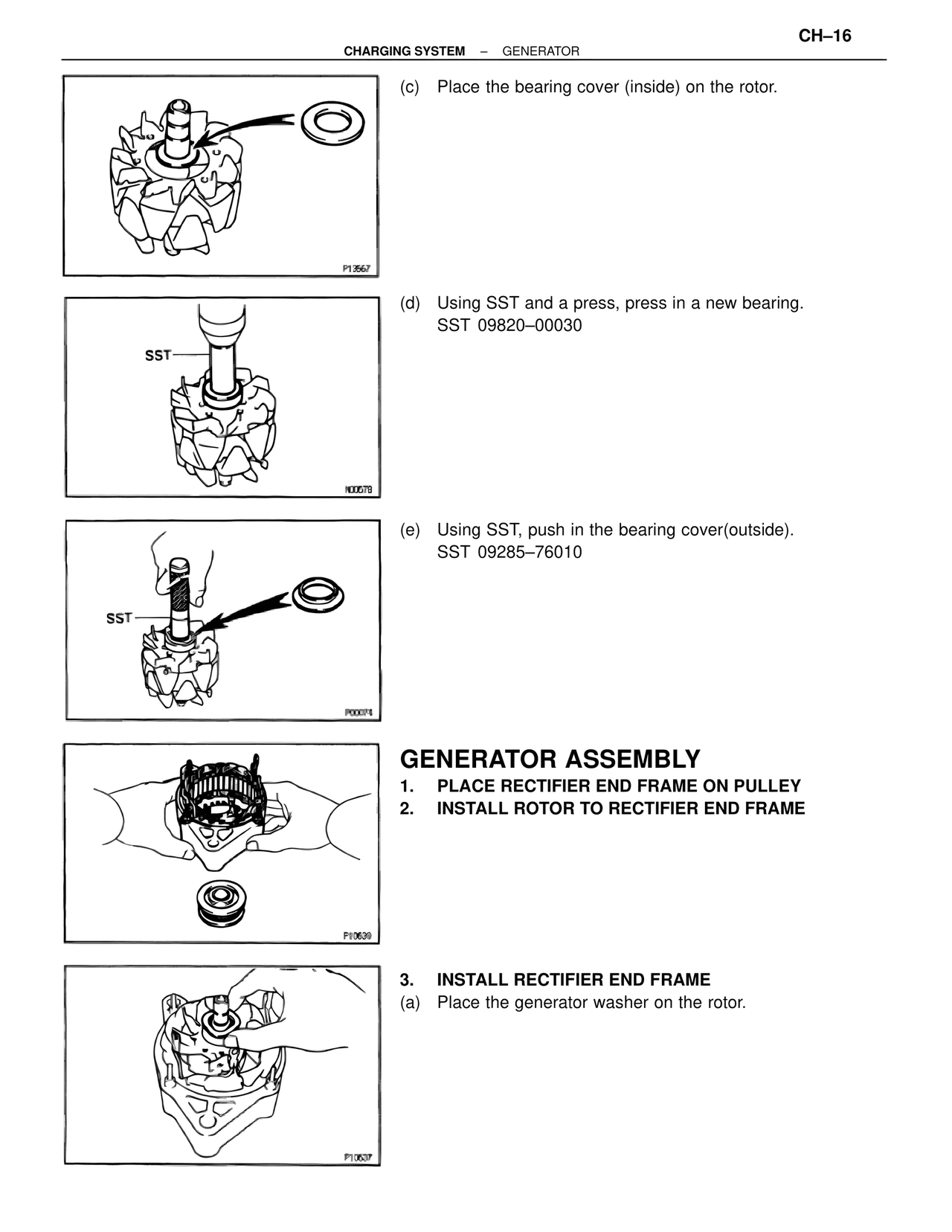

CH/Charging System — Generator Assembly, page 17

(c) Place the bearing cover (inside) on the rotor.

(d) Using SST and a press, press in a new bearing.
SST 09820–00030

SST

(e) Using SST, push in the bearing cover(outside).
SST 09285–76010

SST

GENERATOR ASSEMBLY
1. PLACE RECTIFIER END FRAME ON PULLEY
2. INSTALL ROTOR TO RECTIFIER END FRAME

3. INSTALL RECTIFIER END FRAME
(a) Place the generator washer on the rotor.
