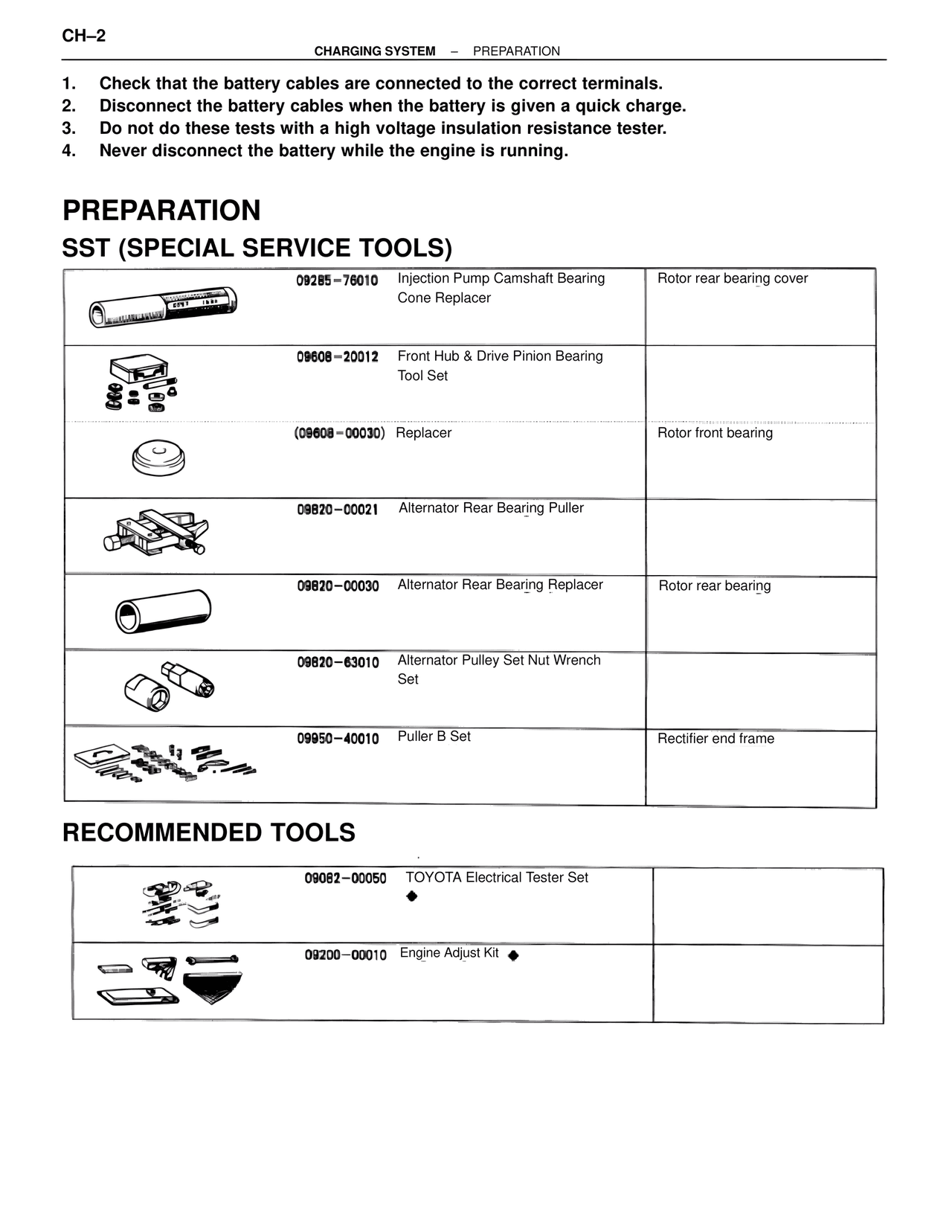

CH–2
CHARGING SYSTEM – PREPARATION
1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Do not do these tests with a high voltage insulation resistance tester.
4. Never disconnect the battery while the engine is running.
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09285–76010 Injection Pump Camshaft Bearing Cone Replacer Rotor rear bearing cover
09608–20012 Front Hub & Drive Pinion Bearing Tool Set
(09608–00030) Replacer Rotor front bearing
09820–00021 Alternator Rear Bearing Puller
09820–00030 Alternator Rear Bearing Replacer Rotor rear bearing
09820–63010 Alternator Pulley Set Nut Wrench Set
09950–40010 Puller B Set Rectifier end frame
RECOMMENDED TOOLS
09082–00050 TOYOTA Electrical Tester Set ♦
09200–00010 Engine Adjust Kit ♦
