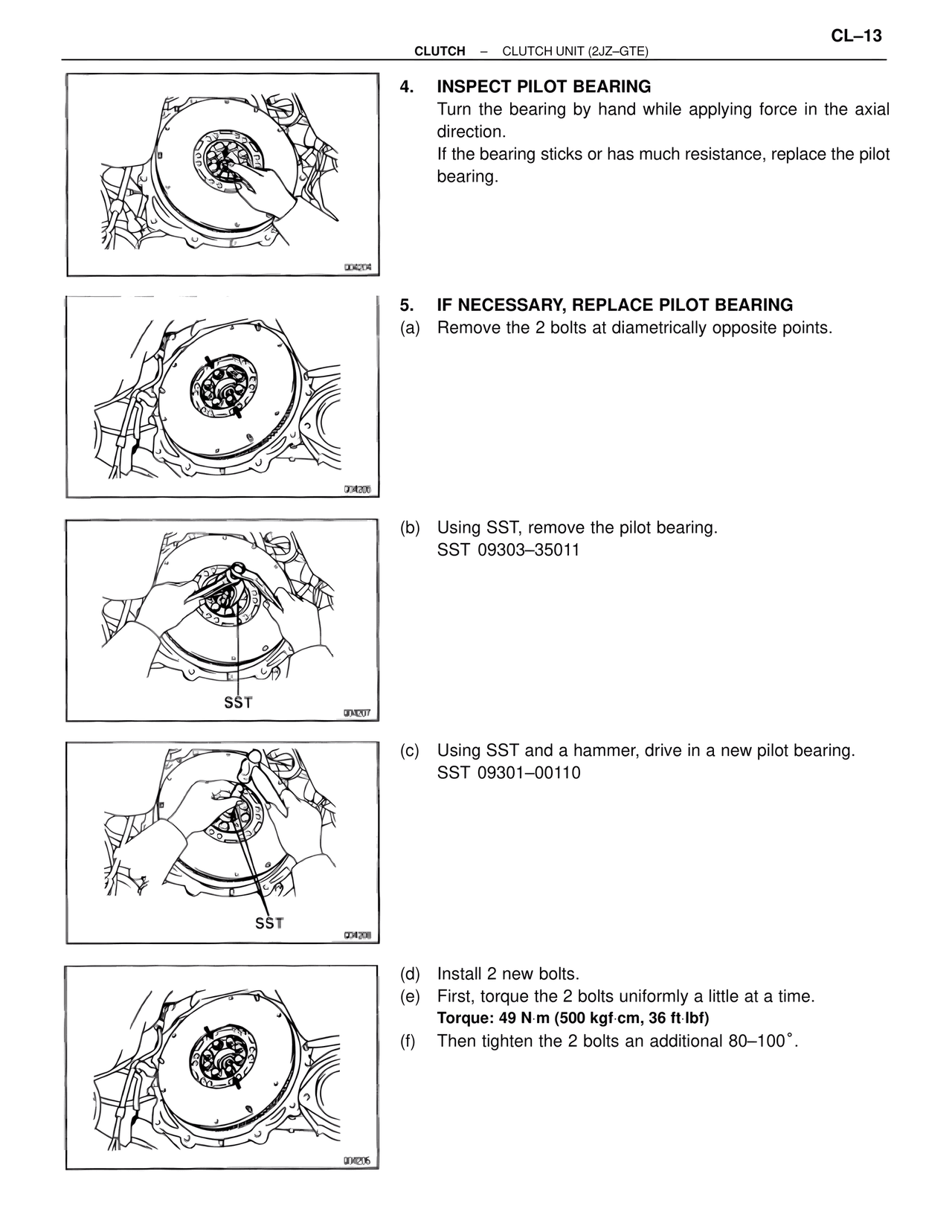

CL–13
CLUTCH – CLUTCH UNIT (2JZ–GTE)
4. INSPECT PILOT BEARING
Turn the bearing by hand while applying force in the axial direction.
If the bearing sticks or has much resistance, replace the pilot bearing.
5. IF NECESSARY, REPLACE PILOT BEARING
(a) Remove the 2 bolts at diametrically opposite points.
(b) Using SST, remove the pilot bearing.
SST 09303–35011
SST
(c) Using SST and a hammer, drive in a new pilot bearing.
SST 09301–00110
SST
(d) Install 2 new bolts.
(e) First, torque the 2 bolts uniformly a little at a time.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
(f) Then tighten the 2 bolts an additional 80–100°.
