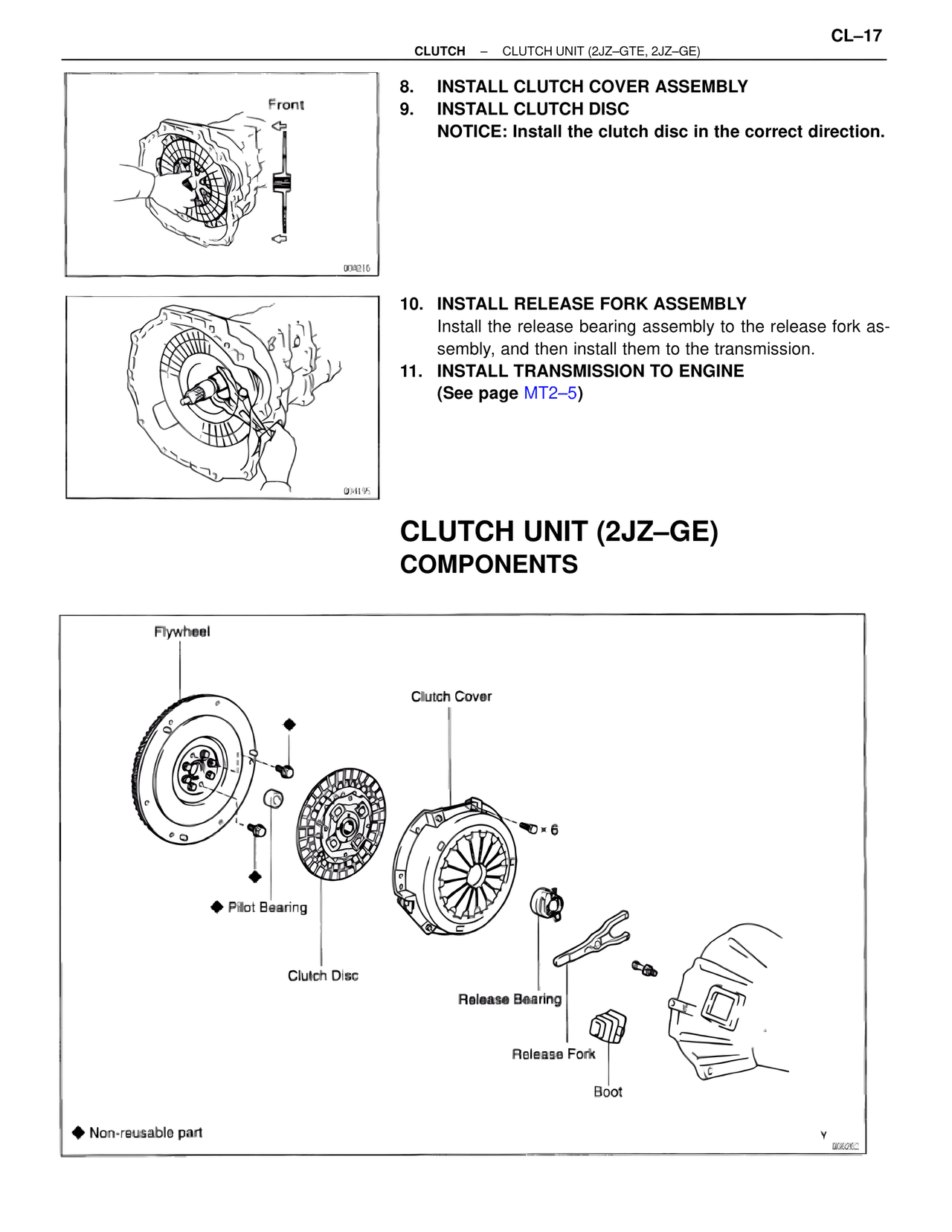

CLUTCH UNIT (2JZ–GE) COMPONENTS — MK4 Supra Clutch System, page 17
100%
CL–17 CLUTCH – CLUTCH UNIT (2JZ–GTE, 2JZ–GE) Front 004216 8. INSTALL CLUTCH COVER ASSEMBLY 9. INSTALL CLUTCH DISC NOTICE: Install the clutch disc in the correct direction. 004195 10. INSTALL RELEASE FORK ASSEMBLY Install the release bearing assembly to the release fork assembly, and then install them to the transmission. 11. INSTALL TRANSMISSION TO ENGINE (See page MT2–5) CLUTCH UNIT (2JZ–GE) COMPONENTS Flywheel Clutch Cover ♦ x 6 ♦ Pilot Bearing Clutch Disc Release Bearing Release Fork Boot ♦ Non-reusable part 006262
