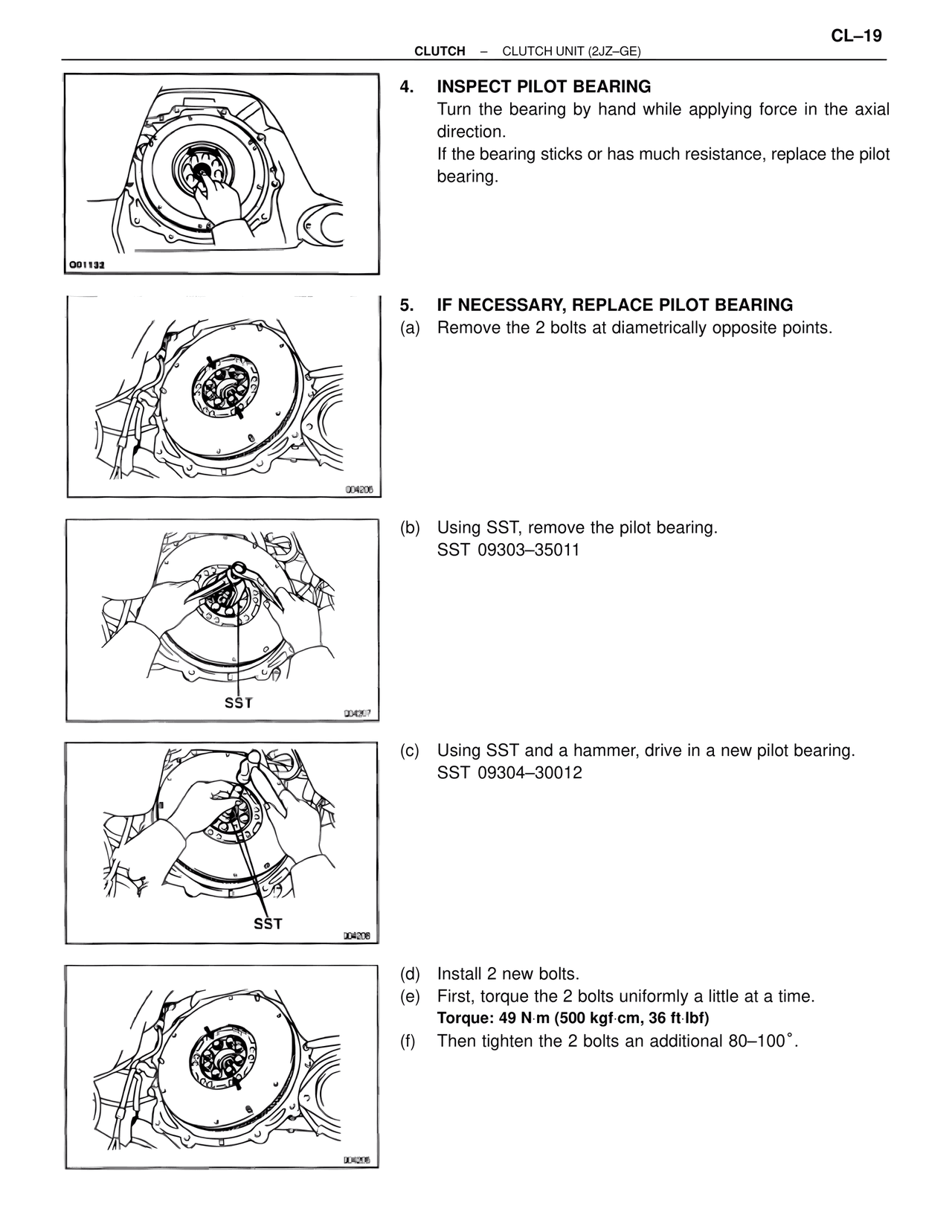

CL-19 CLUTCH – CLUTCH UNIT (2JZ–GE) 4. INSPECT PILOT BEARING Turn the bearing by hand while applying force in the axial direction. If the bearing sticks or has much resistance, replace the pilot bearing. O01132 5. IF NECESSARY, REPLACE PILOT BEARING (a) Remove the 2 bolts at diametrically opposite points. 004206 (b) Using SST, remove the pilot bearing. SST 09303–35011 SST 004207 (c) Using SST and a hammer, drive in a new pilot bearing. SST 09304–30012 SST 004208 (d) Install 2 new bolts. (e) First, torque the 2 bolts uniformly a little at a time. Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) (f) Then tighten the 2 bolts an additional 80–100°. 004206
