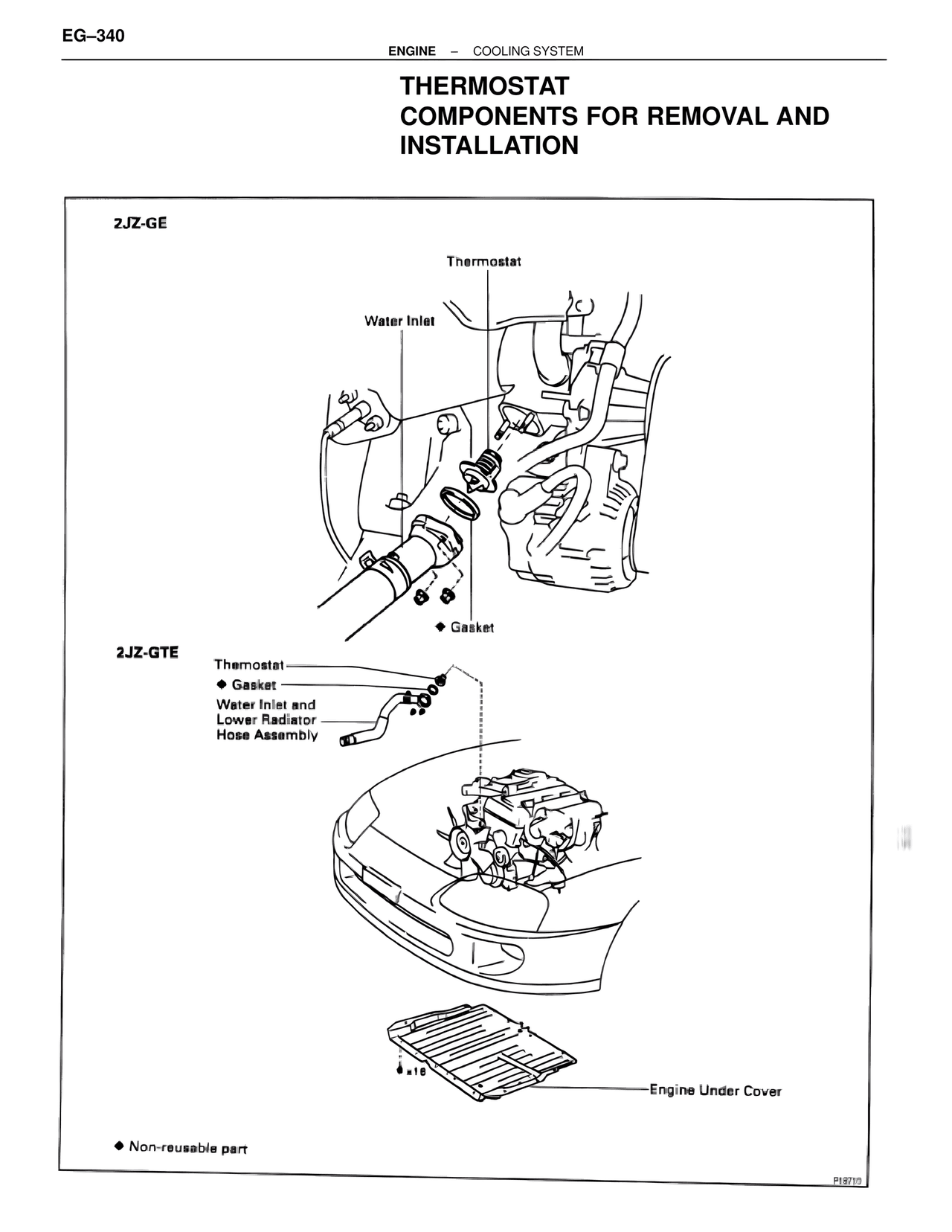

EG–340 ENGINE – COOLING SYSTEM THERMOSTAT COMPONENTS FOR REMOVAL AND INSTALLATION 2JZ-GE Thermostat Water Inlet ◆ Gasket 2JZ-GTE Thermostat ◆ Gasket Water Inlet and Lower Radiator Hose Assembly Engine Under Cover ◆ x16 ◆ Non-reusable part P18710
