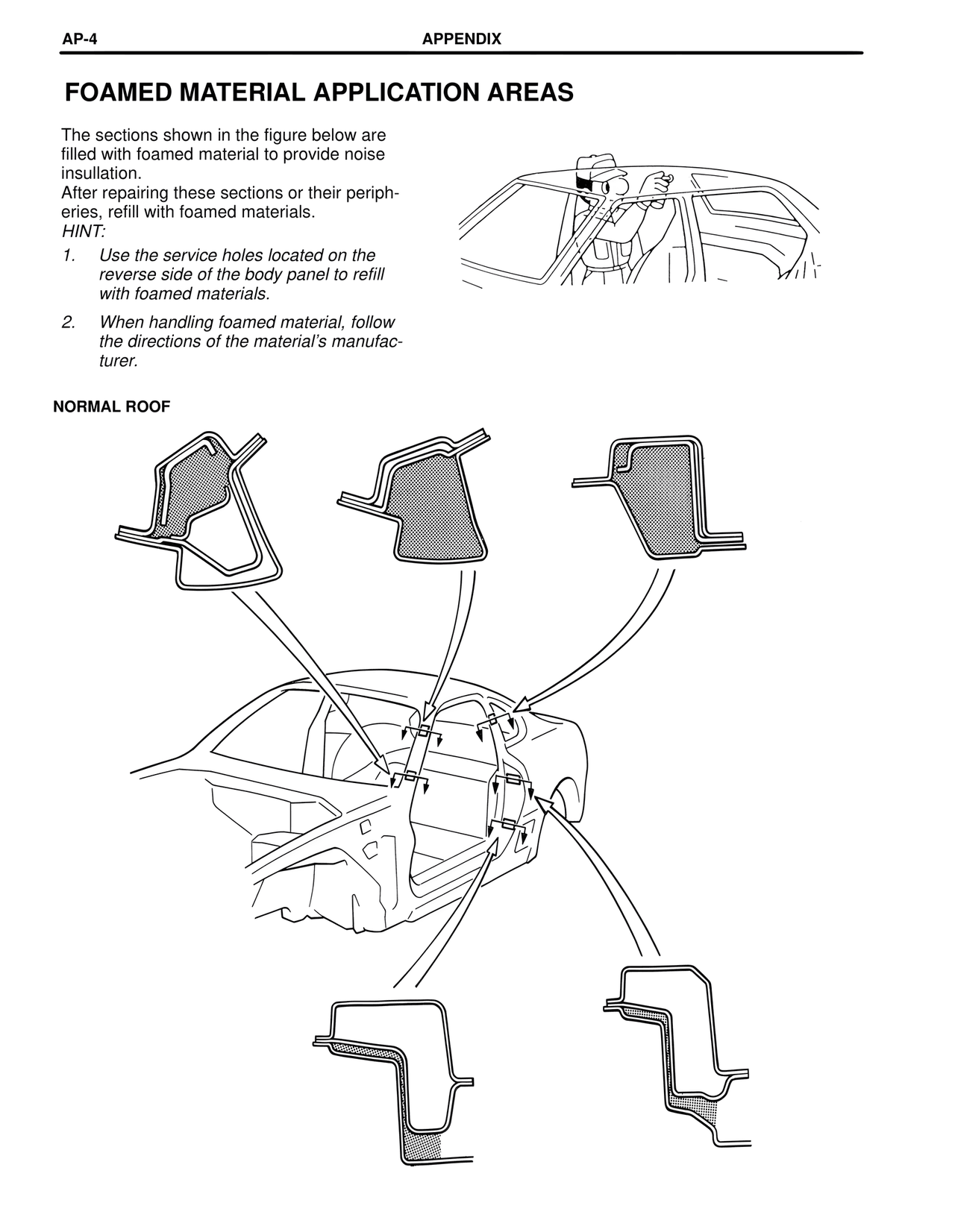

AP-4                    APPENDIX

FOAMED MATERIAL APPLICATION AREAS

The sections shown in the figure below are
filled with foamed material to provide noise
insullation.
After repairing these sections or their periph-
eries, refill with foamed materials.
HINT:

1.    Use the service holes located on the
      reverse side of the body panel to refill
      with foamed materials.

2.    When handling foamed material, follow
      the directions of the material's manufac-
      turer.

NORMAL ROOF
