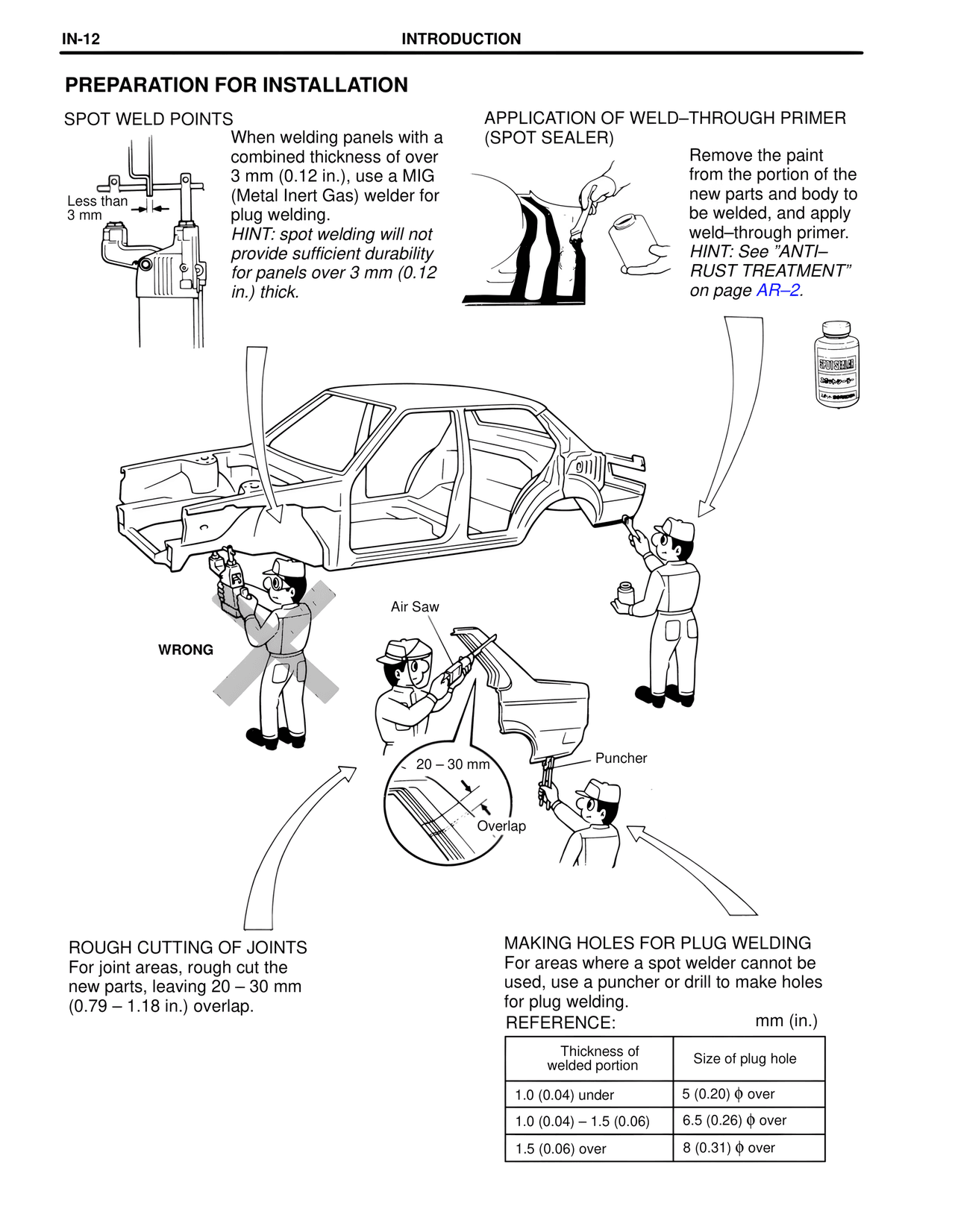

IN-12 INTRODUCTION
PREPARATION FOR INSTALLATION
SPOT WELD POINTS
When welding panels with a combined thickness of over 3 mm (0.12 in.), use a MIG (Metal Inert Gas) welder for plug welding.
HINT: spot welding will not provide sufficient durability for panels over 3 mm (0.12 in.) thick.
Less than 3 mm
APPLICATION OF WELD–THROUGH PRIMER (SPOT SEALER)
Remove the paint from the portion of the new parts and body to be welded, and apply weld–through primer.
HINT: See "ANTI–RUST TREATMENT" on page AR–2.
WRONG
Air Saw
20 – 30 mm
Overlap
Puncher
ROUGH CUTTING OF JOINTS
For joint areas, rough cut the new parts, leaving 20 – 30 mm (0.79 – 1.18 in.) overlap.
MAKING HOLES FOR PLUG WELDING
For areas where a spot welder cannot be used, use a puncher or drill to make holes for plug welding.
REFERENCE: mm (in.)
Thickness of welded portion | Size of plug hole
1.0 (0.04) under | 5 (0.20) φ over
1.0 (0.04) – 1.5 (0.06) | 6.5 (0.26) φ over
1.5 (0.06) over | 8 (0.31) φ over
