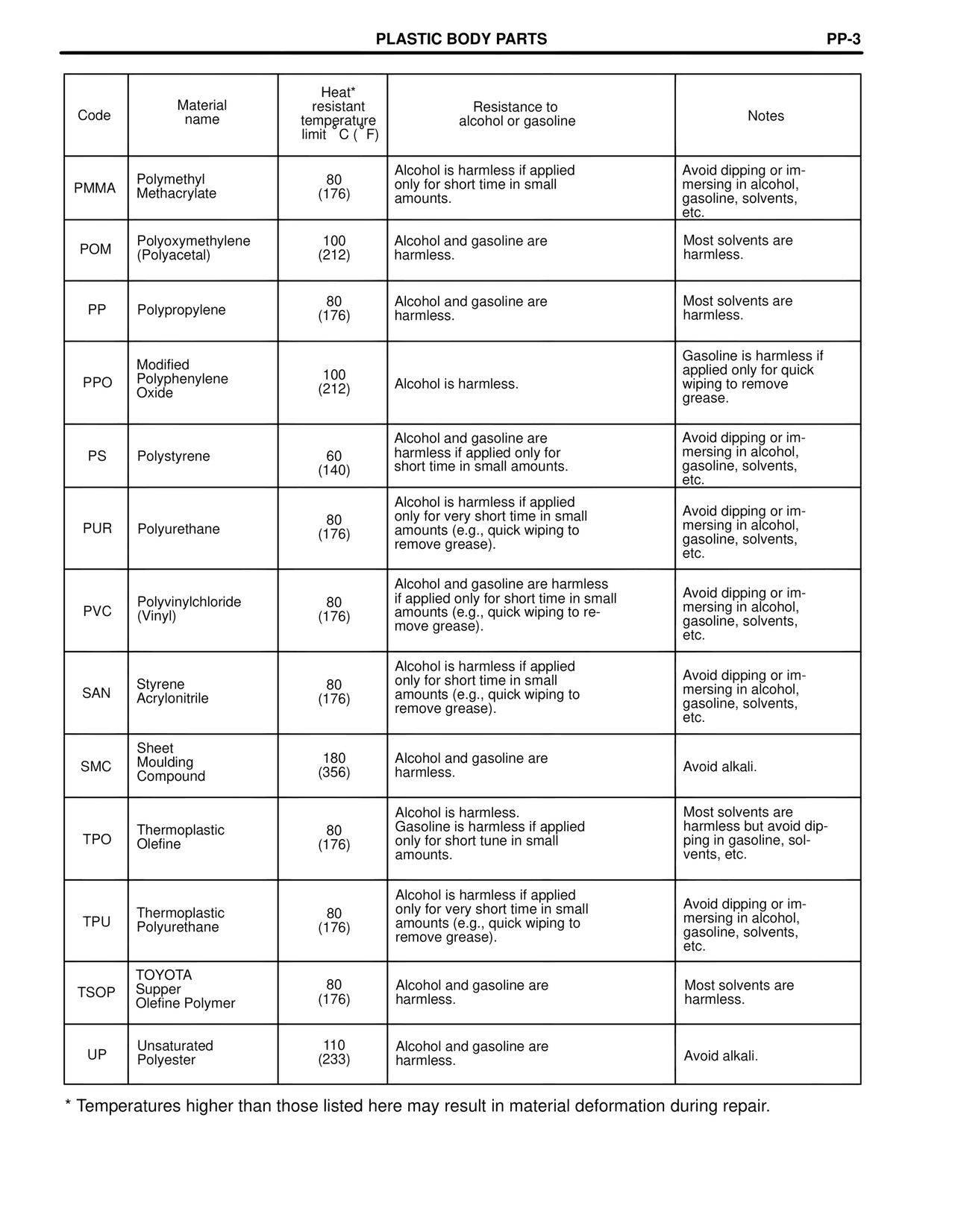

PLASTIC BODY PARTS PP-3
Code Material name Heat* resistant temperature limit °C (°F) Resistance to alcohol or gasoline Notes
PMMA Polymethyl Methacrylate 80 (176) Alcohol is harmless if applied only for short time in small amounts. Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
POM Polyoxymethylene (Polyacetal) 100 (212) Alcohol and gasoline are harmless. Most solvents are harmless.
PP Polypropylene 80 (176) Alcohol and gasoline are harmless. Most solvents are harmless.
PPO Modified Polyphenylene Oxide 100 (212) Alcohol is harmless. Gasoline is harmless if applied only for quick wiping to remove grease.
PS Polystyrene 60 (140) Alcohol and gasoline are harmless if applied only for short time in small amounts. Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
PUR Polyurethane 80 (176) Alcohol is harmless if applied only for very short time in small amounts (e.g., quick wiping to remove grease). Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
PVC Polyvinylchloride (Vinyl) 80 (176) Alcohol and gasoline are harmless if applied only for short time in small amounts (e.g., quick wiping to remove grease). Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
SAN Styrene Acrylonitrile 80 (176) Alcohol is harmless if applied only for short time in small amounts (e.g., quick wiping to remove grease). Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
SMC Sheet Moulding Compound 180 (356) Alcohol and gasoline are harmless. Avoid alkali.
TPO Thermoplastic Olefine 80 (176) Alcohol is harmless. Gasoline is harmless if applied only for short tune in small amounts. Most solvents are harmless but avoid dipping in gasoline, solvents, etc.
TPU Thermoplastic Polyurethane 80 (176) Alcohol is harmless if applied only for very short time in small amounts (e.g., quick wiping to remove grease). Avoid dipping or immersing in alcohol, gasoline, solvents, etc.
TSOP TOYOTA Supper Olefine Polymer 80 (176) Alcohol and gasoline are harmless. Most solvents are harmless.
UP Unsaturated Polyester 110 (233) Alcohol and gasoline are harmless. Avoid alkali.
* Temperatures higher than those listed here may result in material deformation during repair.
