IN-2 INTRODUCTION

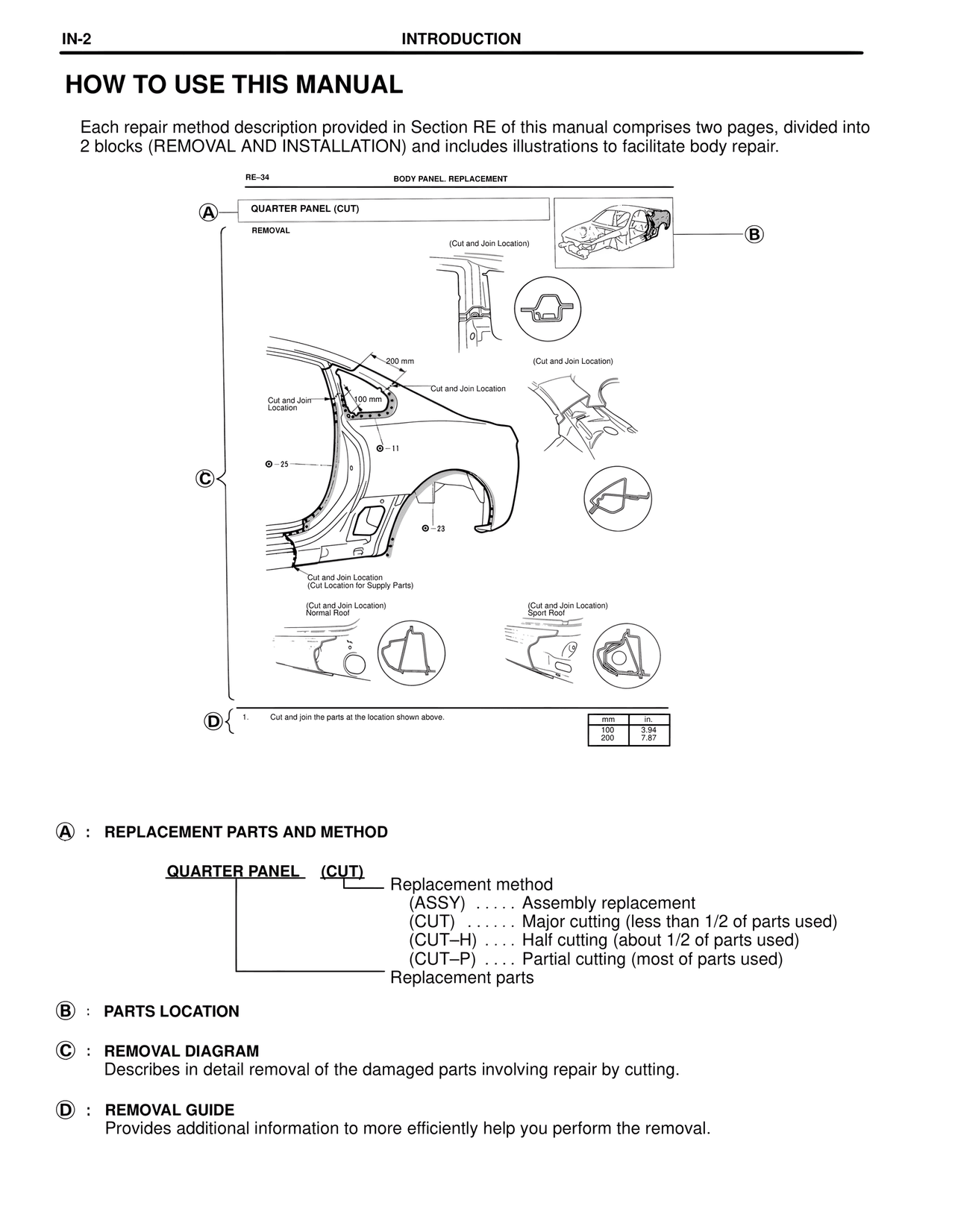

HOW TO USE THIS MANUAL
Each repair method description provided in Section RE of this manual comprises two pages, divided into
2 blocks (REMOVAL AND INSTALLATION) and includes illustrations to facilitate body repair.
RE-34 BODY PANEL. REPLACEMENT
A QUARTER PANEL (CUT)
REMOVAL
(Cut and Join Location)
B
200 mm
(Cut and Join Location)
Cut and Join Location
Cut and Join
Location 100 mm
⊕ - 25
C
⊕ - 11
⊕ - 23
Cut and Join Location
(Cut Location for Supply Parts)
(Cut and Join Location) (Cut and Join Location)
Normal Roof Sport Roof
D 1. Cut and join the parts at the location shown above.
mm in.
100 3.94
200 7.87
A : REPLACEMENT PARTS AND METHOD
QUARTER PANEL (CUT)
Replacement method
(ASSY) . . . . . Assembly replacement
(CUT) . . . . . . Major cutting (less than 1/2 of parts used)
(CUT–H) . . . . Half cutting (about 1/2 of parts used)
(CUT–P) . . . . Partial cutting (most of parts used)
Replacement parts
B : PARTS LOCATION
C : REMOVAL DIAGRAM
Describes in detail removal of the damaged parts involving repair by cutting.
D : REMOVAL GUIDE
Provides additional information to more efficiently help you perform the removal.
