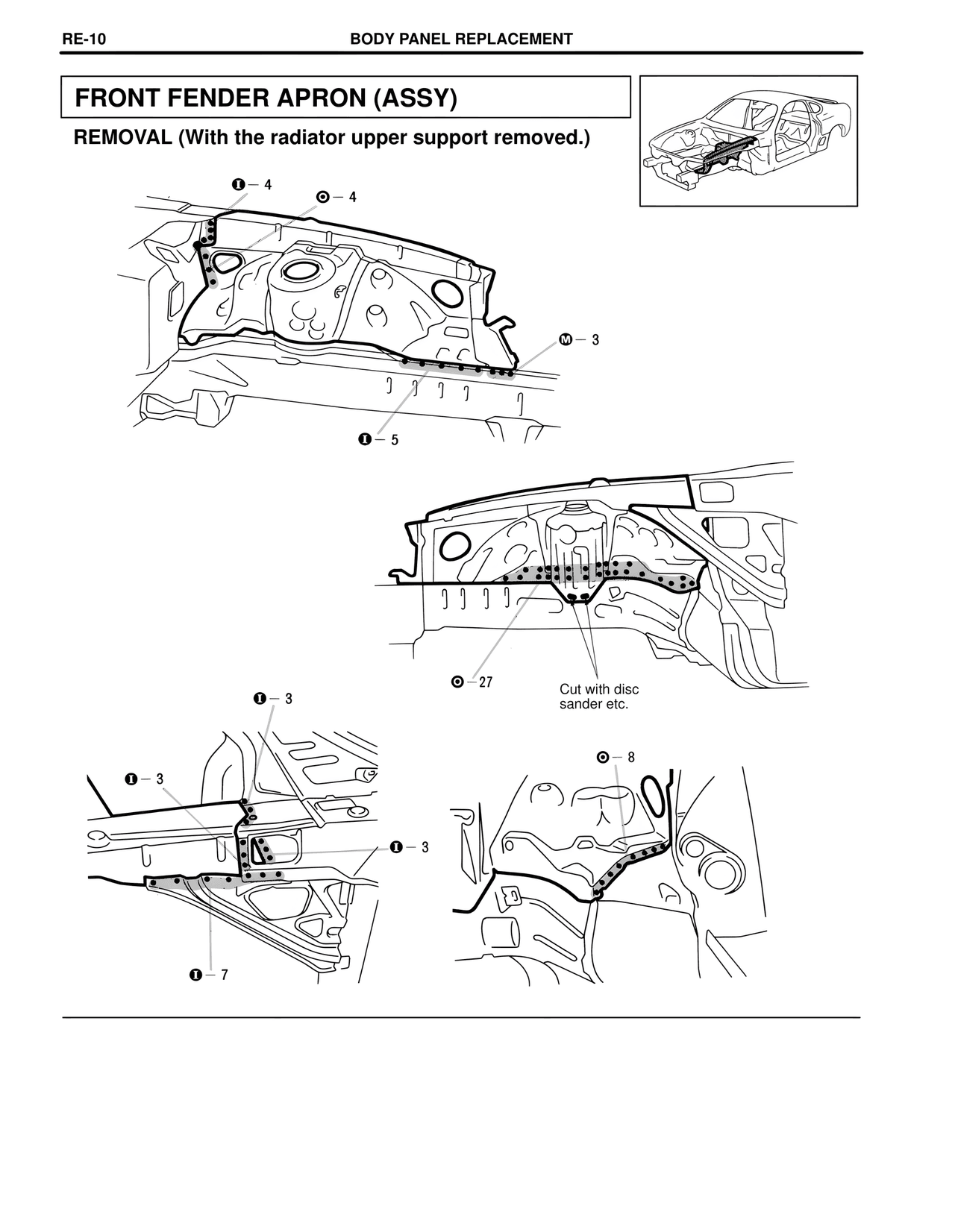

RE-10 BODY PANEL REPLACEMENT FRONT FENDER APRON (ASSY) REMOVAL (With the radiator upper support removed.) ●− 4 ⊙− 4 M− 3 ●− 5 ⊙−27 Cut with disc sander etc. ●− 3 ●− 3 ●− 3 ●− 7 ⊙− 8
35 sections · 3,071 pages
RE-10 BODY PANEL REPLACEMENT FRONT FENDER APRON (ASSY) REMOVAL (With the radiator upper support removed.) ●− 4 ⊙− 4 M− 3 ●− 5 ⊙−27 Cut with disc sander etc. ●− 3 ●− 3 ●− 3 ●− 7 ⊙− 8
