BODY PANEL REPLACEMENT
RE-13

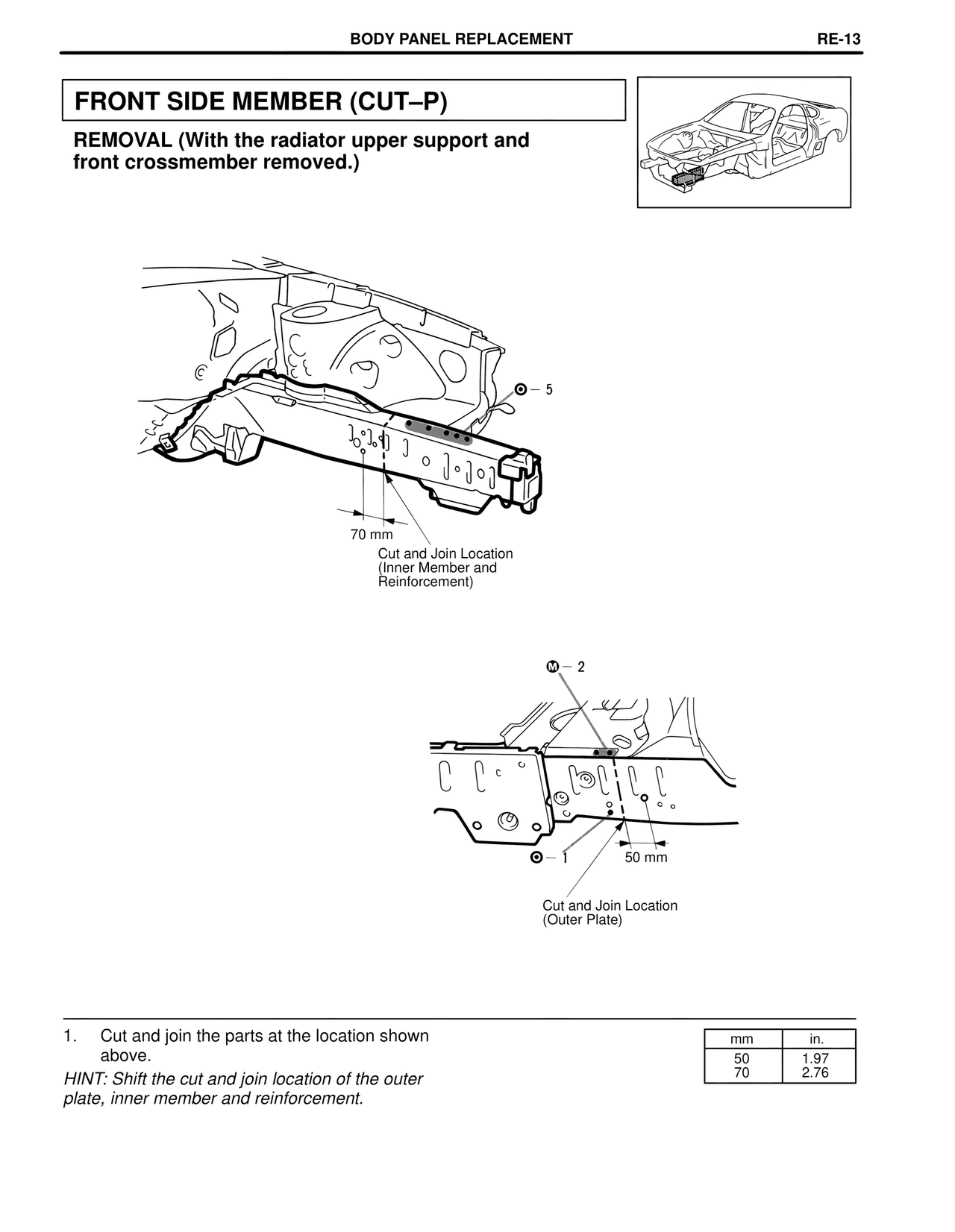

FRONT SIDE MEMBER (CUT–P)
REMOVAL (With the radiator upper support and
front crossmember removed.)
70 mm
Cut and Join Location
(Inner Member and
Reinforcement)
M– 2
50 mm
Cut and Join Location
(Outer Plate)
1. Cut and join the parts at the location shown
above.
HINT: Shift the cut and join location of the outer
plate, inner member and reinforcement.
mm in.
50 1.97
70 2.76
