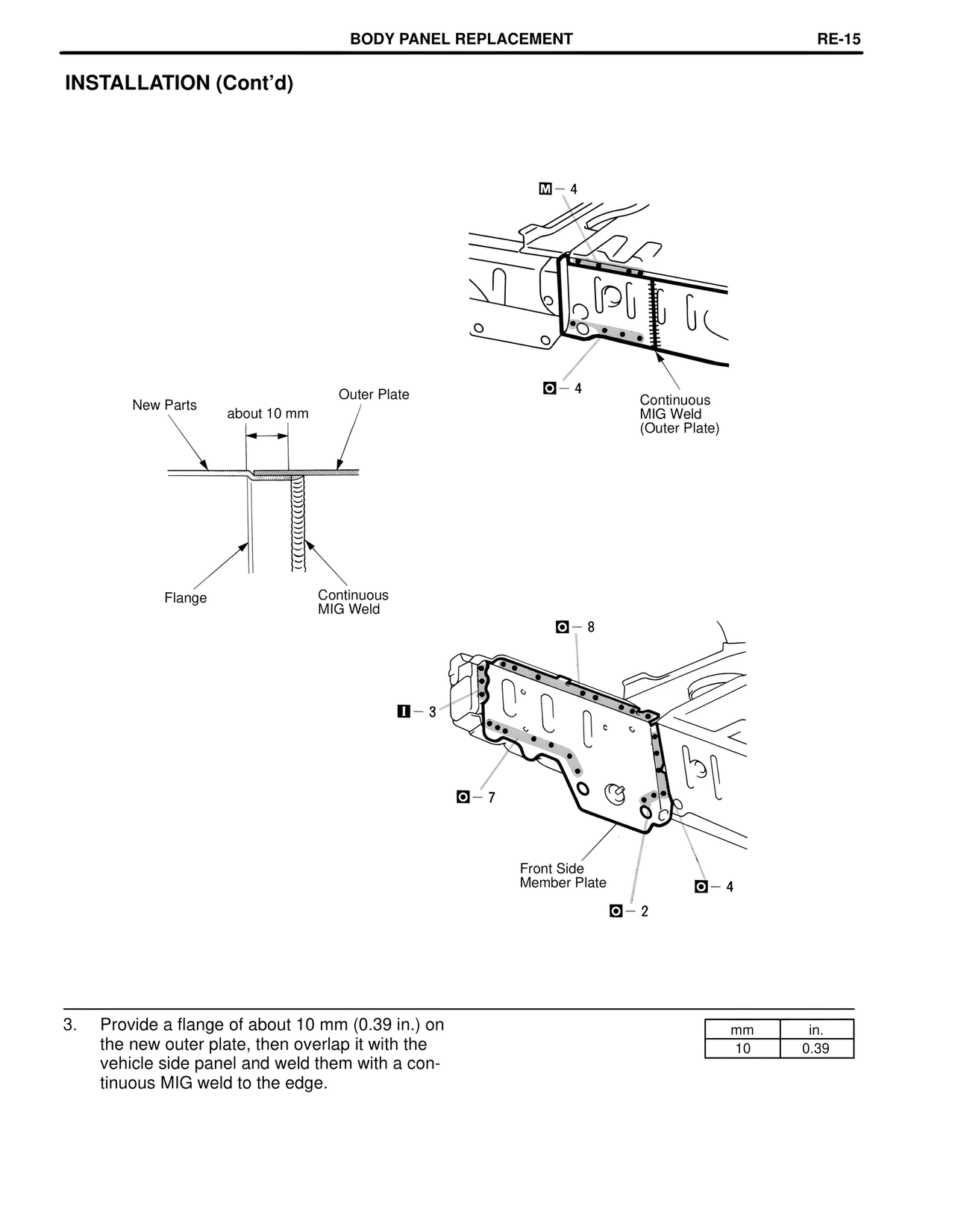

BODY PANEL REPLACEMENT
RE-15
INSTALLATION (Cont'd)
M — 4
O — 4
Continuous
MIG Weld
(Outer Plate)
New Parts
Outer Plate
about 10 mm
Flange
Continuous
MIG Weld
O — 8
I — 3
O — 7
Front Side
Member Plate
O — 4
O — 2
3. Provide a flange of about 10 mm (0.39 in.) on
the new outer plate, then overlap it with the
vehicle side panel and weld them with a con-
tinuous MIG weld to the edge.
mm in.
10 0.39
