RE-32                    BODY PANEL REPLACEMENT

ROCKER OUTER PANEL (CUT)

REMOVAL

⊙ - 16

Cut and Join Location
(Cut Location for Supply Parts)

Cut and Join Location
(Cut Location for Supply Parts)

Normal Roof:⊙ - 15
Sport Roof:⊙ - 14

(Cut and Join Location)
Normal Roof

(Cut and Join Location)
Normal Roof

Sport Roof

Sport Roof

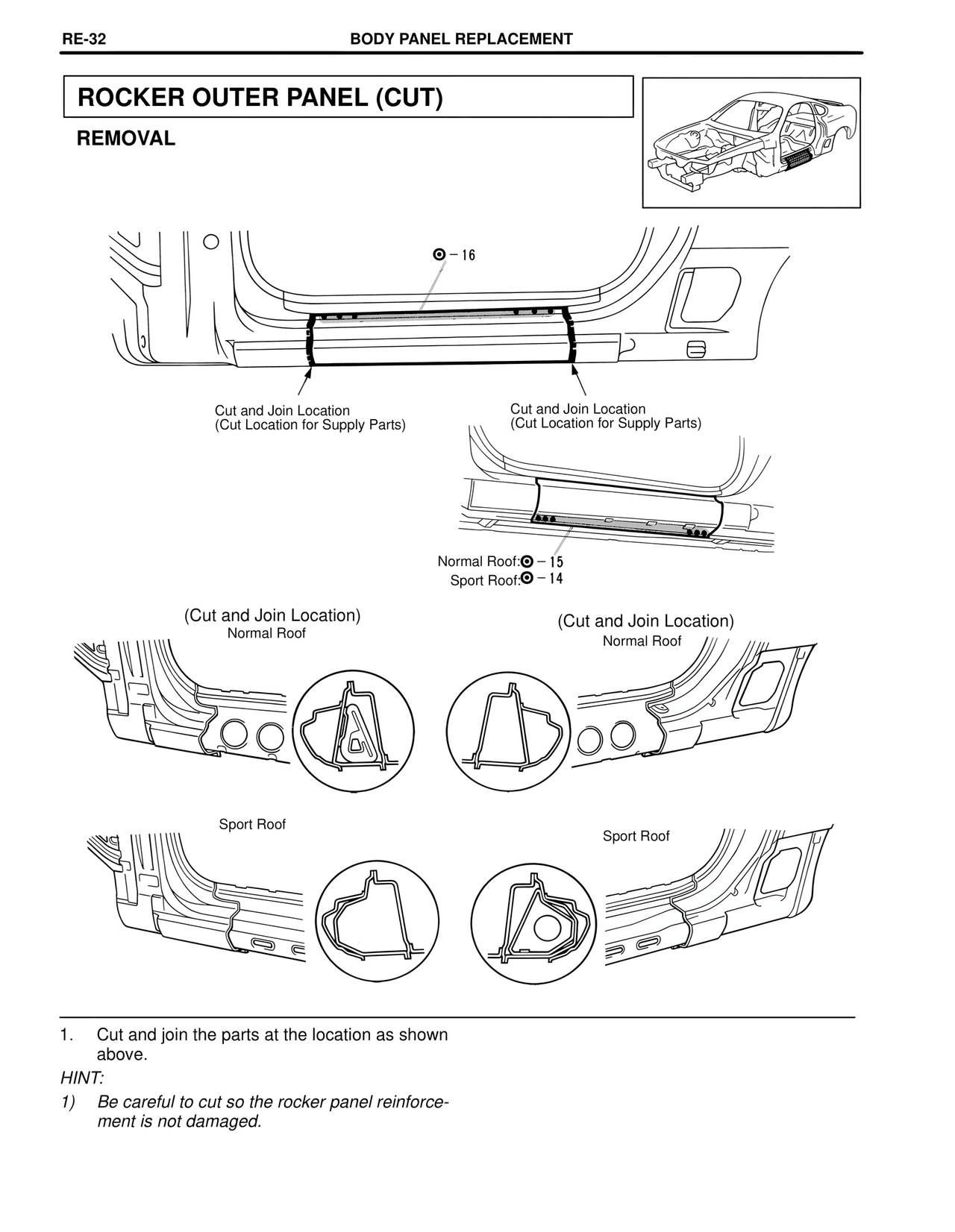

1.    Cut and join the parts at the location as shown
      above.

HINT:
1)    Be careful to cut so the rocker panel reinforce-
      ment is not damaged.
