RE-34                    BODY PANEL REPLACEMENT

QUARTER PANEL (CUT)

REMOVAL

(Cut and Join Location)

200 mm

Cut and Join Location

Cut and Join
Location

100 mm

(Cut and Join Location)

⊙ — 11

⊙ — 25

⊙ — 23

Cut and Join Location
(Cut Location for Supply Parts)

(Cut and Join Location)
Normal Roof

(Cut and Join Location)
Sport Roof

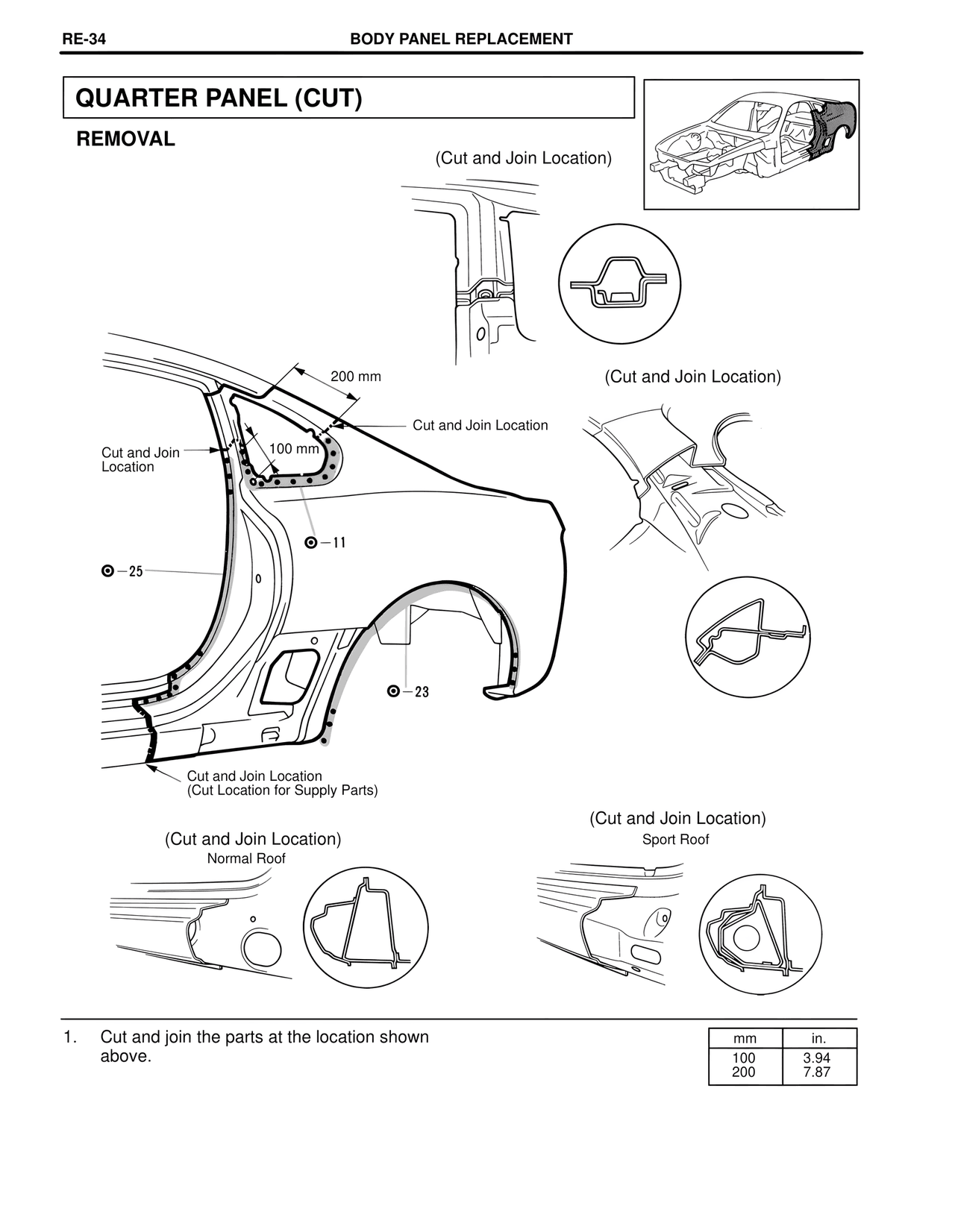

1.    Cut and join the parts at the location shown
      above.

mm        in.
100       3.94
200       7.87
