RE-38                    BODY PANEL REPLACEMENT

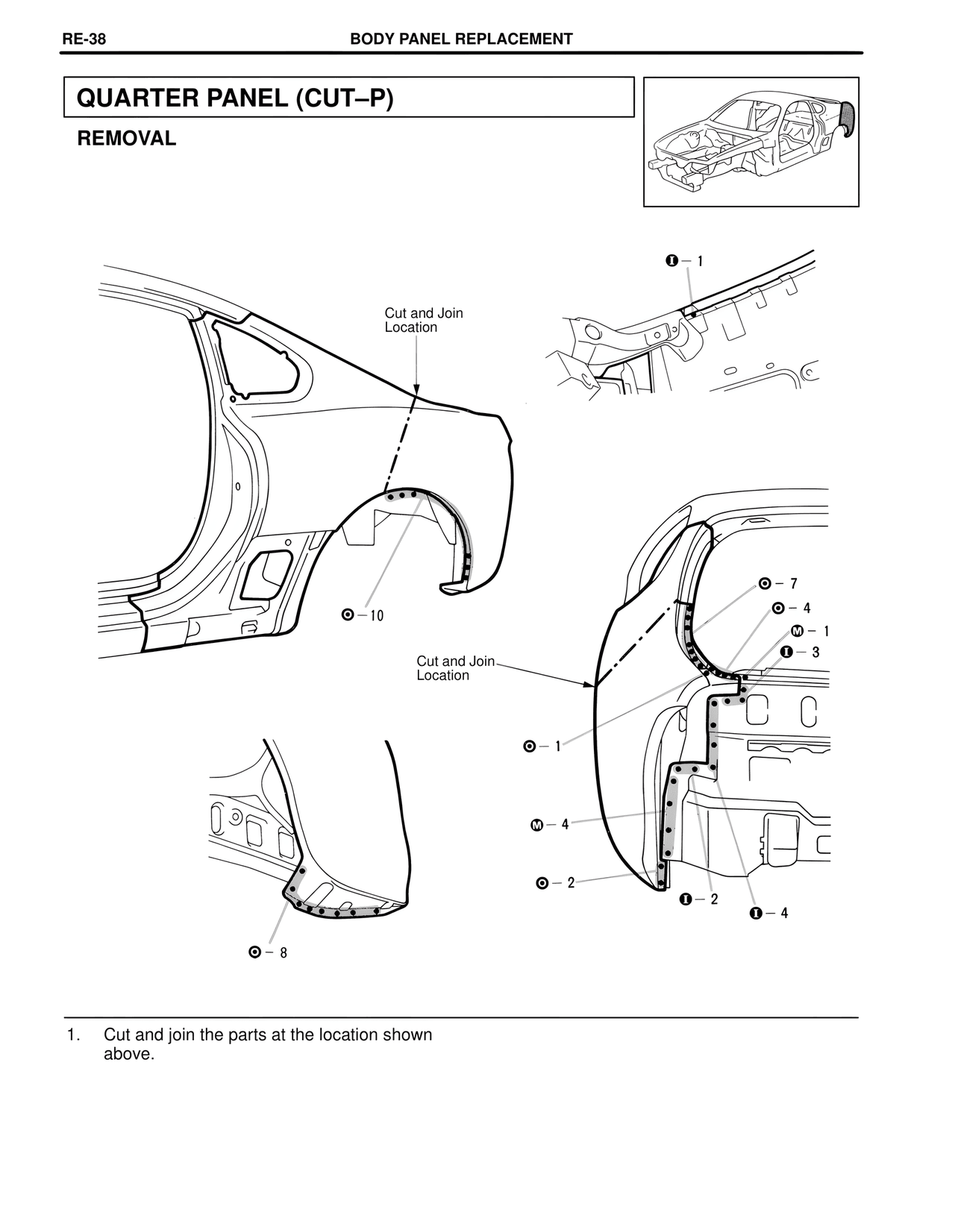

QUARTER PANEL (CUT–P)

REMOVAL

Cut and Join
Location

Cut and Join
Location

❶ – 1

⊙ – 7
⊙ – 4
Ⓜ – 1
❶ – 3

⊙ – 1

Ⓜ – 4

⊙ – 2
❶ – 2
❶ – 4

⊙ – 10

⊙ – 1

⊙ – 8

1.    Cut and join the parts at the location shown
      above.
