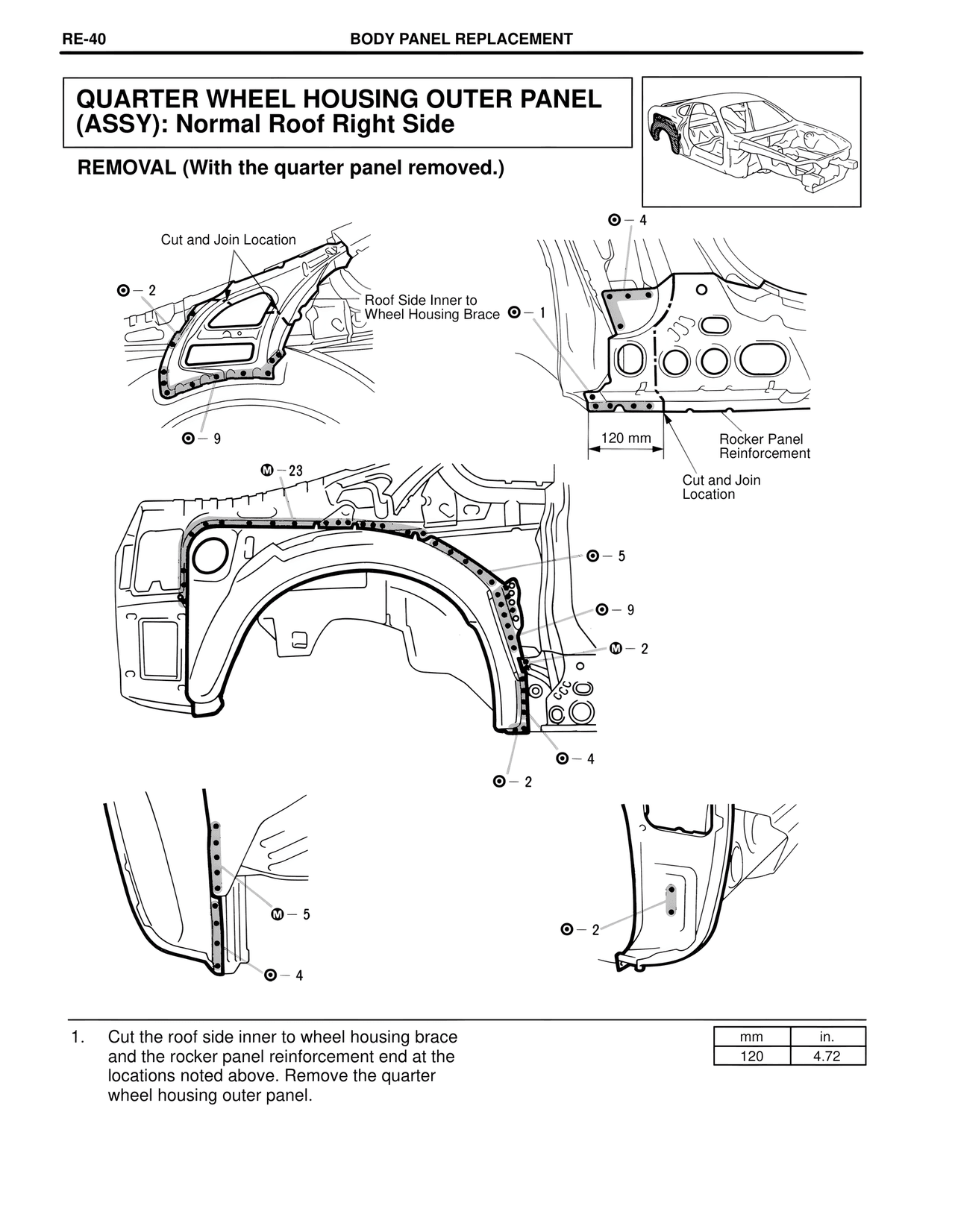

CR/Collision Repair — Quarter Wheel Housing Outer Panel (Assy): Normal Roof Right Side, page 63

RE-40                    BODY PANEL REPLACEMENT

QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Normal Roof Right Side

REMOVAL (With the quarter panel removed.)

Cut and Join Location

Roof Side Inner to
Wheel Housing Brace ⊙ — 1

⊙ — 2

⊙ — 4

o

120 mm          Rocker Panel
                Reinforcement

                Cut and Join
                Location

⊙ — 9

Ⓜ — 23

⊙ — 5

⊙ — 9

Ⓜ — 2

o

⊙ — 4

⊙ — 2

Ⓜ — 5

⊙ — 4

⊙ — 2

1.    Cut the roof side inner to wheel housing brace
      and the rocker panel reinforcement end at the
      locations noted above. Remove the quarter
      wheel housing outer panel.

mm     in.
120    4.72
