RE-56                    BODY PANEL REPLACEMENT

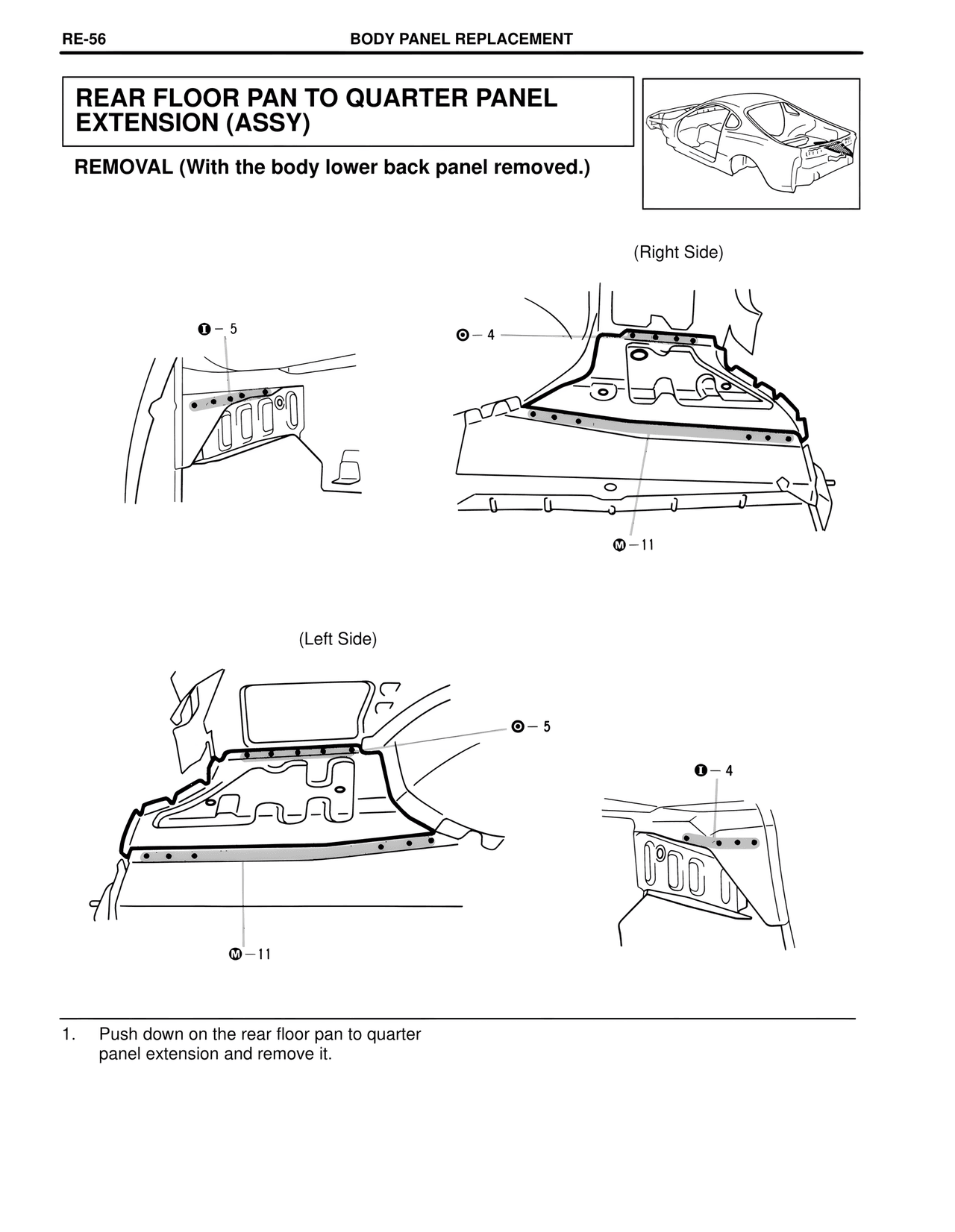

REAR FLOOR PAN TO QUARTER PANEL
EXTENSION (ASSY)

REMOVAL (With the body lower back panel removed.)

(Right Side)

❶ - 5

⊙ - 4

❿ - 11

(Left Side)

⊙ - 5

❶ - 4

❿ - 11

1.    Push down on the rear floor pan to quarter
      panel extension and remove it.
