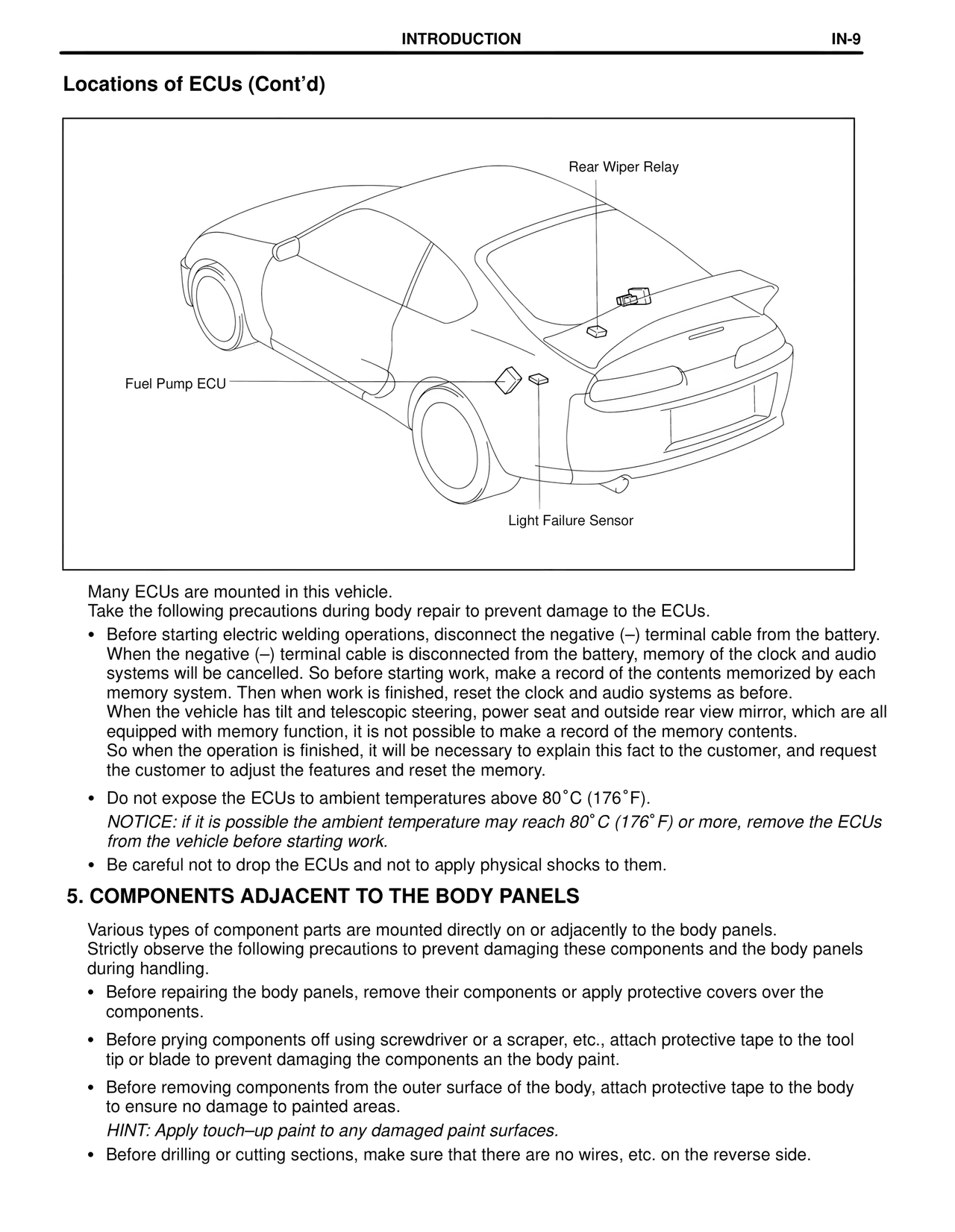

Locations of ECUs (Cont'd) Rear Wiper Relay Fuel Pump ECU Light Failure Sensor Many ECUs are mounted in this vehicle. Take the following precautions during body repair to prevent damage to the ECUs. • Before starting electric welding operations, disconnect the negative (–) terminal cable from the battery. When the negative (–) terminal cable is disconnected from the battery, memory of the clock and audio systems will be cancelled. So before starting work, make a record of the contents memorized by each memory system. Then when work is finished, reset the clock and audio systems as before. When the vehicle has tilt and telescopic steering, power seat and outside rear view mirror, which are all equipped with memory function, it is not possible to make a record of the memory contents. So when the operation is finished, it will be necessary to explain this fact to the customer, and request the customer to adjust the features and reset the memory. • Do not expose the ECUs to ambient temperatures above 80˚C (176˚F). NOTICE: if it is possible the ambient temperature may reach 80˚C (176˚F) or more, remove the ECUs from the vehicle before starting work. • Be careful not to drop the ECUs and not to apply physical shocks to them. 5. COMPONENTS ADJACENT TO THE BODY PANELS Various types of component parts are mounted directly on or adjacently to the body panels. Strictly observe the following precautions to prevent damaging these components and the body panels during handling. • Before repairing the body panels, remove their components or apply protective covers over the components. • Before prying components off using screwdriver or a scraper, etc., attach protective tape to the tool tip or blade to prevent damaging the components an the body paint. • Before removing components from the outer surface of the body, attach protective tape to the body to ensure no damage to painted areas. HINT: Apply touch–up paint to any damaged paint surfaces. • Before drilling or cutting sections, make sure that there are no wires, etc. on the reverse side.
