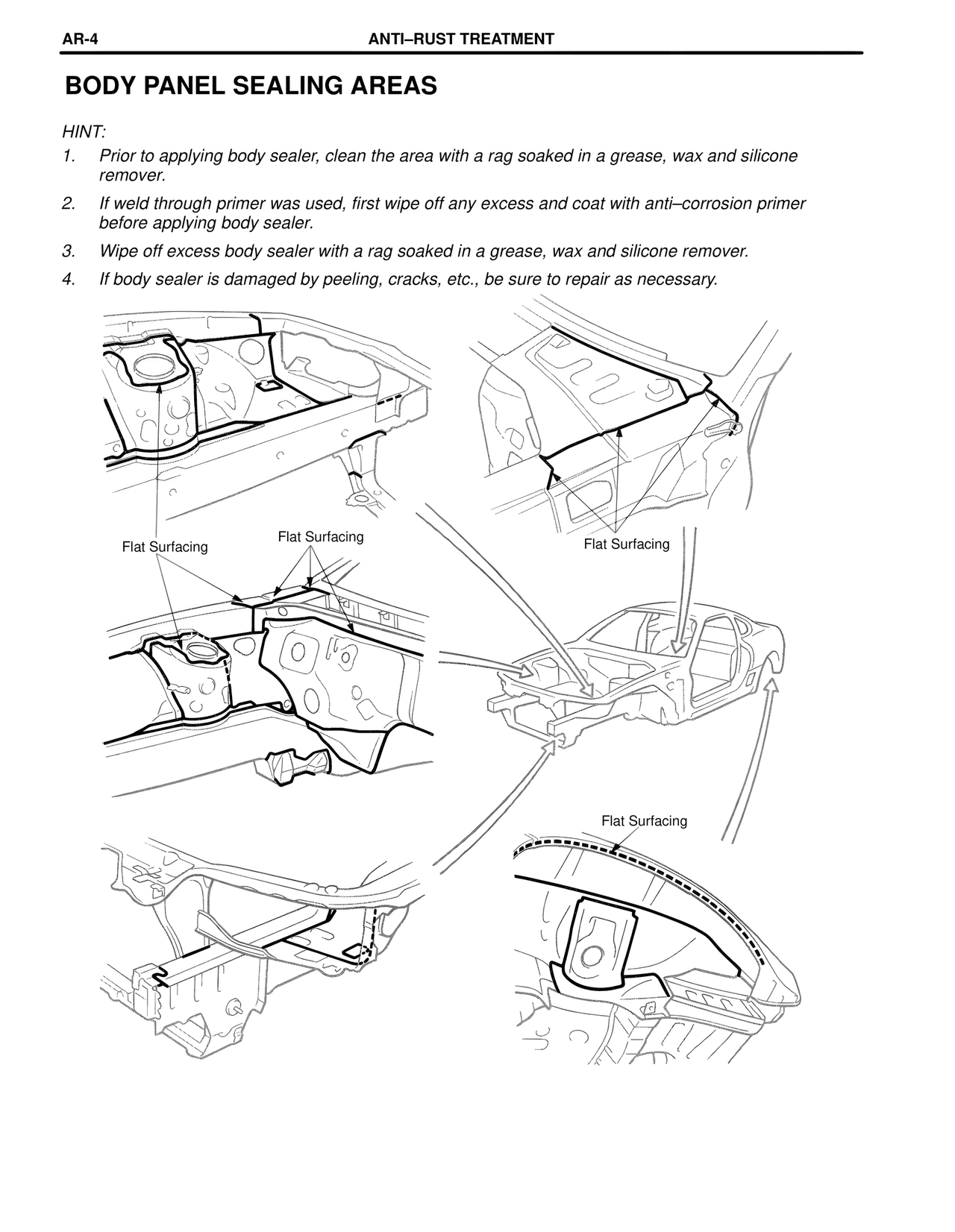

BODY PANEL SEALING AREAS — MK4 Supra Collision Repair, page 92
100%
AR-4 ANTI–RUST TREATMENT BODY PANEL SEALING AREAS HINT: 1. Prior to applying body sealer, clean the area with a rag soaked in a grease, wax and silicone remover. 2. If weld through primer was used, first wipe off any excess and coat with anti–corrosion primer before applying body sealer. 3. Wipe off excess body sealer with a rag soaked in a grease, wax and silicone remover. 4. If body sealer is damaged by peeling, cracks, etc., be sure to repair as necessary. Flat Surfacing Flat Surfacing Flat Surfacing Flat Surfacing
