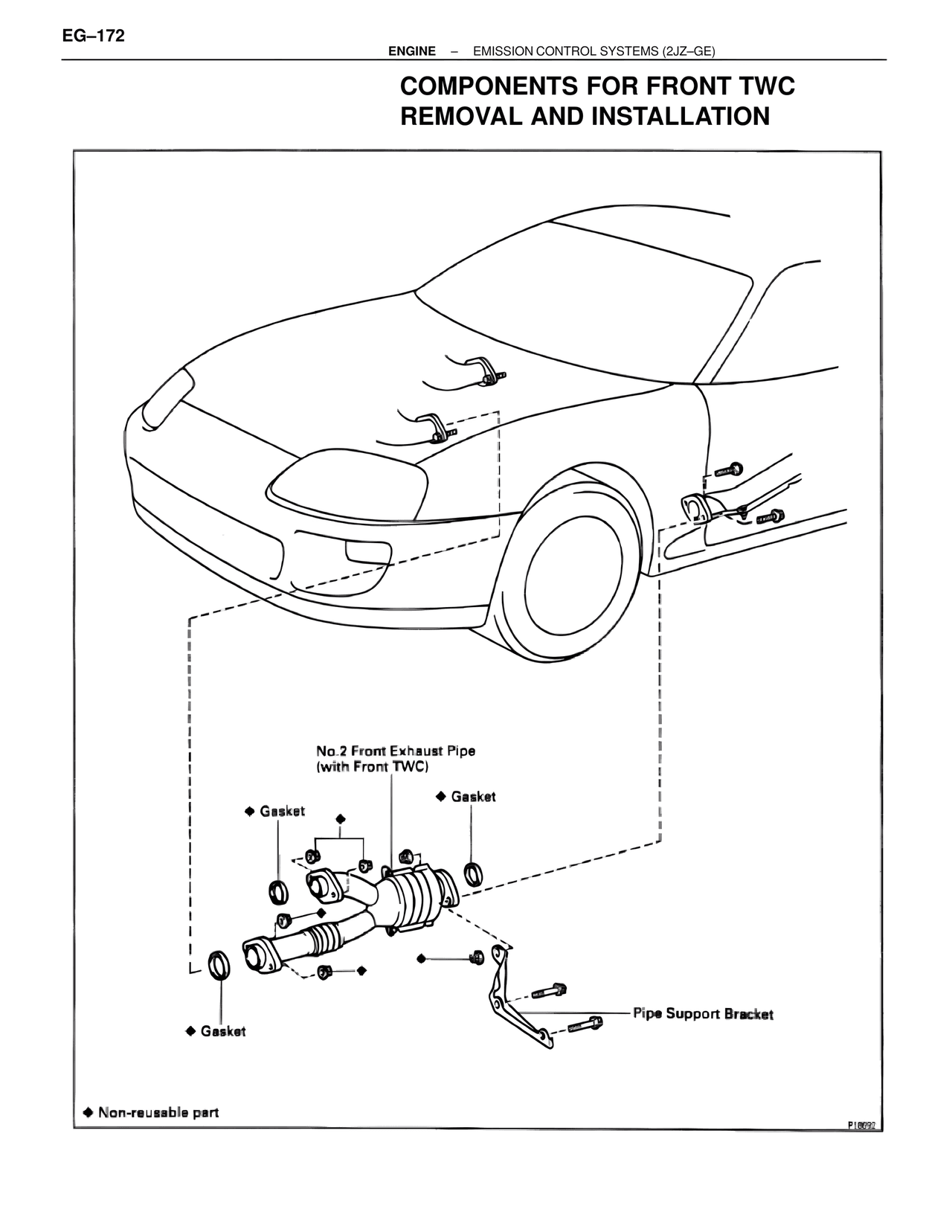

EGE/Emission System 2JZ-GE — Components for Front TWC Removal and Installation, page 11

EG–172

ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GE)

COMPONENTS FOR FRONT TWC
REMOVAL AND INSTALLATION

No.2 Front Exhaust Pipe
(with Front TWC)

◆ Gasket

◆ Gasket

◆ Gasket

Pipe Support Bracket

◆ Non-reusable part

P18092
