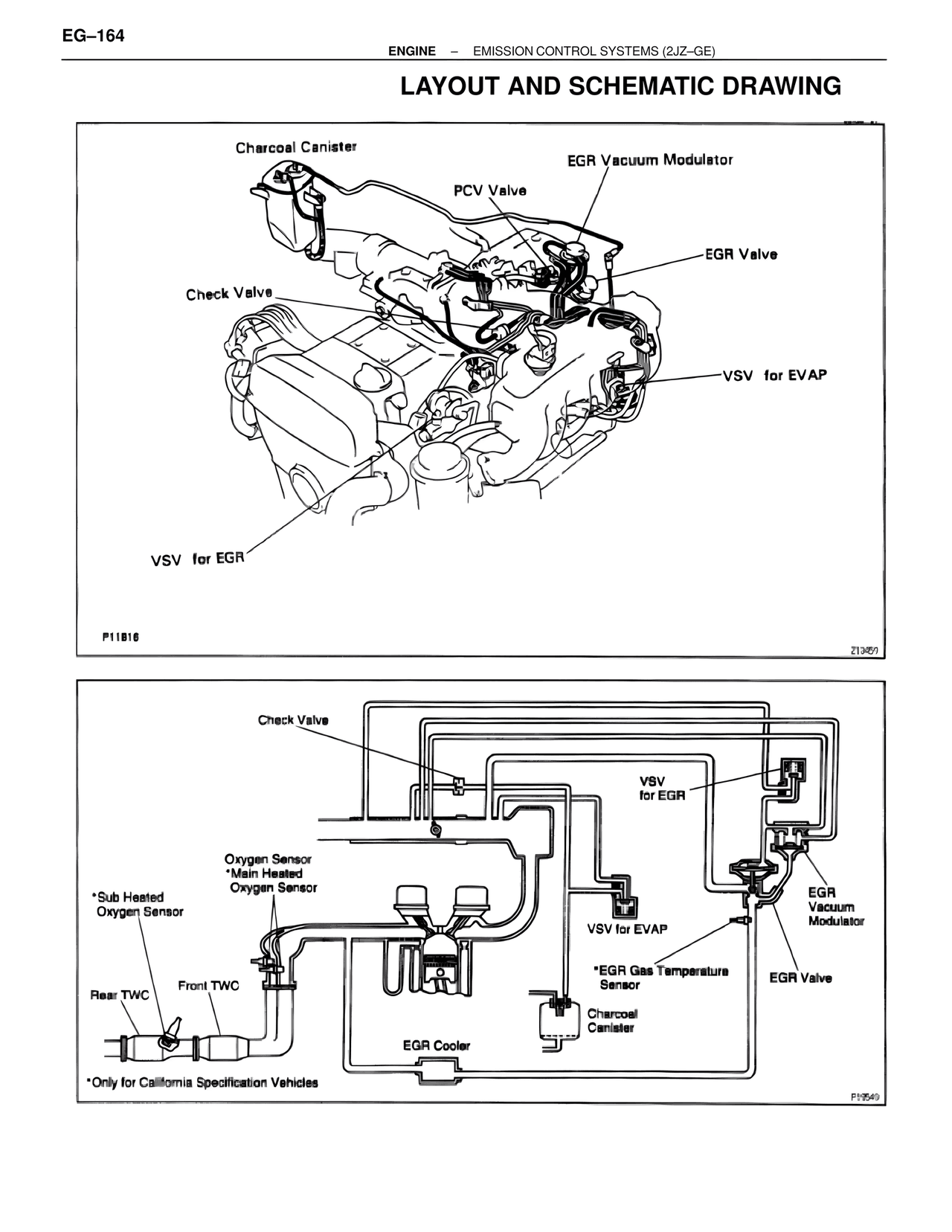

EG–164 ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GE) LAYOUT AND SCHEMATIC DRAWING Charcoal Canister EGR Vacuum Modulator PCV Valve EGR Valve Check Valve VSV for EVAP VSV for EGR P11816 213459 Check Valve VSV for EGR Oxygen Sensor *Main Heated Oxygen Sensor *Sub Heated Oxygen Sensor VSV for EVAP EGR Vacuum Modulator *EGR Gas Temperature Sensor EGR Valve Rear TWC Front TWC Charcoal Canister EGR Cooler *Only for California Specification Vehicles P19549
