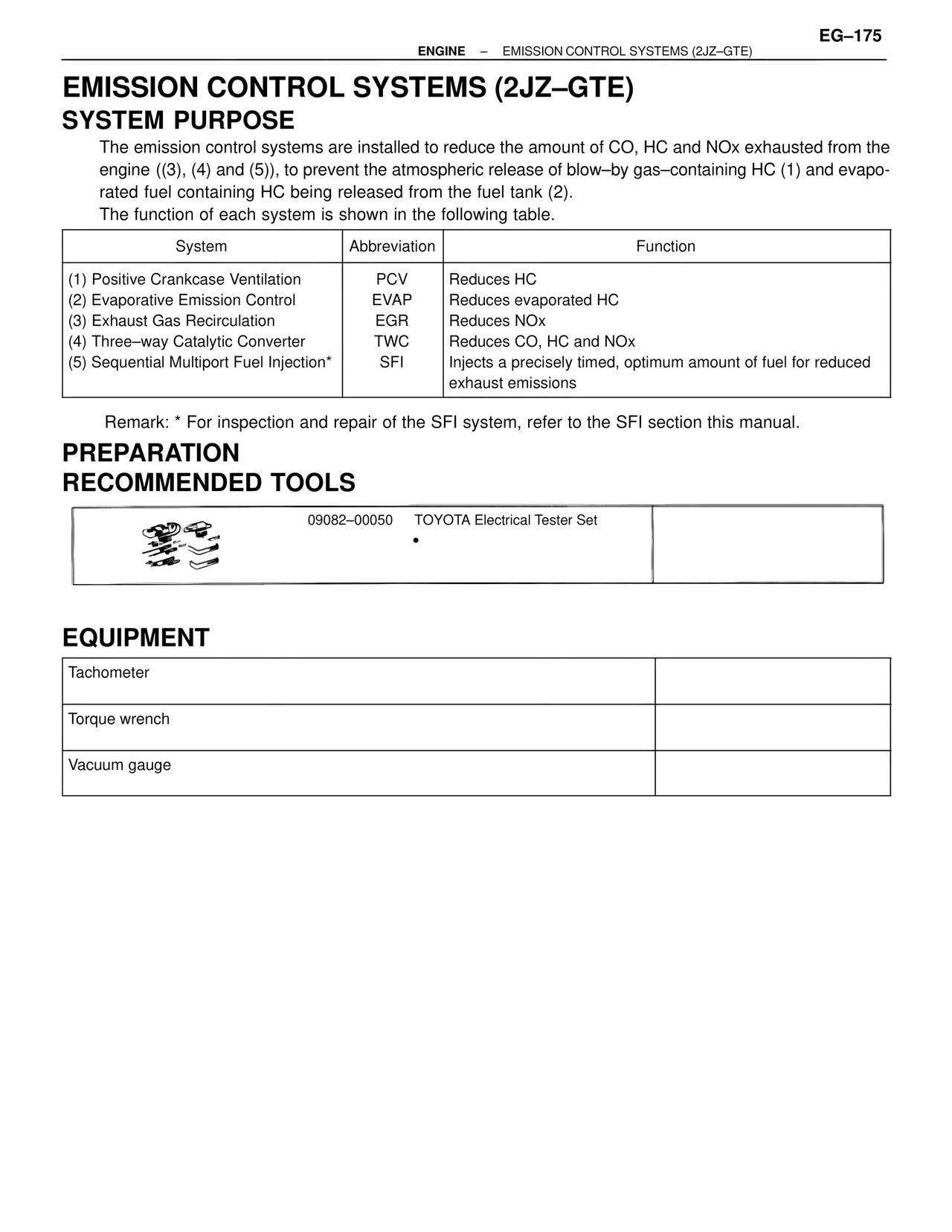

EMISSION CONTROL SYSTEMS (2JZ–GTE)
SYSTEM PURPOSE
The emission control systems are installed to reduce the amount of CO, HC and NOx exhausted from the
engine ((3), (4) and (5)), to prevent the atmospheric release of blow–by gas–containing HC (1) and evapo-
rated fuel containing HC being released from the fuel tank (2).
The function of each system is shown in the following table.
System | Abbreviation | Function
(1) Positive Crankcase Ventilation | PCV | Reduces HC
(2) Evaporative Emission Control | EVAP | Reduces evaporated HC
(3) Exhaust Gas Recirculation | EGR | Reduces NOx
(4) Three–way Catalytic Converter | TWC | Reduces CO, HC and NOx
(5) Sequential Multiport Fuel Injection* | SFI | Injects a precisely timed, optimum amount of fuel for reduced exhaust emissions
Remark: * For inspection and repair of the SFI system, refer to the SFI section this manual.
PREPARATION
RECOMMENDED TOOLS
09082–00050 TOYOTA Electrical Tester Set
•
EQUIPMENT
Tachometer
Torque wrench
Vacuum gauge
