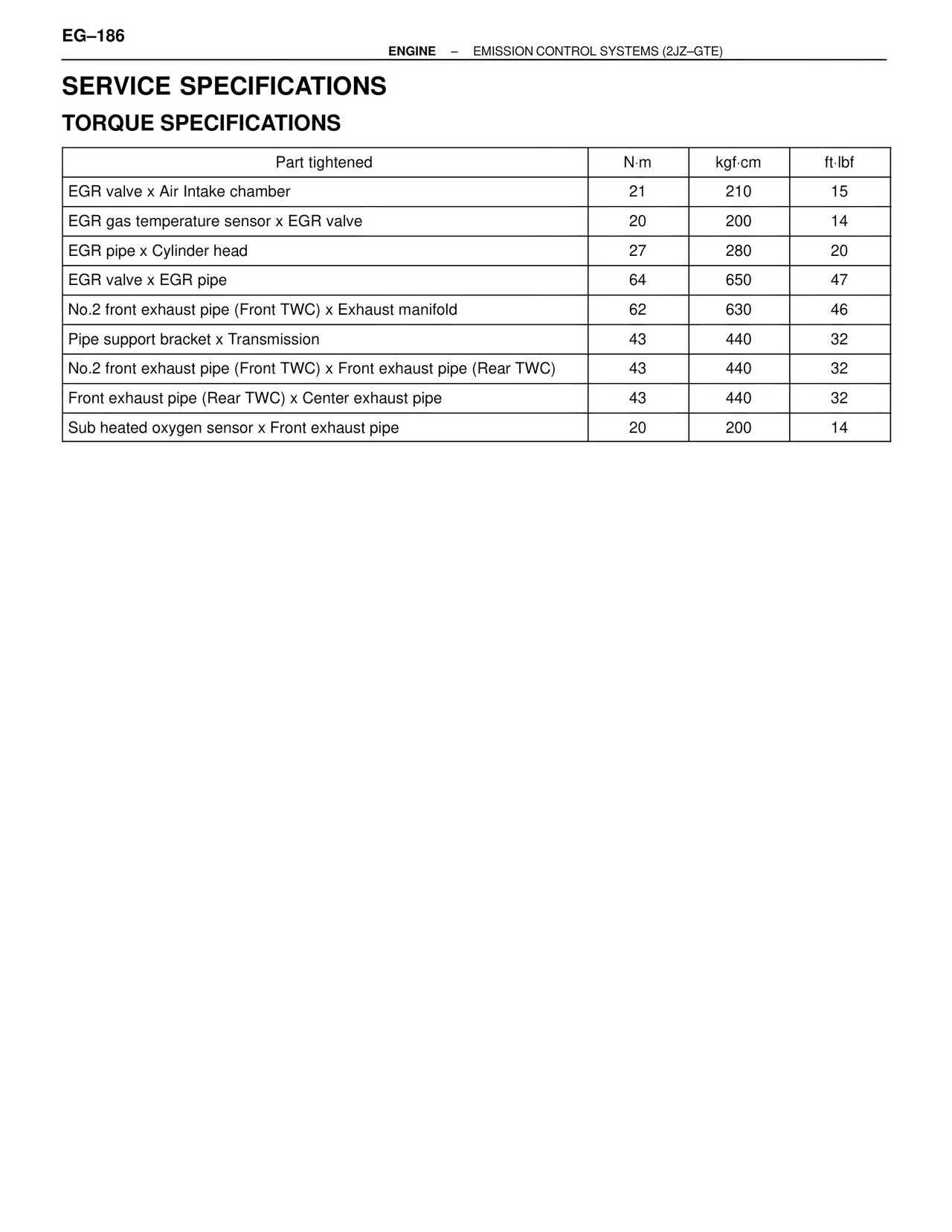

EG–186
ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GTE)
SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
Part tightened | N·m | kgf·cm | ft·lbf
EGR valve x Air Intake chamber | 21 | 210 | 15
EGR gas temperature sensor x EGR valve | 20 | 200 | 14
EGR pipe x Cylinder head | 27 | 280 | 20
EGR valve x EGR pipe | 64 | 650 | 47
No.2 front exhaust pipe (Front TWC) x Exhaust manifold | 62 | 630 | 46
Pipe support bracket x Transmission | 43 | 440 | 32
No.2 front exhaust pipe (Front TWC) x Front exhaust pipe (Rear TWC) | 43 | 440 | 32
Front exhaust pipe (Rear TWC) x Center exhaust pipe | 43 | 440 | 32
Sub heated oxygen sensor x Front exhaust pipe | 20 | 200 | 14
