EG–176
ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GTE)

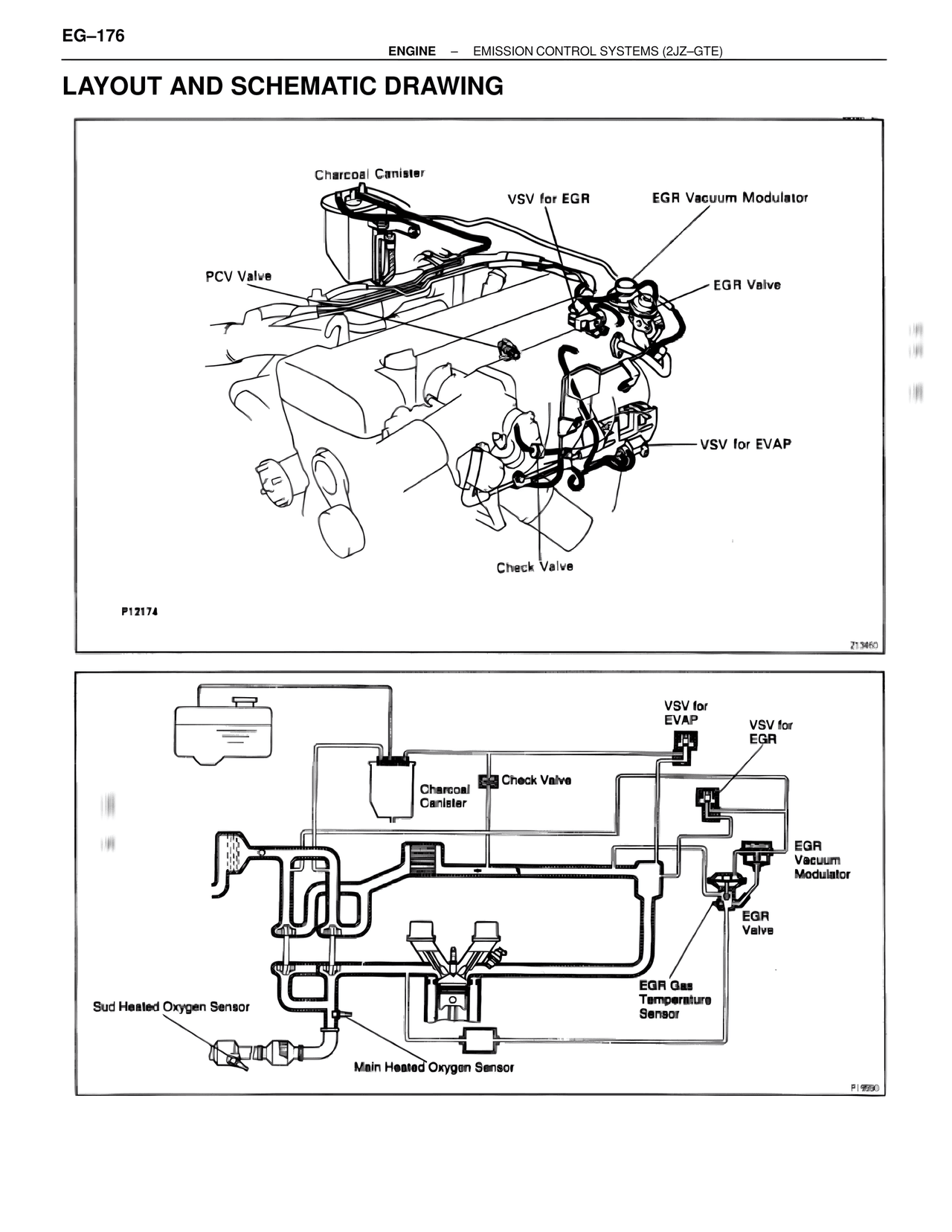

LAYOUT AND SCHEMATIC DRAWING
Charcoal Canister
VSV for EGR
EGR Vacuum Modulator
PCV Valve
EGR Valve
VSV for EVAP
Check Valve
P12174
213460
VSV for
EVAP
VSV for
EGR
Check Valve
Charcoal
Canister
EGR
Vacuum
Modulator
EGR
Valve
EGR Gas
Temperature
Sensor
Sud Heated Oxygen Sensor
Main Heated Oxygen Sensor
P19950
