EG–181
ENGINE – EMISSION CONTROL SYSTEMS (2JZ–GTE)
Engine Stopped
P
Q
Air
P12319
Engine at
3,500 rpm
P
Q
Air
P12373

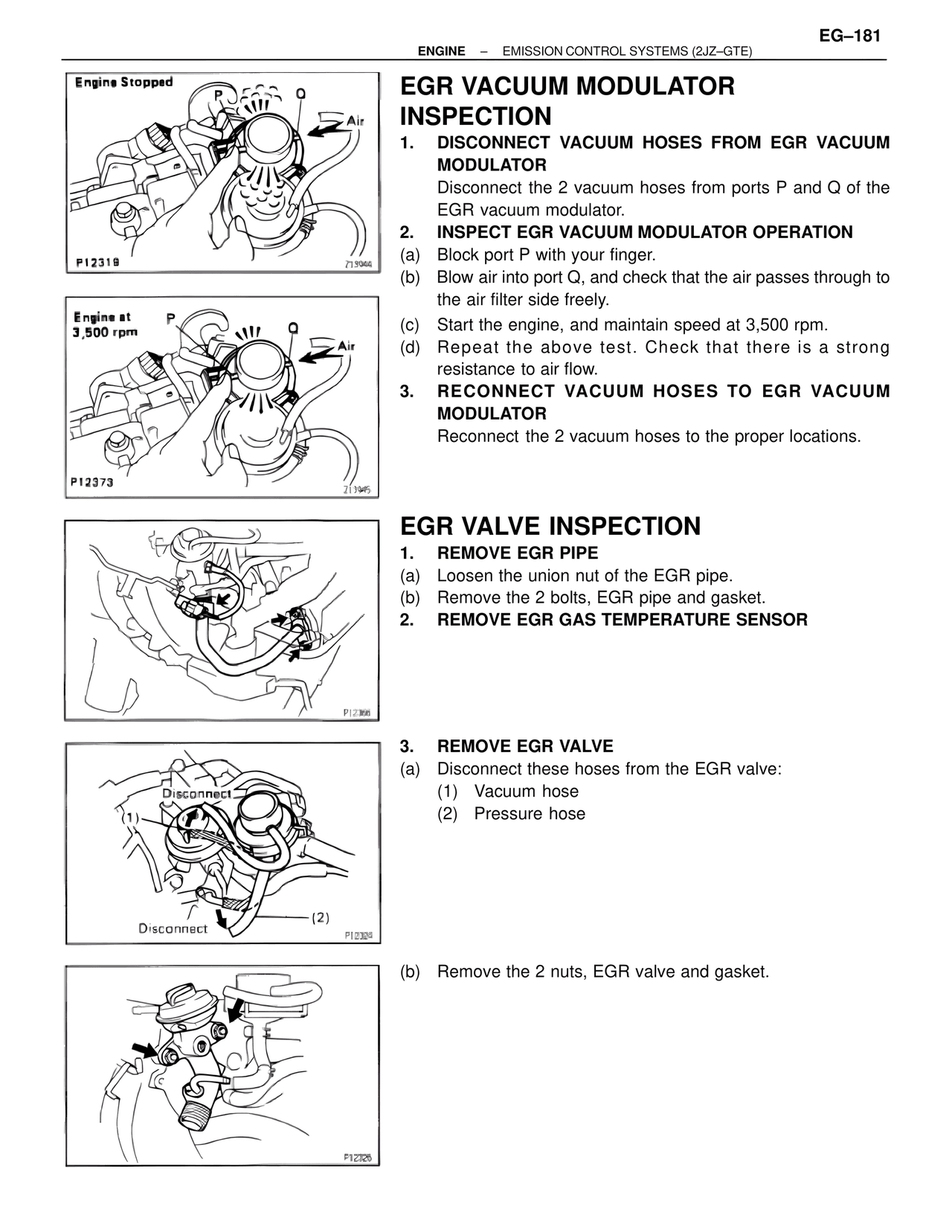

EGR VACUUM MODULATOR INSPECTION
1. DISCONNECT VACUUM HOSES FROM EGR VACUUM MODULATOR
Disconnect the 2 vacuum hoses from ports P and Q of the EGR vacuum modulator.
2. INSPECT EGR VACUUM MODULATOR OPERATION
(a) Block port P with your finger.
(b) Blow air into port Q, and check that the air passes through to the air filter side freely.
(c) Start the engine, and maintain speed at 3,500 rpm.
(d) Repeat the above test. Check that there is a strong resistance to air flow.
3. RECONNECT VACUUM HOSES TO EGR VACUUM MODULATOR
Reconnect the 2 vacuum hoses to the proper locations.
P12366
EGR VALVE INSPECTION
1. REMOVE EGR PIPE
(a) Loosen the union nut of the EGR pipe.
(b) Remove the 2 bolts, EGR pipe and gasket.
2. REMOVE EGR GAS TEMPERATURE SENSOR
Disconnect
(1)
(2)
Disconnect
P12324
3. REMOVE EGR VALVE
(a) Disconnect these hoses from the EGR valve:
(1) Vacuum hose
(2) Pressure hose
P12325
(b) Remove the 2 nuts, EGR valve and gasket.
