EM/Engine Mechanical, page 101

EG–101
ENGINE – ENGINE MECHANICAL

P04470

Mark
1, 2, 3, 4 or 5

Mark
1, 2 or 3

Mark
0, 1 or 2

P02173
P02423
No.1
No.2
No.3
No.4
No.5
No.6
202301

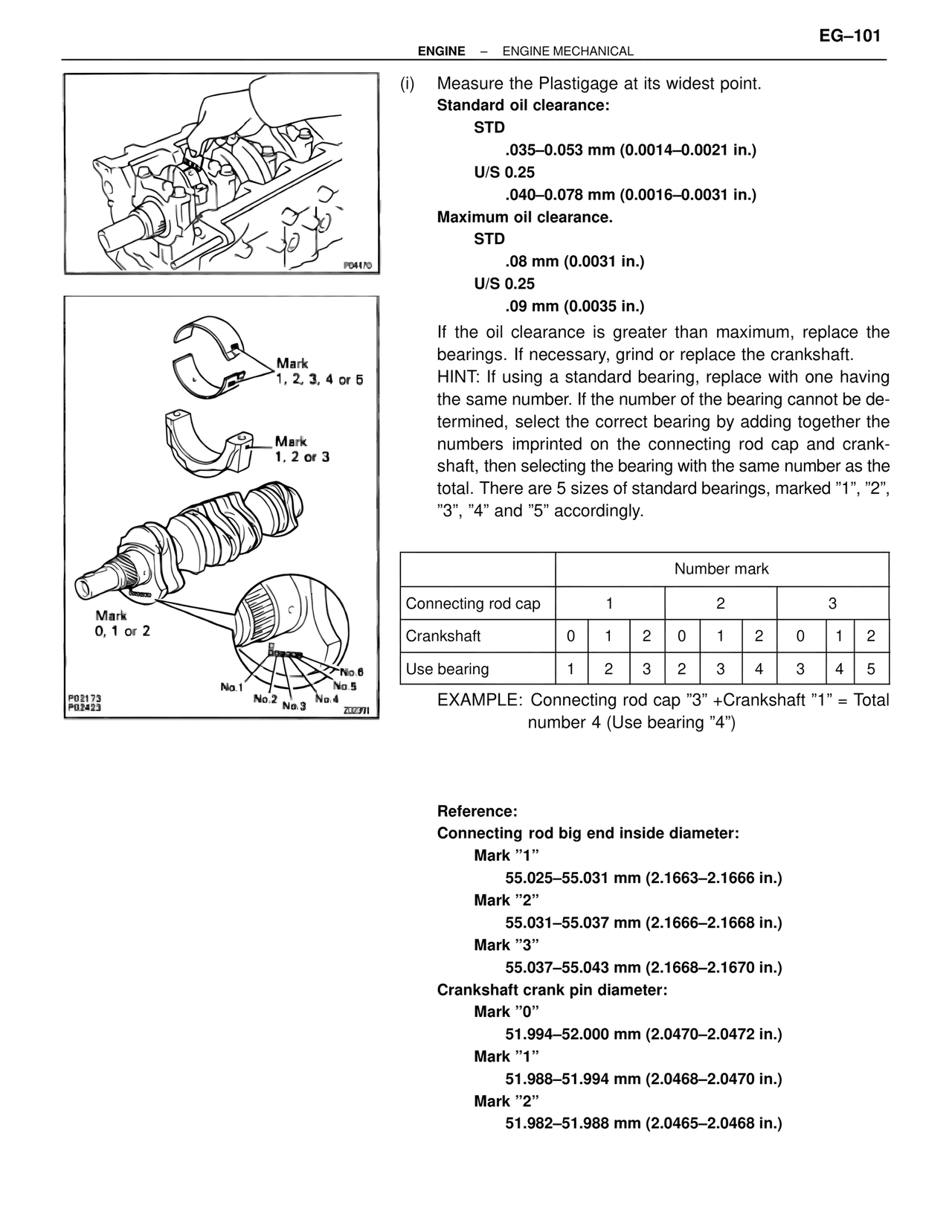

(i) Measure the Plastigage at its widest point.
Standard oil clearance:
    STD
        .035–.053 mm (0.0014–0.0021 in.)
    U/S 0.25
        .040–.078 mm (0.0016–0.0031 in.)
Maximum oil clearance.
    STD
        .08 mm (0.0031 in.)
    U/S 0.25
        .09 mm (0.0035 in.)

If the oil clearance is greater than maximum, replace the
bearings. If necessary, grind or replace the crankshaft.
HINT: If using a standard bearing, replace with one having
the same number. If the number of the bearing cannot be de-
termined, select the correct bearing by adding together the
numbers imprinted on the connecting rod cap and crank-
shaft, then selecting the bearing with the same number as the
total. There are 5 sizes of standard bearings, marked "1", "2",
"3", "4" and "5" accordingly.

Number mark
Connecting rod cap          1                    2                    3
Crankshaft         0    1    2    0    1    2    0    1    2
Use bearing        1    2    3    2    3    4    3    4    5

EXAMPLE: Connecting rod cap "3" +Crankshaft "1" = Total
number 4 (Use bearing "4")

Reference:
Connecting rod big end inside diameter:
    Mark "1"
        55.025–55.031 mm (2.1663–2.1666 in.)
    Mark "2"
        55.031–55.037 mm (2.1666–2.1668 in.)
    Mark "3"
        55.037–55.043 mm (2.1668–2.1670 in.)
Crankshaft crank pin diameter:
    Mark "0"
        51.994–52.000 mm (2.0470–2.0472 in.)
    Mark "1"
        51.988–51.994 mm (2.0468–2.0470 in.)
    Mark "2"
        51.982–51.988 mm (2.0465–2.0468 in.)
