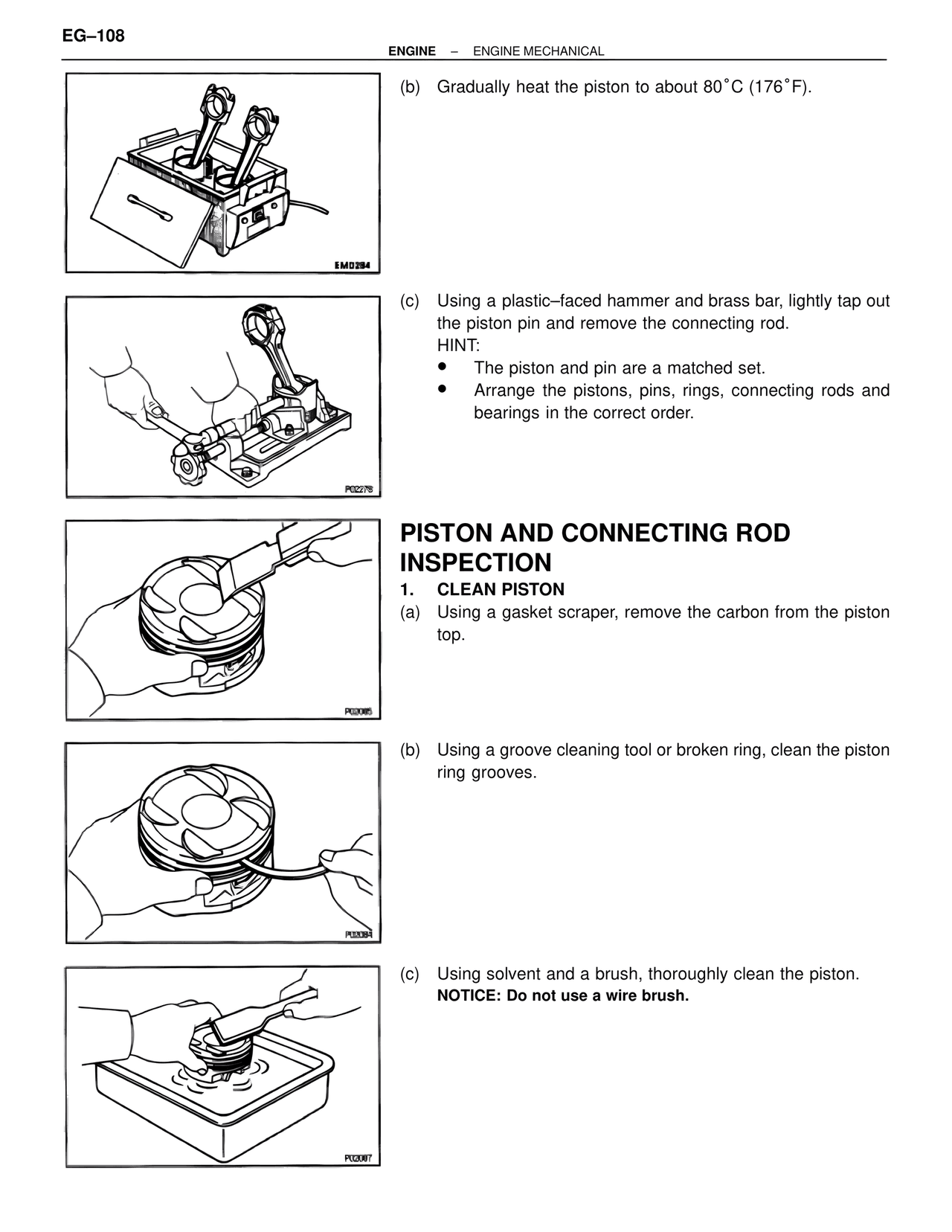

EM/Engine Mechanical — Piston and Connecting Rod Inspection, page 108

EG–108

ENGINE – ENGINE MECHANICAL

(b) Gradually heat the piston to about 80°C (176°F).

SM0294

(c) Using a plastic–faced hammer and brass bar, lightly tap out
the piston pin and remove the connecting rod.
HINT:
• The piston and pin are a matched set.
• Arrange the pistons, pins, rings, connecting rods and
bearings in the correct order.

P02279

PISTON AND CONNECTING ROD
INSPECTION
1. CLEAN PISTON
(a) Using a gasket scraper, remove the carbon from the piston
top.

P03085

(b) Using a groove cleaning tool or broken ring, clean the piston
ring grooves.

P03084

(c) Using solvent and a brush, thoroughly clean the piston.
NOTICE: Do not use a wire brush.

P03087
