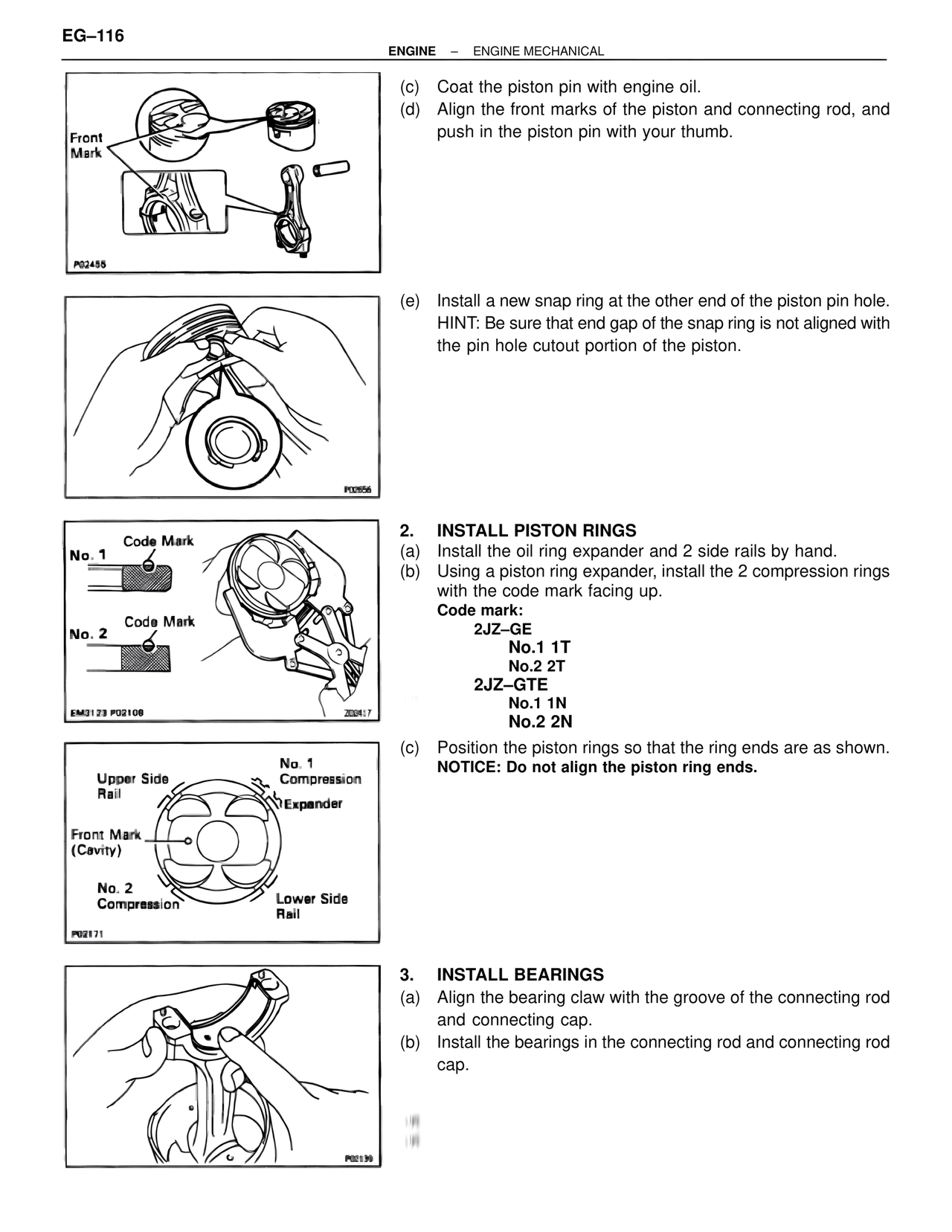

EM/Engine Mechanical, page 116

EG–116

ENGINE – ENGINE MECHANICAL

Front
Mark

P02455

(c) Coat the piston pin with engine oil.
(d) Align the front marks of the piston and connecting rod, and
push in the piston pin with your thumb.

P00656

(e) Install a new snap ring at the other end of the piston pin hole.
HINT: Be sure that end gap of the snap ring is not aligned with
the pin hole cutout portion of the piston.

Code Mark
No. 1

Code Mark
No. 2

EM3123 P02108                    202417

2. INSTALL PISTON RINGS
(a) Install the oil ring expander and 2 side rails by hand.
(b) Using a piston ring expander, install the 2 compression rings
with the code mark facing up.
Code mark:
2JZ–GE
No.1 1T
No.2 2T
2JZ–GTE
No.1 1N
No.2 2N

No. 1
Compression
Upper Side
Rail                    Expander

Front Mark
(Cavity)

No. 2
Compression          Lower Side
Rail

P02171

(c) Position the piston rings so that the ring ends are as shown.
NOTICE: Do not align the piston ring ends.

P02139

3. INSTALL BEARINGS
(a) Align the bearing claw with the groove of the connecting rod
and connecting cap.
(b) Install the bearings in the connecting rod and connecting rod
cap.
