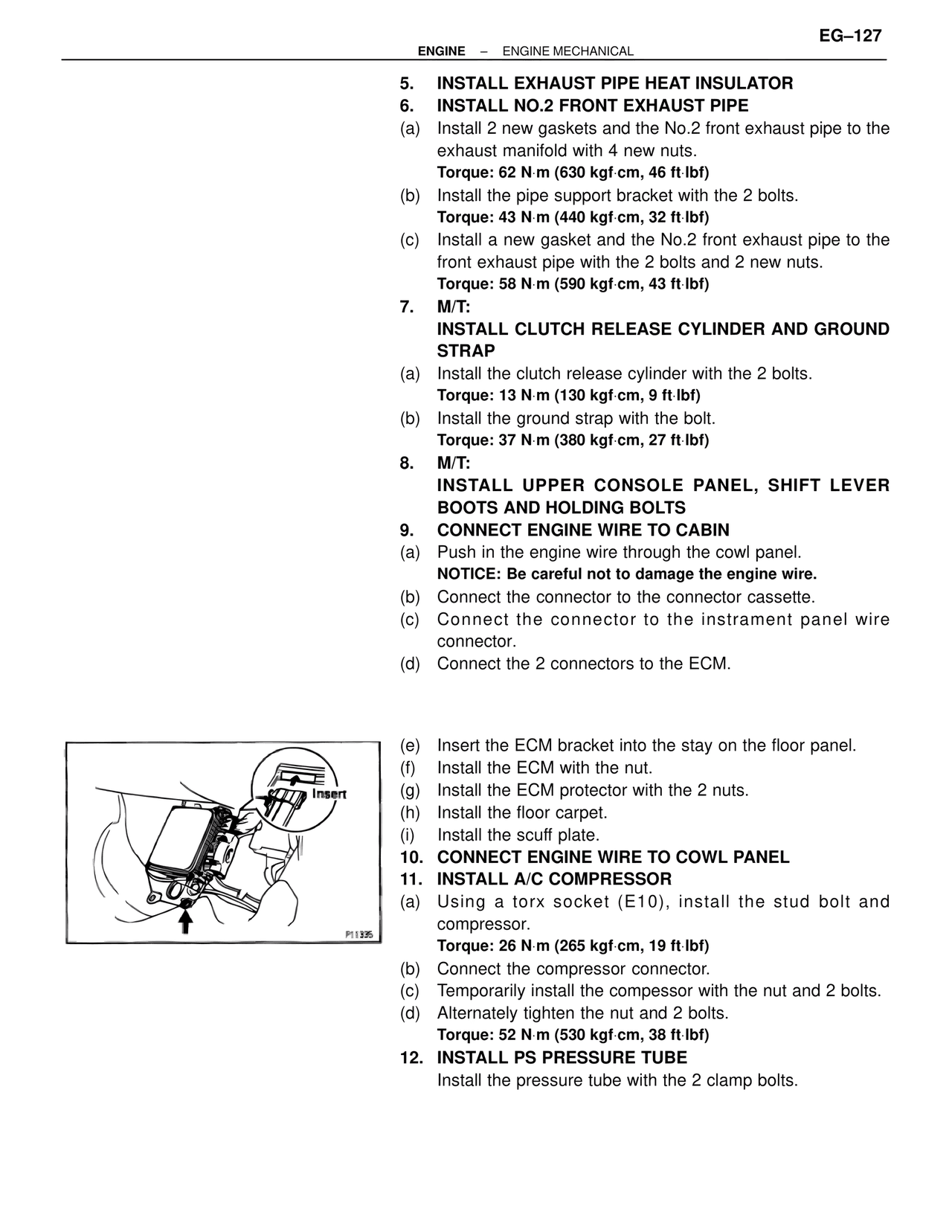

ENGINE – ENGINE MECHANICAL EG–127 5. INSTALL EXHAUST PIPE HEAT INSULATOR 6. INSTALL NO.2 FRONT EXHAUST PIPE (a) Install 2 new gaskets and the No.2 front exhaust pipe to the exhaust manifold with 4 new nuts. Torque: 62 N·m (630 kgf·cm, 46 ft·lbf) (b) Install the pipe support bracket with the 2 bolts. Torque: 43 N·m (440 kgf·cm, 32 ft·lbf) (c) Install a new gasket and the No.2 front exhaust pipe to the front exhaust pipe with the 2 bolts and 2 new nuts. Torque: 58 N·m (590 kgf·cm, 43 ft·lbf) 7. M/T: INSTALL CLUTCH RELEASE CYLINDER AND GROUND STRAP (a) Install the clutch release cylinder with the 2 bolts. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) (b) Install the ground strap with the bolt. Torque: 37 N·m (380 kgf·cm, 27 ft·lbf) 8. M/T: INSTALL UPPER CONSOLE PANEL, SHIFT LEVER BOOTS AND HOLDING BOLTS 9. CONNECT ENGINE WIRE TO CABIN (a) Push in the engine wire through the cowl panel. NOTICE: Be careful not to damage the engine wire. (b) Connect the connector to the connector cassette. (c) Connect the connector to the instrament panel wire connector. (d) Connect the 2 connectors to the ECM. Insert P11395 (e) Insert the ECM bracket into the stay on the floor panel. (f) Install the ECM with the nut. (g) Install the ECM protector with the 2 nuts. (h) Install the floor carpet. (i) Install the scuff plate. 10. CONNECT ENGINE WIRE TO COWL PANEL 11. INSTALL A/C COMPRESSOR (a) Using a torx socket (E10), install the stud bolt and compressor. Torque: 26 N·m (265 kgf·cm, 19 ft·lbf) (b) Connect the compressor connector. (c) Temporarily install the compessor with the nut and 2 bolts. (d) Alternately tighten the nut and 2 bolts. Torque: 52 N·m (530 kgf·cm, 38 ft·lbf) 12. INSTALL PS PRESSURE TUBE Install the pressure tube with the 2 clamp bolts.
