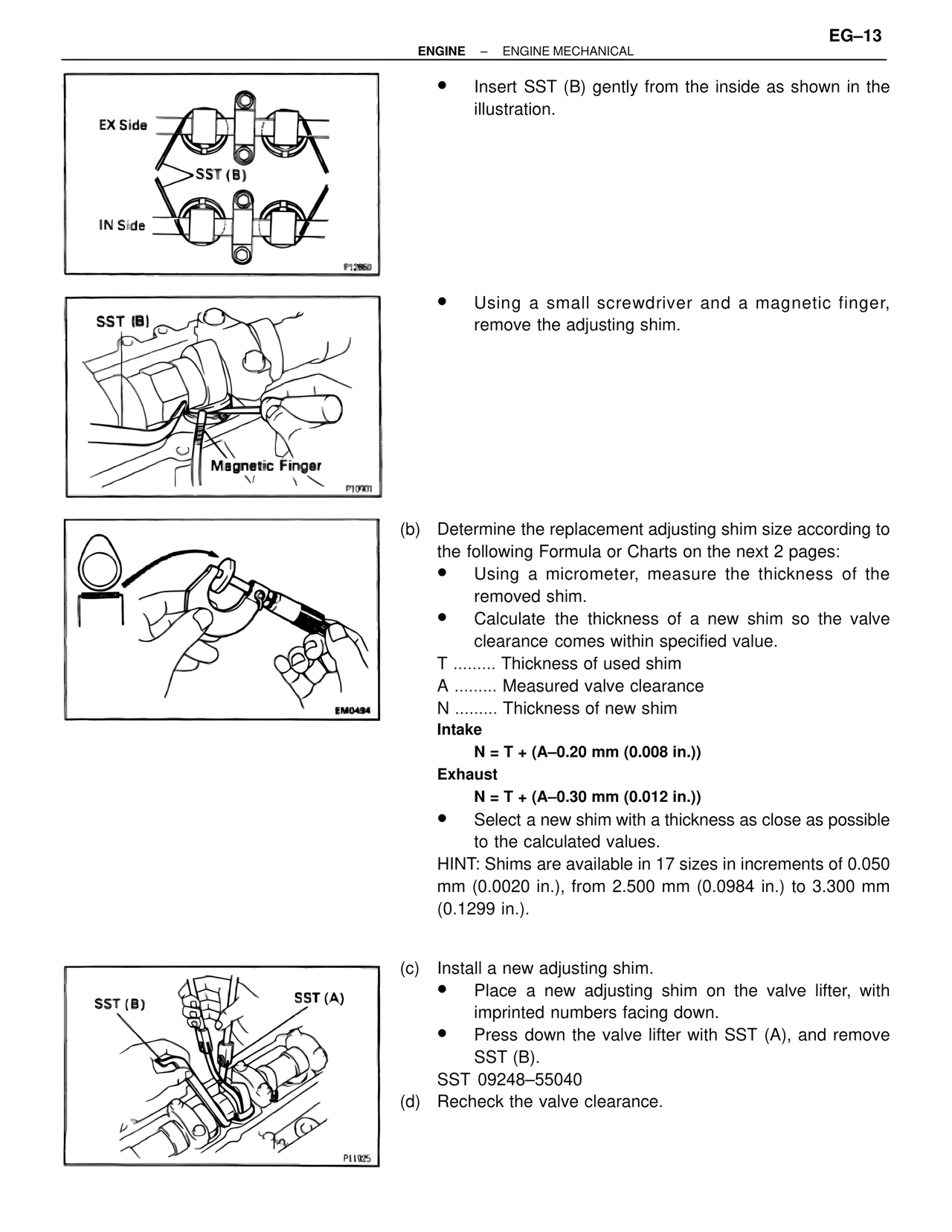

EM/Engine Mechanical, page 13

EG–13
ENGINE – ENGINE MECHANICAL

EX Side
SST (B)
IN Side
P12860

• Insert SST (B) gently from the inside as shown in the illustration.

SST (B)
Magnetic Finger
P10901

• Using a small screwdriver and a magnetic finger, remove the adjusting shim.

EM0494

(b) Determine the replacement adjusting shim size according to the following Formula or Charts on the next 2 pages:
• Using a micrometer, measure the thickness of the removed shim.
• Calculate the thickness of a new shim so the valve clearance comes within specified value.
T ......... Thickness of used shim
A ......... Measured valve clearance
N ......... Thickness of new shim
Intake
   N = T + (A–0.20 mm (0.008 in.))
Exhaust
   N = T + (A–0.30 mm (0.012 in.))
• Select a new shim with a thickness as close as possible to the calculated values.
HINT: Shims are available in 17 sizes in increments of 0.050 mm (0.0020 in.), from 2.500 mm (0.0984 in.) to 3.300 mm (0.1299 in.).

SST (B)     SST (A)
P11925

(c) Install a new adjusting shim.
• Place a new adjusting shim on the valve lifter, with imprinted numbers facing down.
• Press down the valve lifter with SST (A), and remove SST (B).
SST 09248–55040
(d) Recheck the valve clearance.
