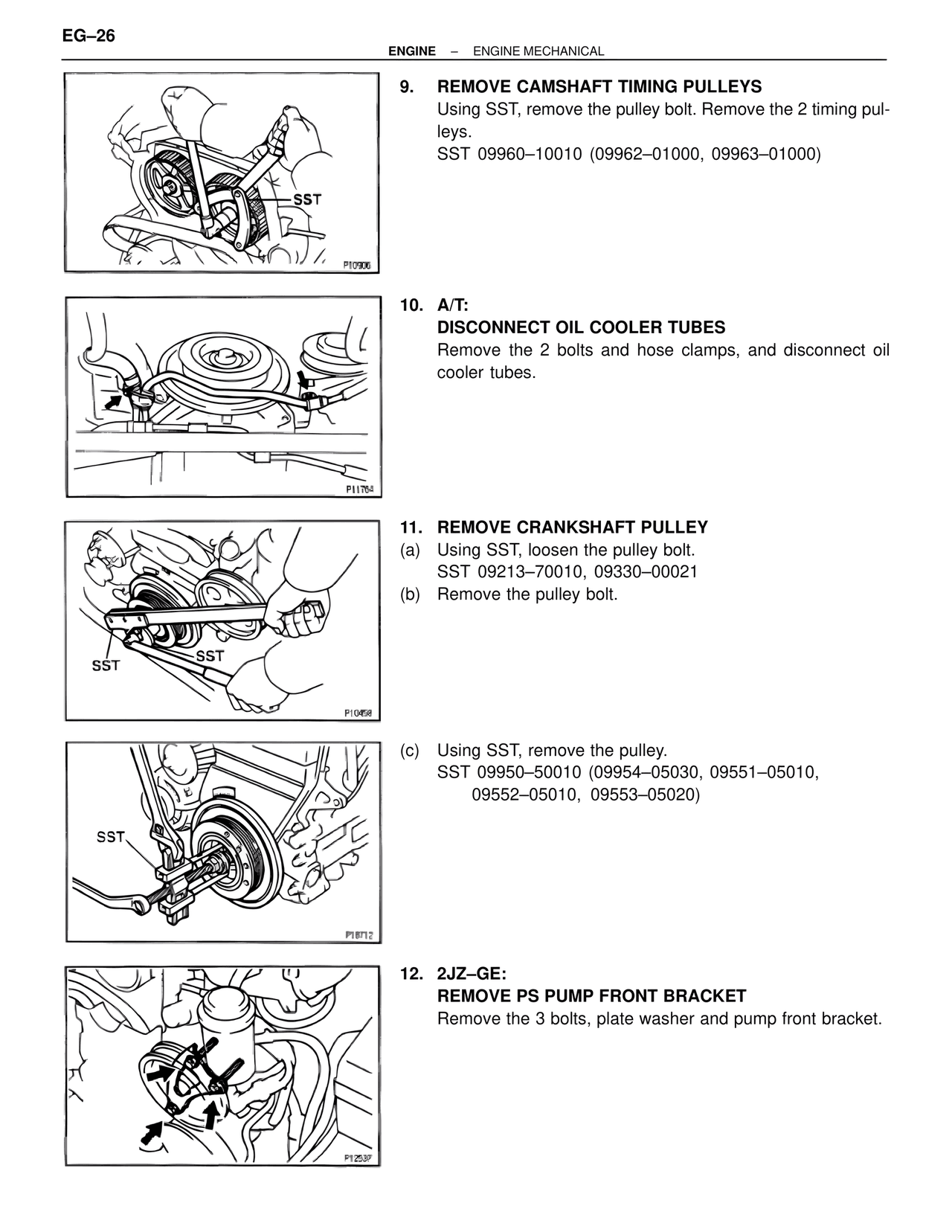

EG–26
ENGINE – ENGINE MECHANICAL
9. REMOVE CAMSHAFT TIMING PULLEYS
Using SST, remove the pulley bolt. Remove the 2 timing pulleys.
SST 09960–10010 (09962–01000, 09963–01000)
SST
P10906
10. A/T:
DISCONNECT OIL COOLER TUBES
Remove the 2 bolts and hose clamps, and disconnect oil cooler tubes.
P11764
11. REMOVE CRANKSHAFT PULLEY
(a) Using SST, loosen the pulley bolt.
SST 09213–70010, 09330–00021
(b) Remove the pulley bolt.
SST SST
P10458
(c) Using SST, remove the pulley.
SST 09950–50010 (09954–05030, 09551–05010,
09552–05010, 09553–05020)
SST
P18712
12. 2JZ–GE:
REMOVE PS PUMP FRONT BRACKET
Remove the 3 bolts, plate washer and pump front bracket.
P12537
