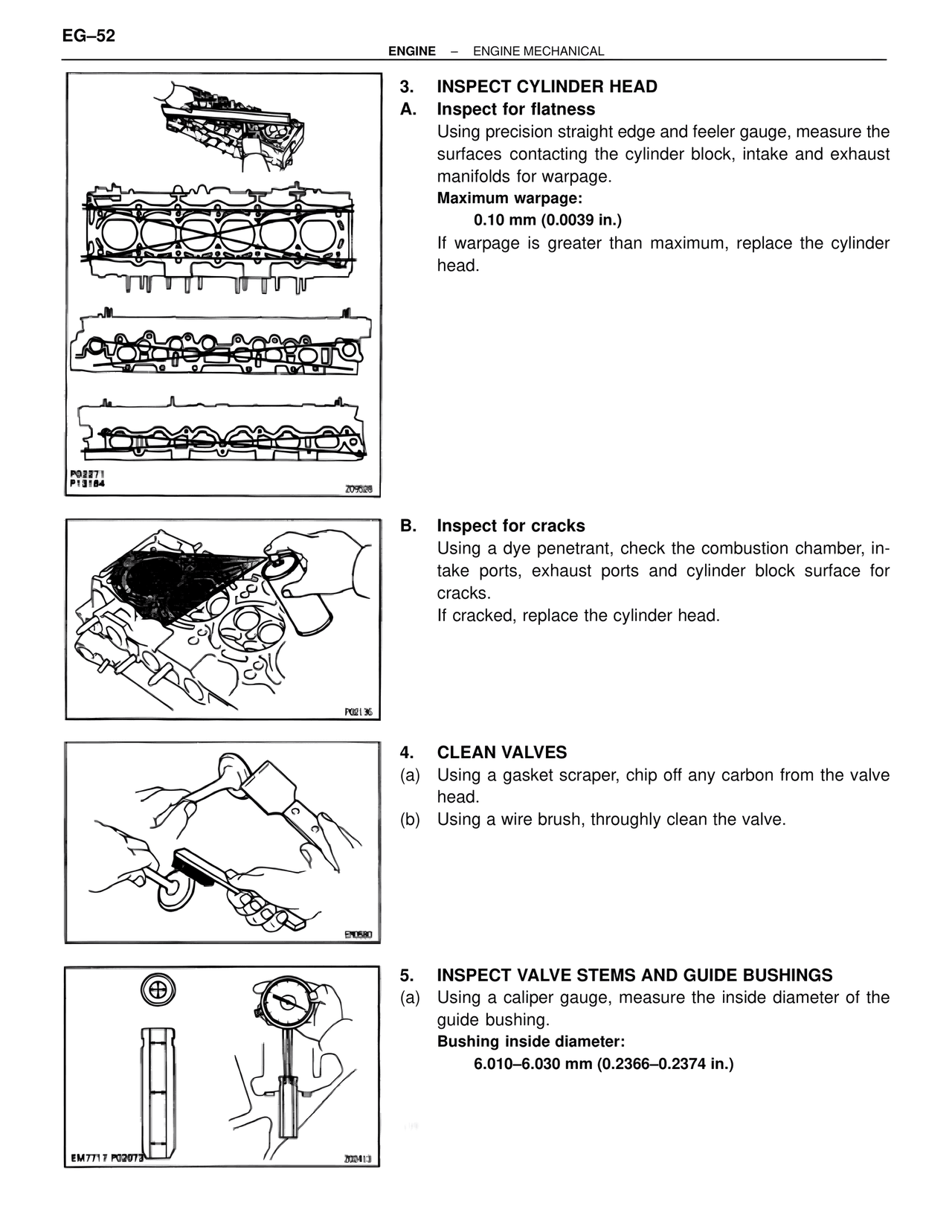

EG–52
ENGINE – ENGINE MECHANICAL
3. INSPECT CYLINDER HEAD
A. Inspect for flatness
Using precision straight edge and feeler gauge, measure the
surfaces contacting the cylinder block, intake and exhaust
manifolds for warpage.
Maximum warpage:
0.10 mm (0.0039 in.)
If warpage is greater than maximum, replace the cylinder
head.
P02271
P13184
209528
B. Inspect for cracks
Using a dye penetrant, check the combustion chamber, in-
take ports, exhaust ports and cylinder block surface for
cracks.
If cracked, replace the cylinder head.
P02136
4. CLEAN VALVES
(a) Using a gasket scraper, chip off any carbon from the valve
head.
(b) Using a wire brush, throughly clean the valve.
EN0580
5. INSPECT VALVE STEMS AND GUIDE BUSHINGS
(a) Using a caliper gauge, measure the inside diameter of the
guide bushing.
Bushing inside diameter:
6.010–6.030 mm (0.2366–0.2374 in.)
EM7717 P02073
202413
