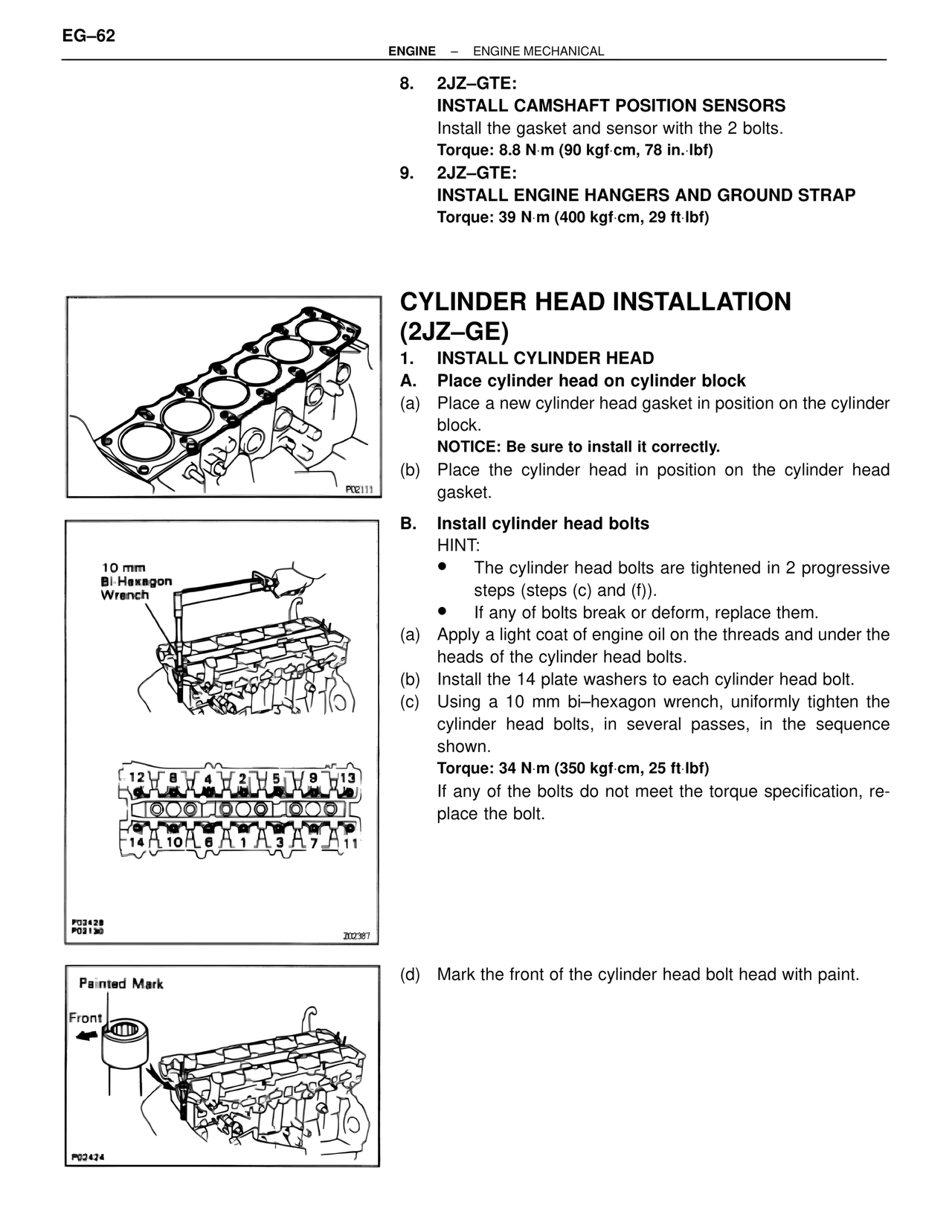

EM/Engine Mechanical — Cylinder Head Installation (2JZ–GE), page 62

EG–62
ENGINE – ENGINE MECHANICAL

8. 2JZ–GTE:
INSTALL CAMSHAFT POSITION SENSORS
Install the gasket and sensor with the 2 bolts.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)

9. 2JZ–GTE:
INSTALL ENGINE HANGERS AND GROUND STRAP
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)

CYLINDER HEAD INSTALLATION
(2JZ–GE)

1. INSTALL CYLINDER HEAD
A. Place cylinder head on cylinder block
(a) Place a new cylinder head gasket in position on the cylinder block.
NOTICE: Be sure to install it correctly.
(b) Place the cylinder head in position on the cylinder head gasket.

B. Install cylinder head bolts
HINT:
• The cylinder head bolts are tightened in 2 progressive steps (steps (c) and (f)).
• If any of bolts break or deform, replace them.
(a) Apply a light coat of engine oil on the threads and under the heads of the cylinder head bolts.
(b) Install the 14 plate washers to each cylinder head bolt.
(c) Using a 10 mm bi–hexagon wrench, uniformly tighten the cylinder head bolts, in several passes, in the sequence shown.
Torque: 34 N·m (350 kgf·cm, 25 ft·lbf)
If any of the bolts do not meet the torque specification, replace the bolt.

10 mm
Bi-Hexagon
Wrench

12  8  4  2  5  9  13
14  10  6  1  3  7  11

P02428
P02130
202387

Painted Mark
Front

P02424

(d) Mark the front of the cylinder head bolt head with paint.
