EG–72

ENGINE – ENGINE MECHANICAL

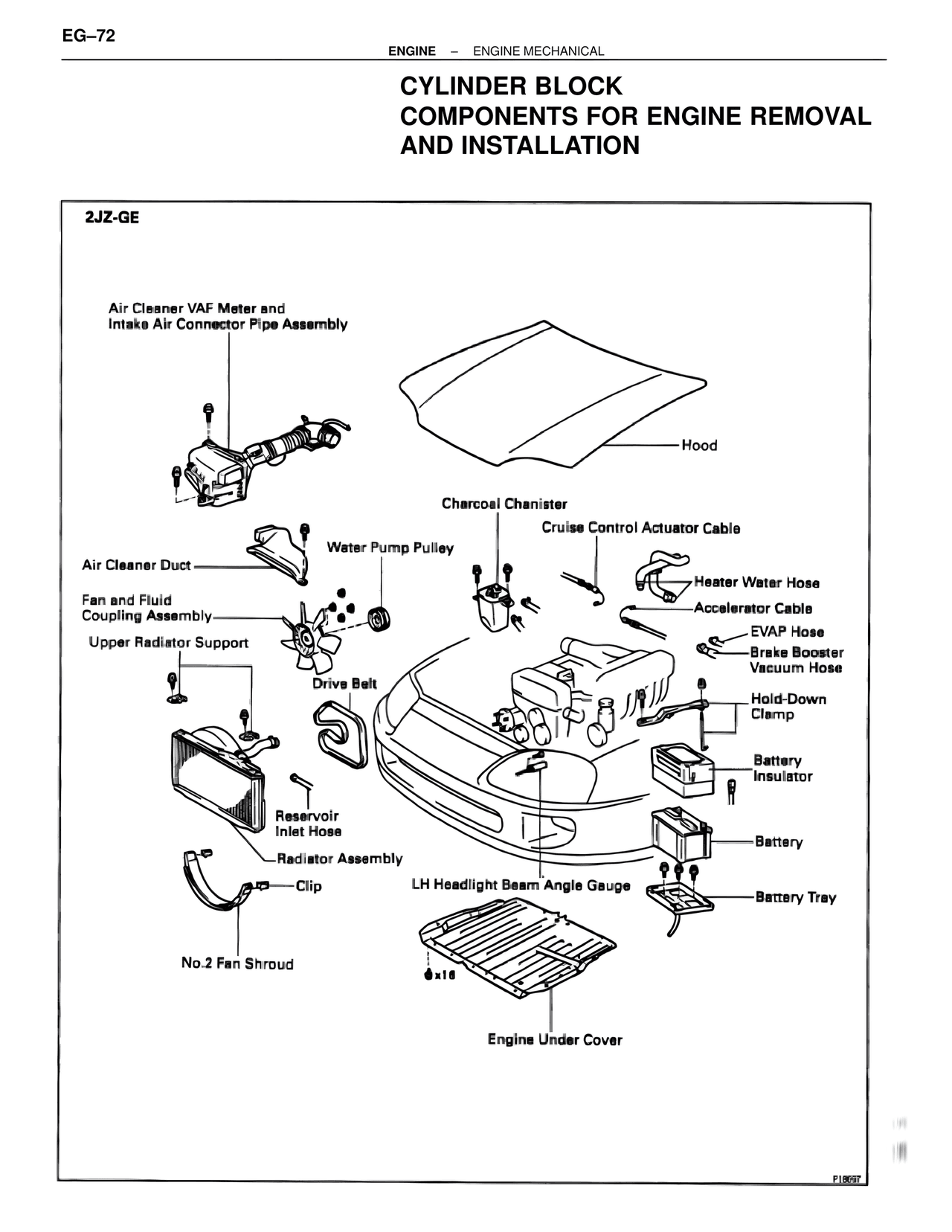

CYLINDER BLOCK
COMPONENTS FOR ENGINE REMOVAL
AND INSTALLATION

2JZ-GE

Air Cleaner VAF Meter and
Intake Air Connector Pipe Assembly

Hood

Charcoal Chanister

Cruise Control Actuator Cable

Water Pump Pulley

Air Cleaner Duct

Heater Water Hose

Fan and Fluid
Coupling Assembly

Accelerator Cable

Upper Radiator Support

EVAP Hose

Brake Booster
Vacuum Hose

Drive Belt

Hold-Down
Clamp

Battery
Insulator

Reservoir
Inlet Hose

Battery

Radiator Assembly

Clip

LH Headlight Beam Angle Gauge

Battery Tray

No.2 Fan Shroud

×18

Engine Under Cover
