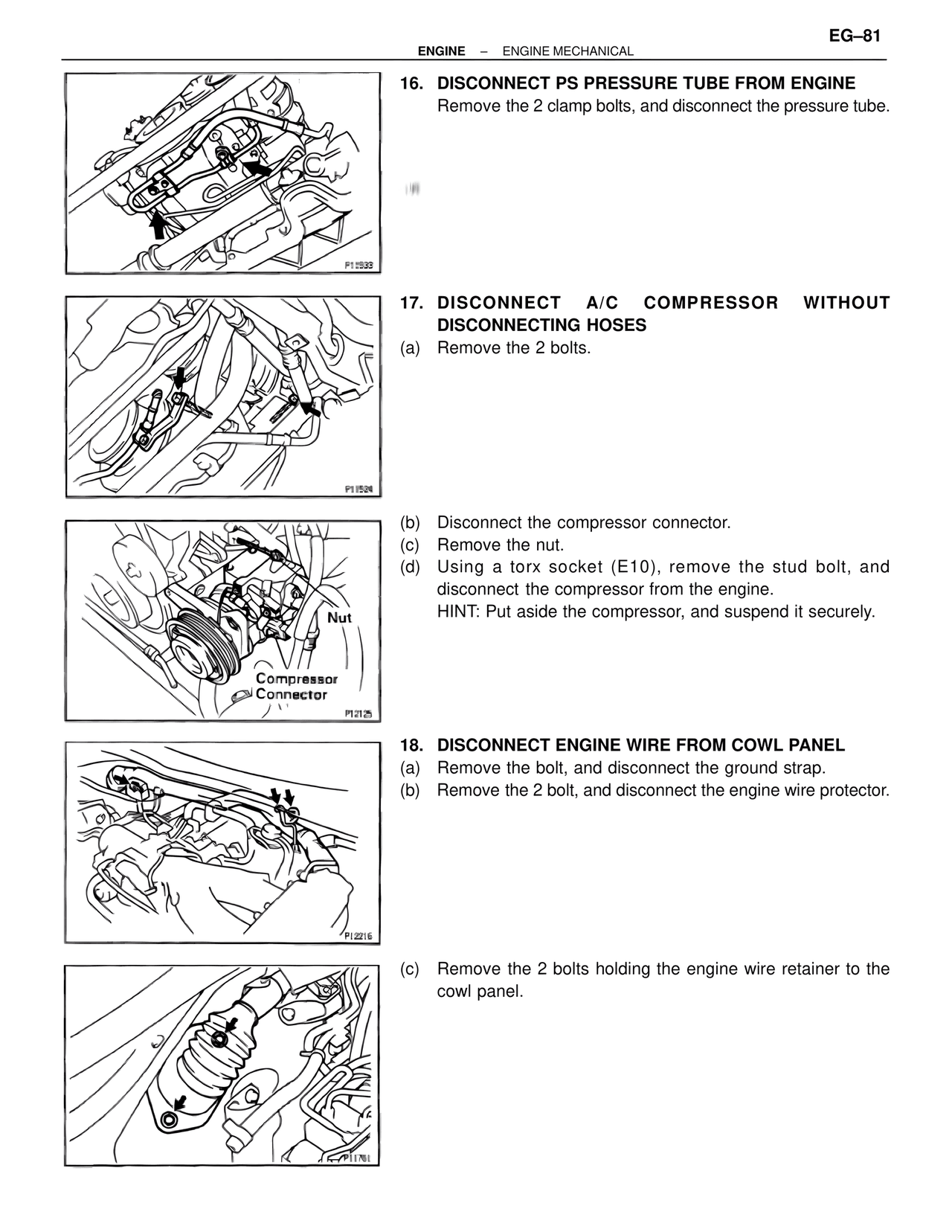

EG–81
ENGINE – ENGINE MECHANICAL
16. DISCONNECT PS PRESSURE TUBE FROM ENGINE
Remove the 2 clamp bolts, and disconnect the pressure tube.
P11533
17. DISCONNECT A/C COMPRESSOR WITHOUT
DISCONNECTING HOSES
(a) Remove the 2 bolts.
P11524
(b) Disconnect the compressor connector.
(c) Remove the nut.
(d) Using a torx socket (E10), remove the stud bolt, and
disconnect the compressor from the engine.
HINT: Put aside the compressor, and suspend it securely.
Nut
Compressor
Connector
P12125
18. DISCONNECT ENGINE WIRE FROM COWL PANEL
(a) Remove the bolt, and disconnect the ground strap.
(b) Remove the 2 bolt, and disconnect the engine wire protector.
P12216
(c) Remove the 2 bolts holding the engine wire retainer to the
cowl panel.
P11761
